1.- GENERAL CHARACTERISTICS

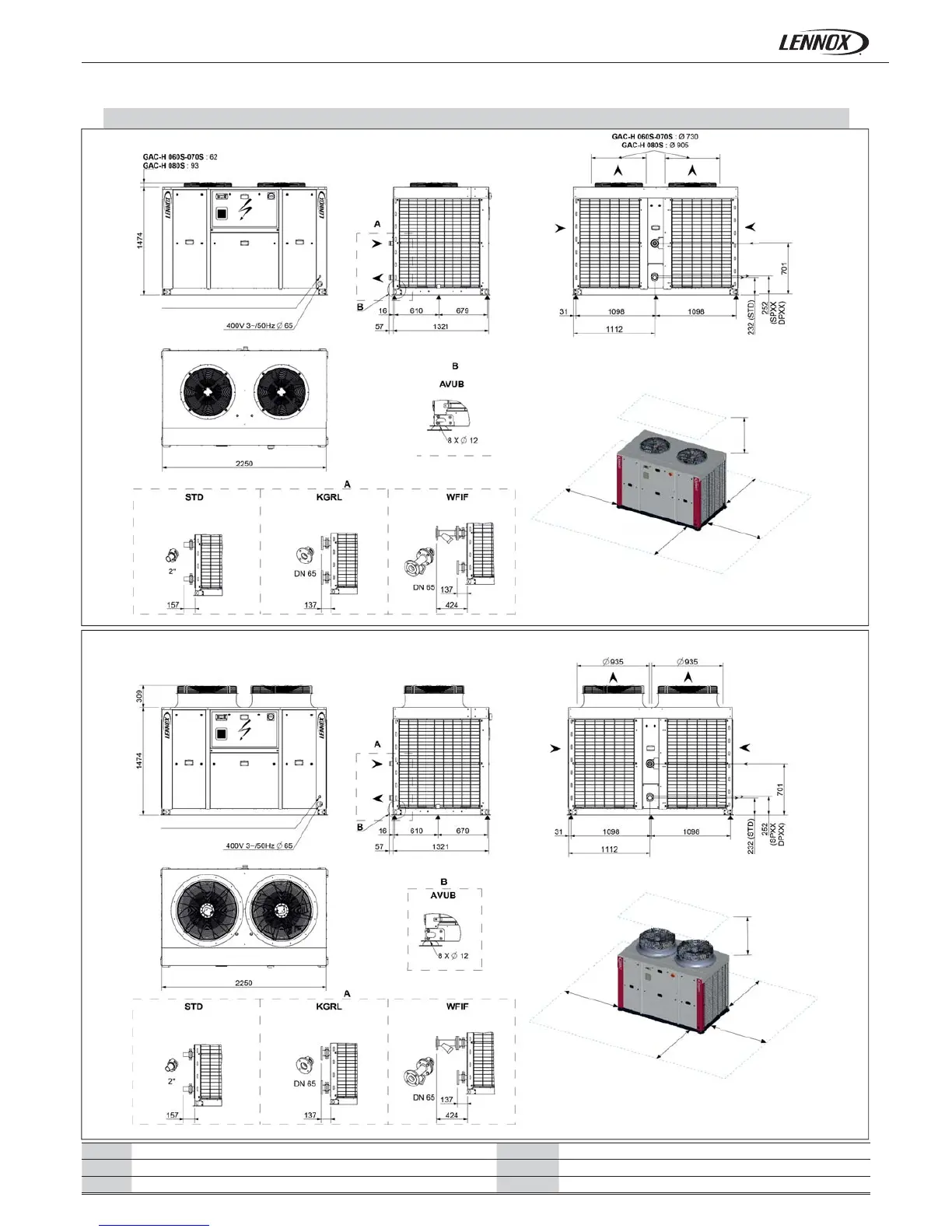

1.9.- DIMENSIONS
STANDARD VERSION
UNIT WITH STANDARD EC FANS (SEAS) OR HIGH PRESSURE EC FANS (HIPF)
All dimensions in mm
All dimensions in mm
Controller connection Ø 29
Controller connection Ø 29
3
meters
1
meter
1
meter
1
meter
1
meter
3
meters
1
meter
1
meter
1
meter
1
meter
Victaulic or welded connection Flange connection Flange connection
Victaulic or welded connection Flange connection Flange connection
Hydraulic module with single pump Flange connection
Hydraulic module with twin pum Water fi lter (supplied loose)
Rubber anti-vibration mounts
