Installation manual /eCOMFORT-MIL150E-0916 / 05/2017
1.- GENERAL CHARACTERISTICS

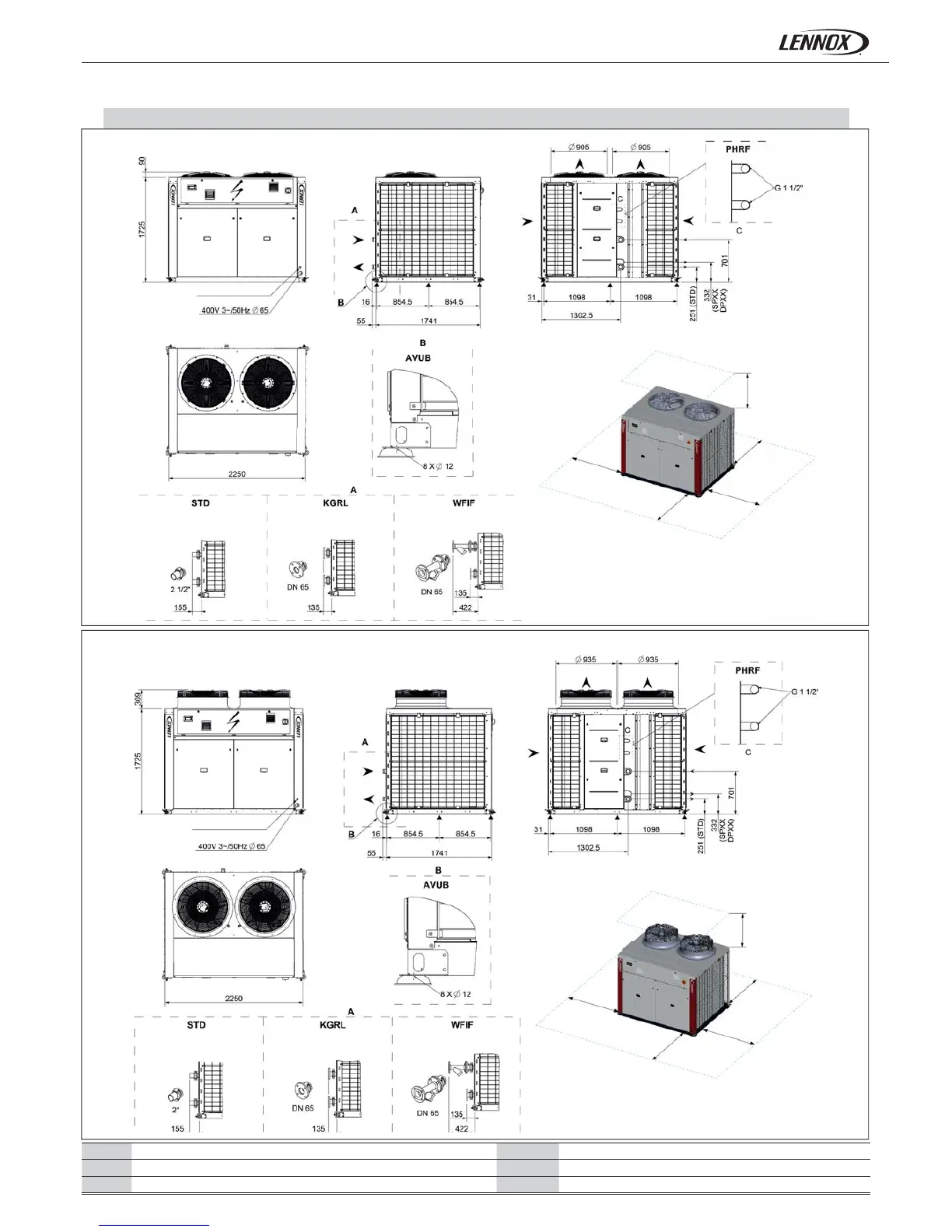

1.9.- DIMENSIONS
STANDARD VERSION
UNIT WITH STANDARD EC FANS (SEAS) OR HIGH PRESSURE EC FANS (HIPF)
All dimensions in mm
All dimensions in mm
Hydraulic module with single pump Flange connection
Hydraulic module with twin pum Water fi lter (supplied loose)
Rubber anti-vibration mounts Domestic hot water supply : desuperheater
Victaulic or welded connection Flange connection Flange connection
5
meters
1,5
meters
1,5
meters
1,5
meters
1,5
meters
Victaulic or welded connection Flange connection Flange connection
5
meters
1,5
meters
1,5
meters
1,5
meters
1,5
meters
Controller connection Ø 29
Controller connection Ø 29
