Lennox icomfort User Manual

FEATURES
DIAGNOSTICS
Allows installer to run diagnostic tests on any icomfort
enabled product.
HP
XP19−060−230−
06
5809K00015
AIR HANDLER
CBX32MV−60
5809K00020
run diagnostics on:
select device to run
diagnostics on
select
diagnostics

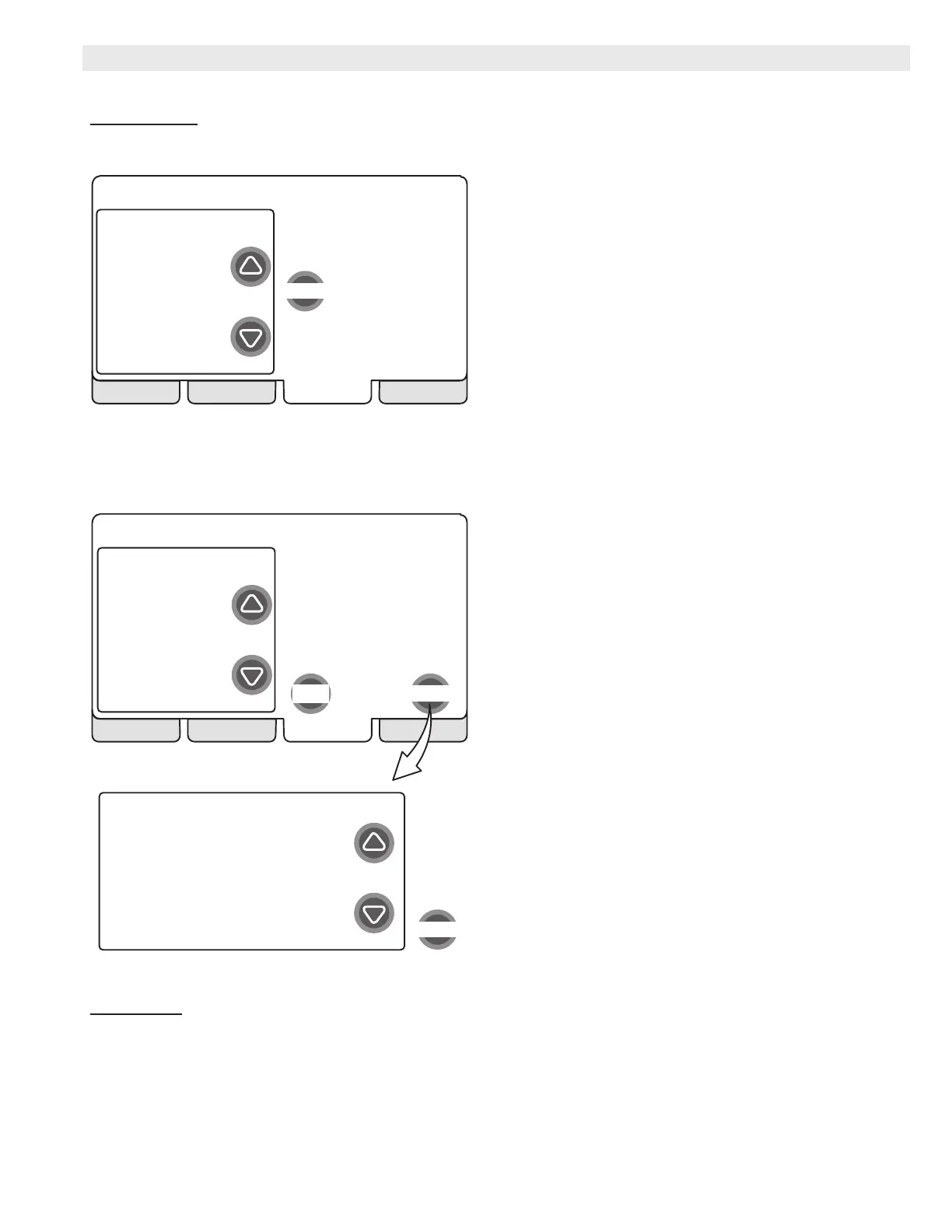

Use the up/down arrow buttons to highlight and
press select and start to run diagnostics on selected
equipment.
Screen will display “DIAGNOSTICS IN PROGRESS . .”
and will show a list of values and conditions.
HP
XP19−060−230−
06
5809K00015
AIR HANDLER
CBX32MV−60
5809K00020
start
remove
run diagnostics on:
HP
select type of device to run
diagnostics on
diagnostics
Line Voltage 220 volts
24VAC Voltage 24 volts
Y1 − Output On
PSC Fan Relay Closed
ECM Fan 1 On
ECM Fan 2 On
Y2 Solenoid On
HP
Diagnostics
done
Use the up/down arrow buttons to scroll through the
availbale information.
EQUIPMENT
The equipment tab allows the same equipment setting
adjustments as in the setup tab, see System Devices,
page 4.
