icomfort™ Communicating Control System / Page 4

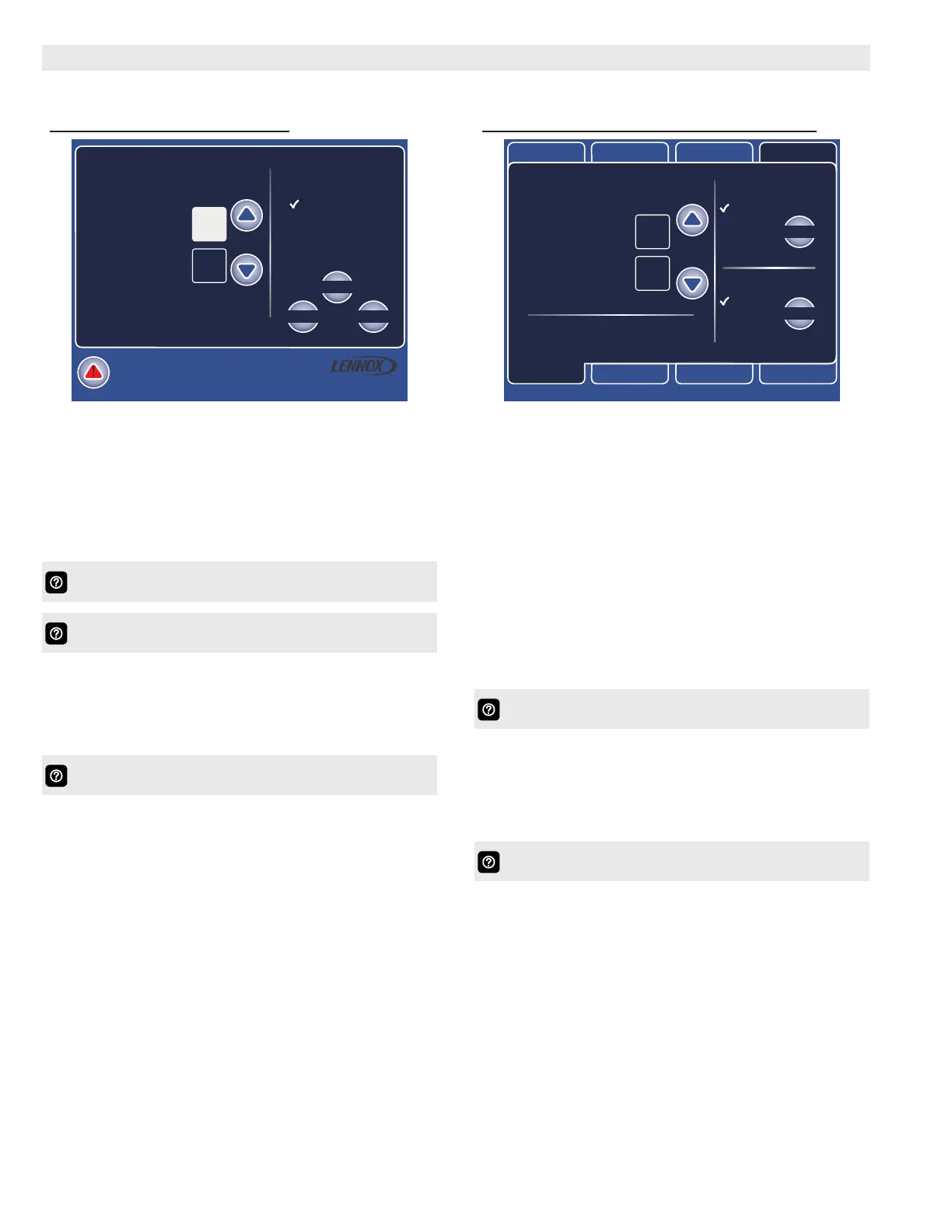

HOME SCREEN (PROGRAM ON)
heat to
63
current temp
indoors conditions
humidity 45% (OK)
70
press for more
cool to
85
set
set hold
1 hour
8 hours
24 hours
until next pgm.
custom time
2 hours
select
set cancel
January 26, 2010 12:00 AM
Indoor Conditions
• Large display of current indoor temperature (°F or °C)
• Current heating setpoint temperature (heat to)
• Current cooling setpoint temperature (cool to)
• Raise / Lower temperature setting arrows (up / down
arrows) to set heating or cooling setpoints indenitely
(program off).
• Humidity settings (humidity is 45% OK)
• System Mode (system is heating / cooling)
• Program Mode (program is off, program is on)
• Service Alerts (triangle symbol). Touch for details.
If program is “on” screen displays adjustable set hold time
(1, 2, 8, 24 hours, until next program or custom set time)
Both setpoint temperatures and adjustment arrows are
displayed if System is set to Heat/Cool mode.
Press for more displays Indoor Settings (and dashboard)
screen.
FEATURES
USER SETTINGS
INDOOR SETTINGS AND USER DASHBOARD
weather HELP
indoor
alerts
humidity
HOMEzonesprograms
indoor
settings
fan settings
current temp
temperature settings
heat to
program is ON
70
63
cool to
85
set
system settings
cool only
heat & cool
heat only
off
on
auto
circulate
select
select
January 26, 2010 12:00 AM
Temperature Settings
• Large display of current indoor temperature (°F or °C)
• Current heating setpoint temperature (heat to)
• Current cooling setpoint temperature (cool to)
• Raise / Lower temperature setting arrows (up / down
arrows) to set heating or cooling setpoints indenitely
System Settings
• Heat & Cool
• Cool Only
• Heat Only
• Emergency Heat (if air handler or dual fuel system)
• Off
Fan Settings
• Auto
• On
• Circulate
Selecting Heat Only or Cool Only only displays those
setpoints.
Selecting other tabs on screen displays different
Dashboard Tab screens.
