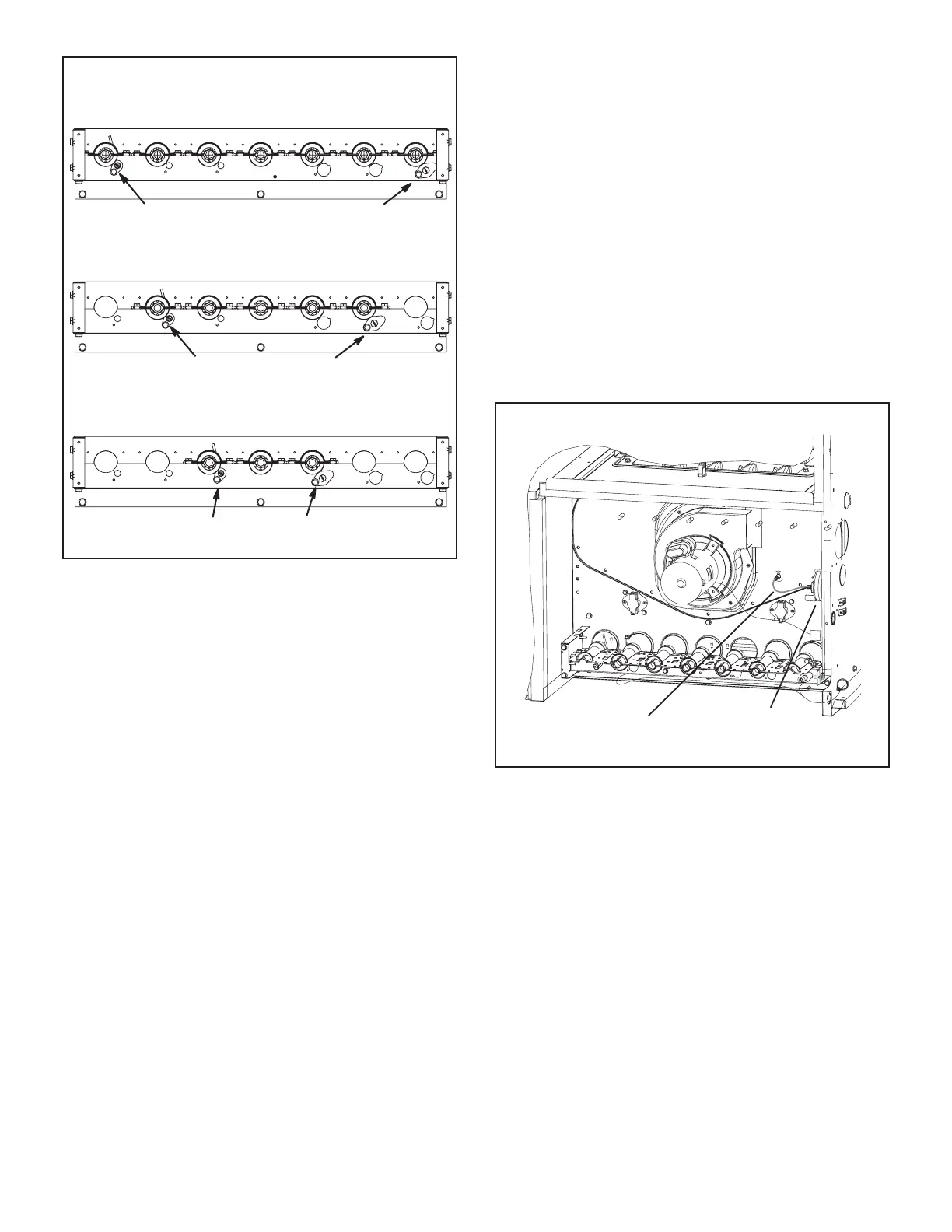

BURNER ORIENTATION
150,000 BTUH - 7 BURNERS
108,000 BTUH - 5 BURNERS
65,000 BTUH - 3 BURNERS
SENSOR IGNITOR
SENSOR IGNITOR
SENSOR IGNITOR
FIGURE 17
5-Flame Roll-out Limit Switch S47
-
perature limit located just above the burner air intake
opening in the burner enclosures. The switch is wired to
the A3 ignition controller. When the limit switch senses
-
troller immediately closes the gas valve. Limit is factory
preset to open at 340 F + 16 F on a temperature rise on all
6-Combustion Air Prove Switch S18
Prove switch S18 is a SPST N.O. switch located to the
monitors combustion air inducer operation. Switch S18 is
wired to A3 ignition controller which checks its status upon
a call for heating. The switch closes at negative 0.10”W.C.
pressure fall and switch actuation allows the ignition se-
quence to continue (proves, by closing, that the combus-
tion air inducer is operating before allowing the gas valve
to open.) The combustion air prove switch is factory set
and not adjustable.
7-Combustion Air Motor Capacitor C3
The combustion air inducer motors in all LGM units re-
quire run capacitors. Capacitor C3 is connected to com-
bustion air inducer B6. Ratings will be on side of capacitor
or combustion air motor nameplate.
COMBUSTION AIR PROVING SWITCH
AIR
TUBING
S18
COMBUSTION
AIR PROVING
SWITCH
FIGURE 18
