100
Installation and Maintenance
Service Manual
screws
screws
screws
screws
screws
screws
screws
electric box assy
electric box
cover
clasp(left)
clasp(right)

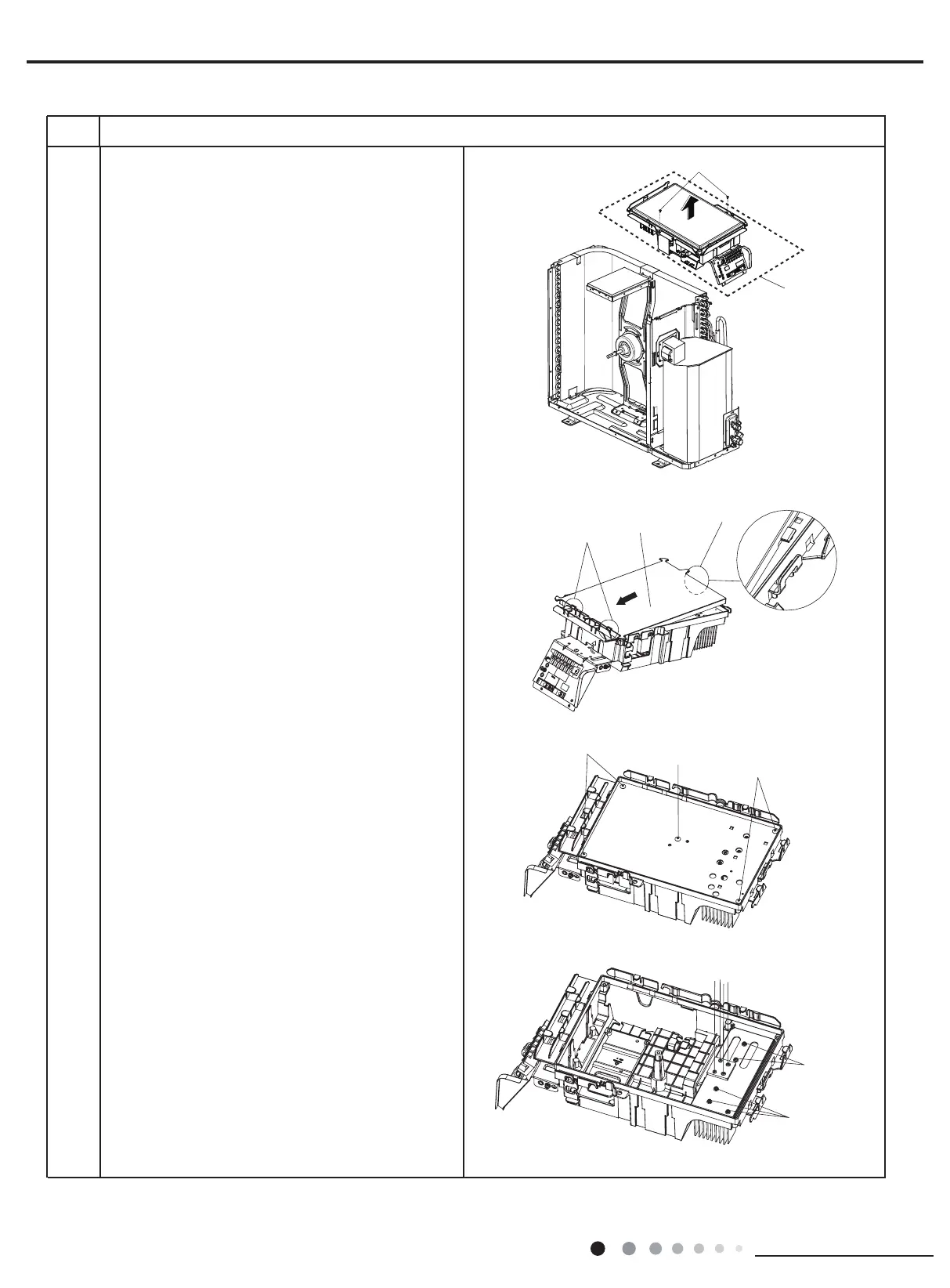

Remove the 2 screws fixing the electric box
assy and then lift the electric box assy upwards
to remove it.
d
e
f
g
Push the electric box cover in the direction
of arrow to make the clasp at the right side
separate from the groove; then pull it in the
opposite direction to make the clasp at the lift
side separate from the groove and then remove
the electric box cover.
Remove the 5 screws connecting the mainboard
and then remove the mainboard.
Remove the 9 screws fixing the radiator and
then remove the radiator.
ProcedureStep
To Next Page
