87
Installation and Maintenance
Service Manual

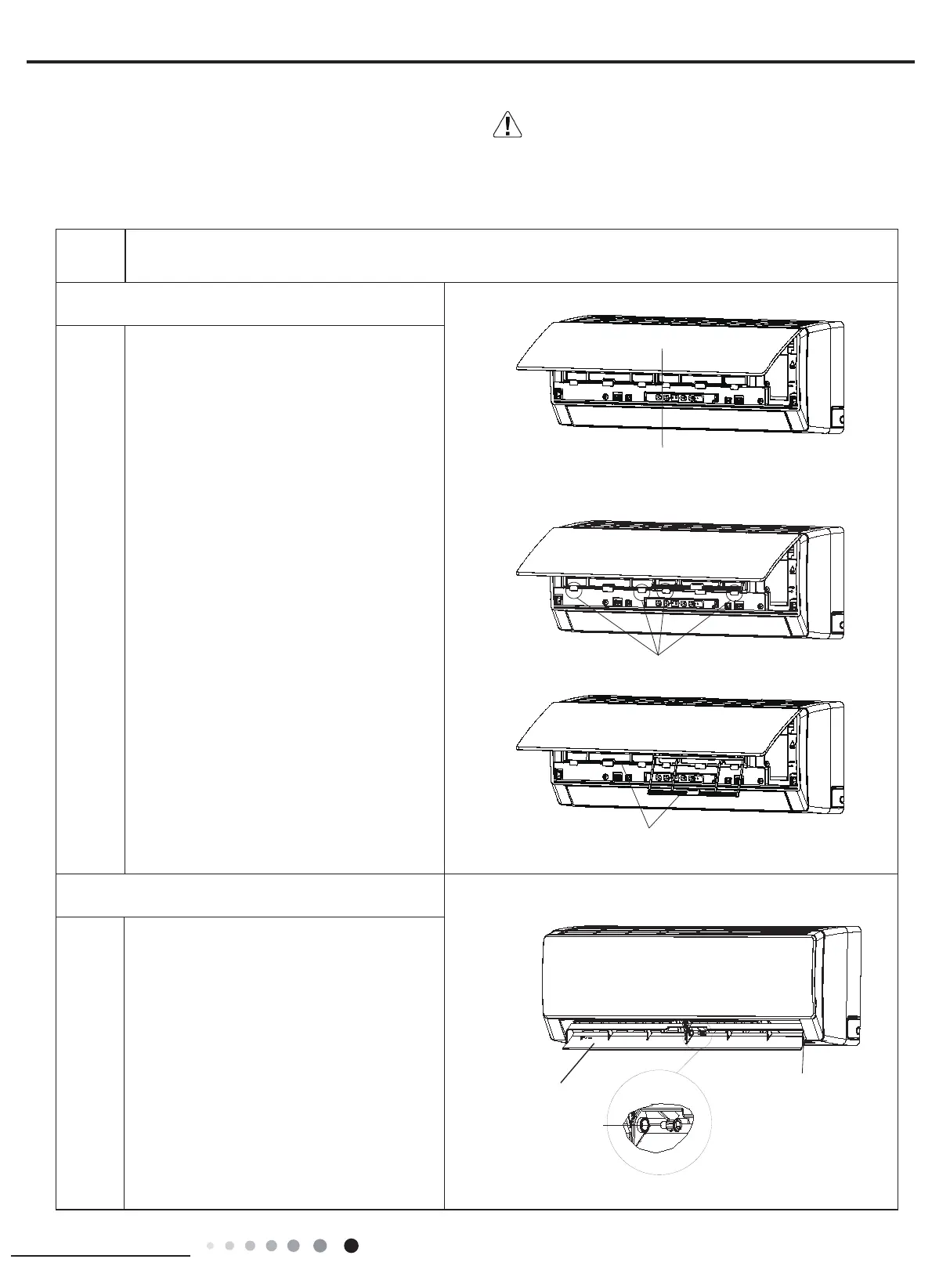

11. Removal Procedure
11.1 Removal Procedure of Indoor Unit
Caution: discharge the refrigerant
completely before removal.
ProcedureStep
1. Remove lter
2. Remove horizontal louver
a
b
Panel
Clasp
left lter and right ler
Axile bush
Open the panel.
Loosen the clasp shown in the fig and
then pull the left filter and right filer
outwards to remove them.
Push out the axile bush on horizontal
louver. Bend the horizontal louver with
hand and then separate the horizontal
louver from the crankshaft of step motor
to remove it.
Horizontal louver Location of step motor
LNINVC052 LNINVC063
To Next Page
