6. Function and Control
6.1 Remote Controller Introduction

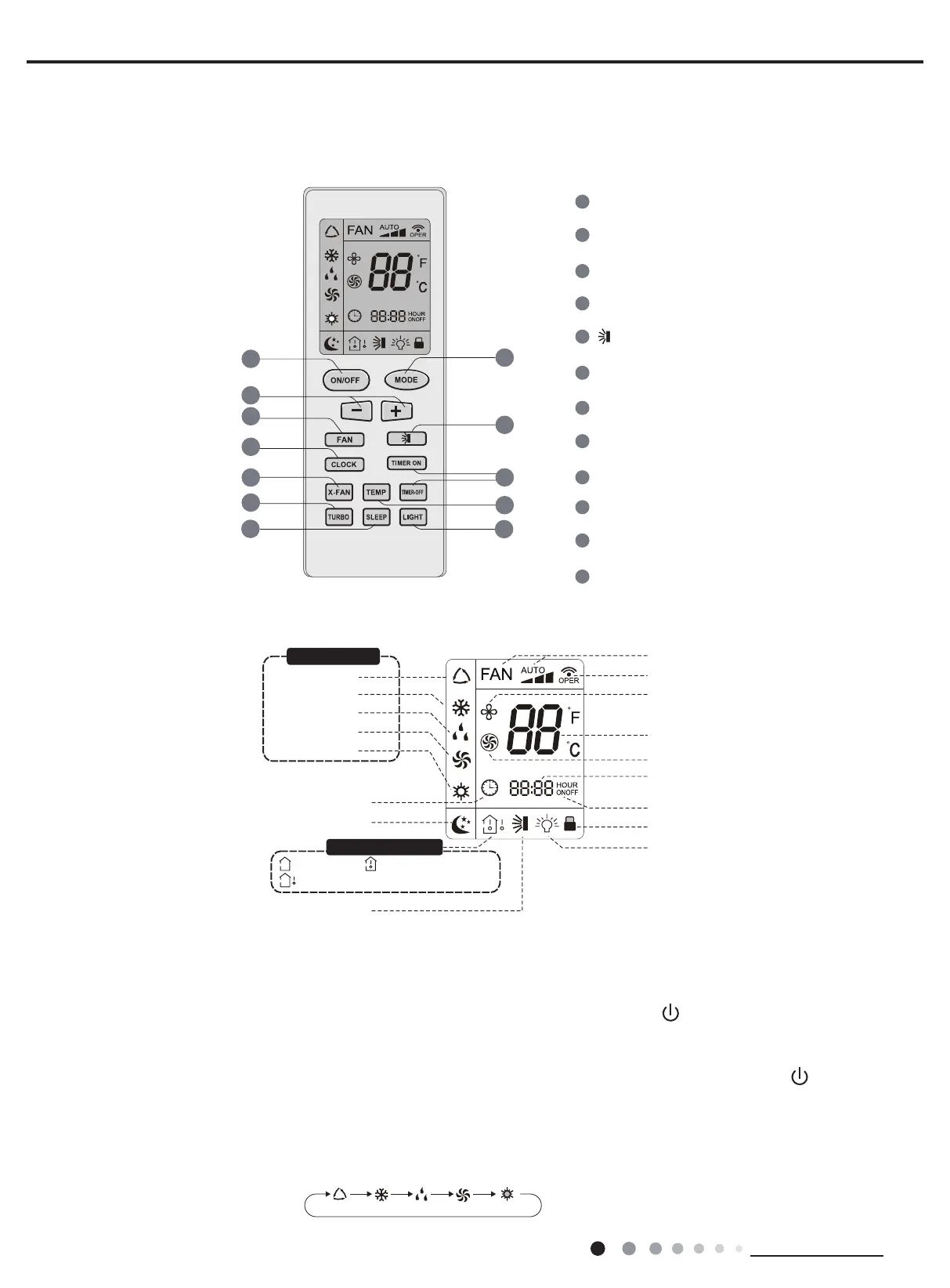

Buttons on Remote Controller
Introduction for Icons on Display Screen
Introduction for Buttons on Remote Controller
Auto mode
Cool mode
Heat mode
Fan mode
Dry mode
Clock
Light
Child lock
TIMER ON/TIMER OFF
Up&down swing
:Indoor ambient temp.
:Set temp.
:Outdoor ambient temp.
Sleep mode
Set temperature
Send signal
Turbo mode
Set time
X-fan mode
Set fan speed
ON/OFF Button
2
3
1
5
6
4
8
9
7
11
12
10
MODE Button
+/- Button
FAN Button
TIMER ON/TIMER-OFF Button
X-FAN Button
TEMP Button
LIGHT Button
SLEEP Button
CLOCK Button
TURBO Button
Button
2
6
8
3
9
10
7
5
12
11
4
1
Operation mode
Temp. display type
1. ON/OFF Button
Press this button can turn on or turn off the air conditioner. After turning on the air conditioner, operation indicator " " on indoor
unit’s display is ON (green indicator. The colour is different for different models), and indoor unit will give out a sound.
2. MODE Button
Press this button to select your required operation mode.
Note:After putting through the power, the air conditioner will give out a sound. Operation indictor " " is ON (red indicator). After that,
you can operate the air conditioner by using remote controller.
AUTO COOL DRY FAN HEAT
Operation mode
Temp. display type
