97
Installation and Maintenance
Service Manual
big handle
screw
top panel
11.2 Removal Procedure of Outdoor Unit
Warning: Be sure to wait for a minimum of 20 minutes after
turning off all power supplies and discharge the refrigerant
completely before removal.
Remove the screw connecting the big handle
and right side plate, and then remove the big
handle.
Remove the screw connecting the valve cover
and right side plate, and then remove the valve
cover.
Remove the screws connecting the top cover
with outer case, right side plate and left side
plate; lift the top cover upwards to remove it.
cabinet
right side plate
a
b
right side
plate

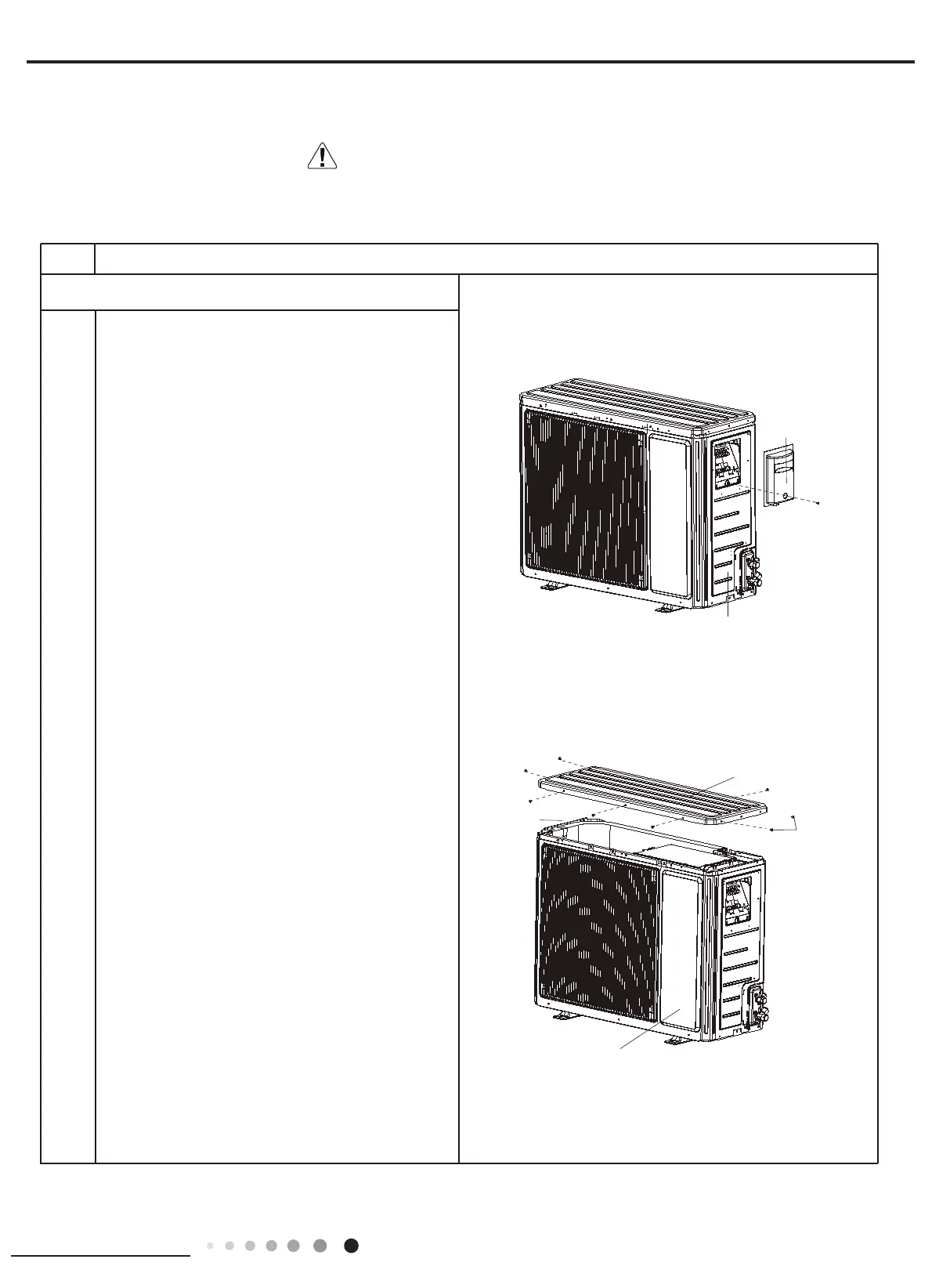

1. Remove big handle,valve cover and top cover
screw
Procedure
Step
LNINVC052 LNINVC063
To Next Page
