cross flow louver
screws
screws
evaporator mounted plate

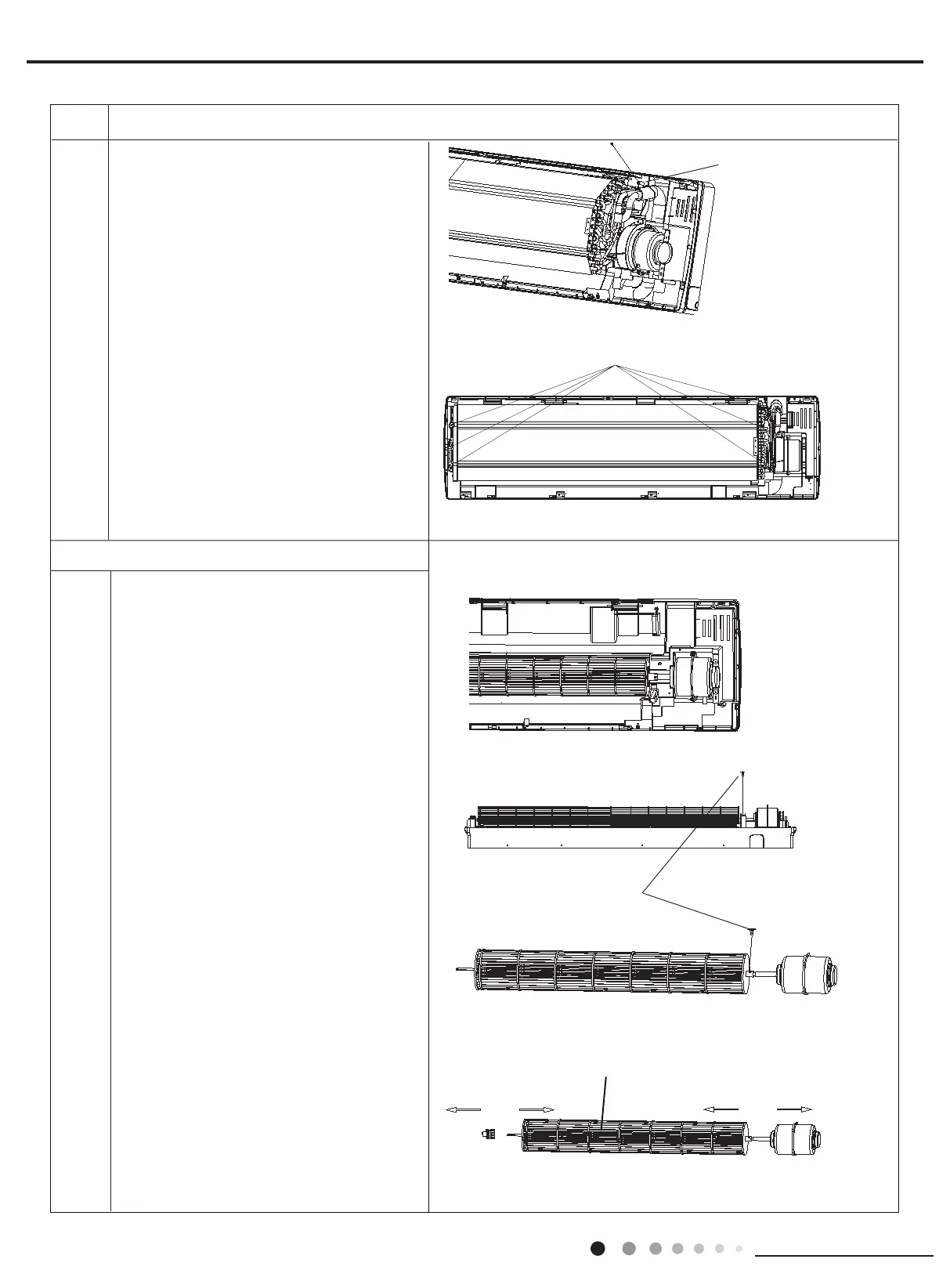

Procedure
Steps
7.Remove cross ow louver and motor
Unscrew the screws fixing evaporator
mounted plate,then remove the evaporator
mounted plate.
Unscrew the 6 screws fixing evaporator
adjust the pipe slightly to remove the
evaporator.
Remove the connection pipe of indoor and
outdoor unit and wire.
Unscrew the screws of cross flow louver
and motor.
Separate the cross flow louver,motor and
bearing block.
