Lennox LNINVC063 User Manual

95
Installation and Maintenance
Service Manual
d
ProcedureSteps
a
b
screws
screws
pipe plate
connection pipe and wire
water tray

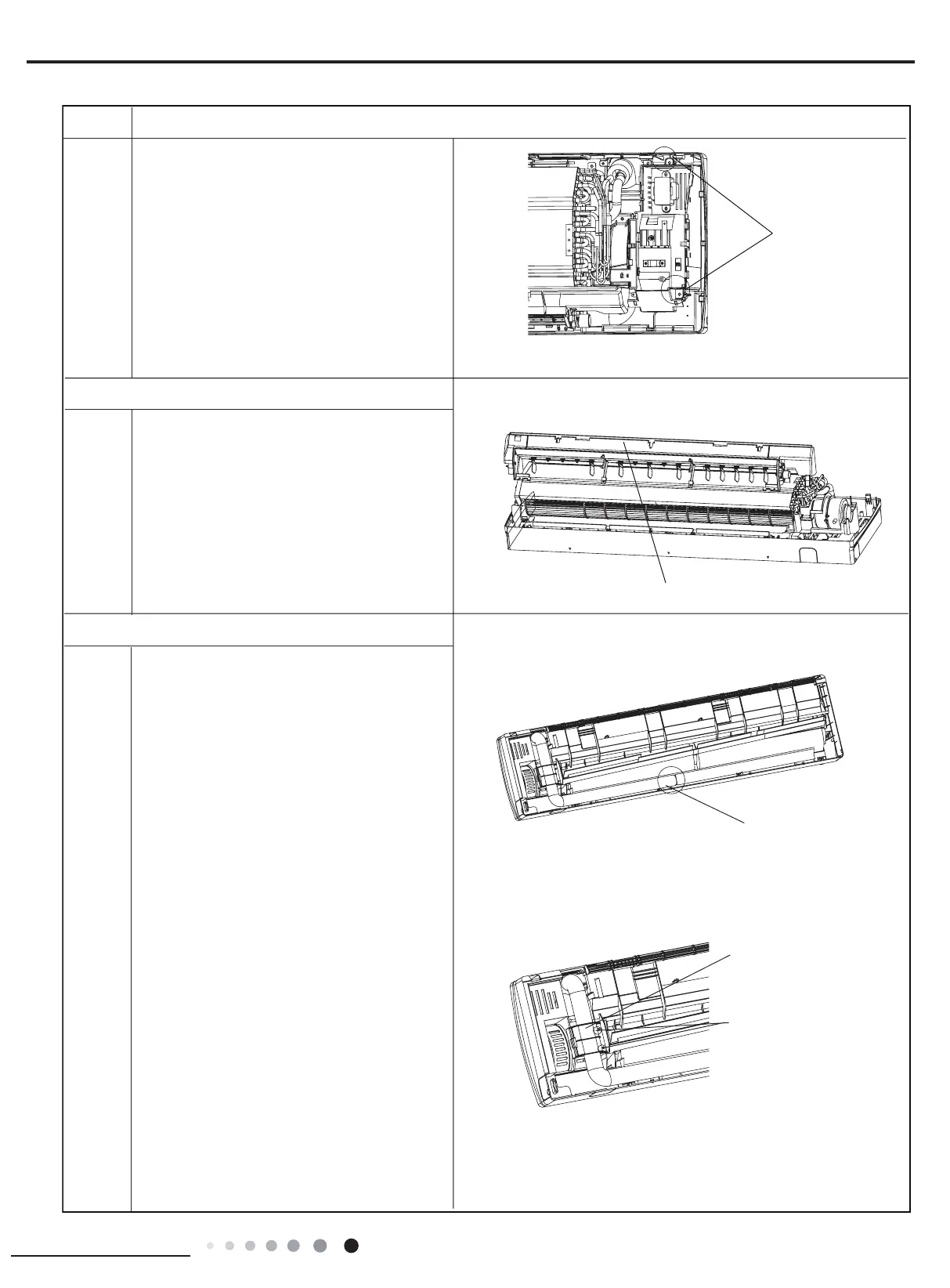

5.Remove watertray
6.Remove eveporator
Unscrew the 2 screws fixing electric box
assy to remove the electric box assy.
Break out the clasps fixing water tray to
remove the water tray.
Remove the connection pipe of indoor and
outdoor unit and wire.
Unscrew the 2 screws fixing pipe plate to
remove the pipe plate.

Lennox LNINVC063 Specifications

General

Brand	Lennox
Model	LNINVC063
Category	Air Handlers
Language	English
