Installation and Maintenance
Service Manual
a
b

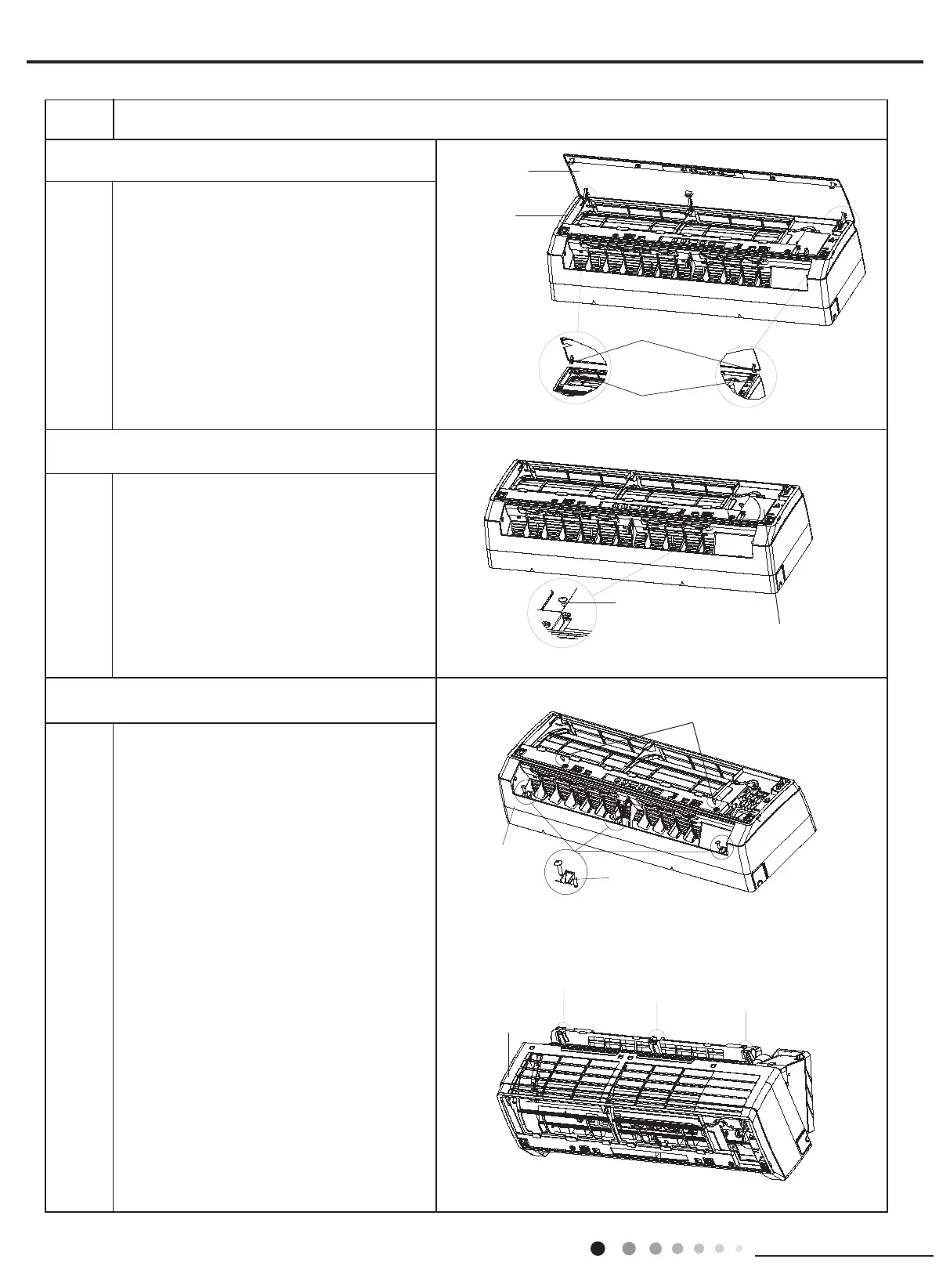

Open the front panel; separate the panel
rotation shaft from the groove fixing the
front panel and then removes the front
panel.
Note:
The display of some models is fixed on
the panel; unscrew the screws xing the
display on the panel before removing the
panel.
Remove the screws on the electric box
cover to remove the electric box cover.
Electric box cover
Screws
Panel
Front panel
Panel rotation
Groove
3. Remove panel
4. Remove electric box cover
Front case
sub-assy
Front case
sub-assy
Left clasp
Middle clasp
Right clasp
Screw caps
Screws
Remove the screws xing front case.
Note:
1.Open the screw caps before removing
the screws around the air outlet.
2.The quantity of screws fixing the front
case sub-assy is different for different
models.
Loosen the clasps at left, middle and right
sides of front case. Life the front case
sub-assy upwards to remove it.
5. Remove front case sub-assy
ProcedureStep
