106
Installation and Maintenance
Service Manual
1
2
fan motor fixing frame

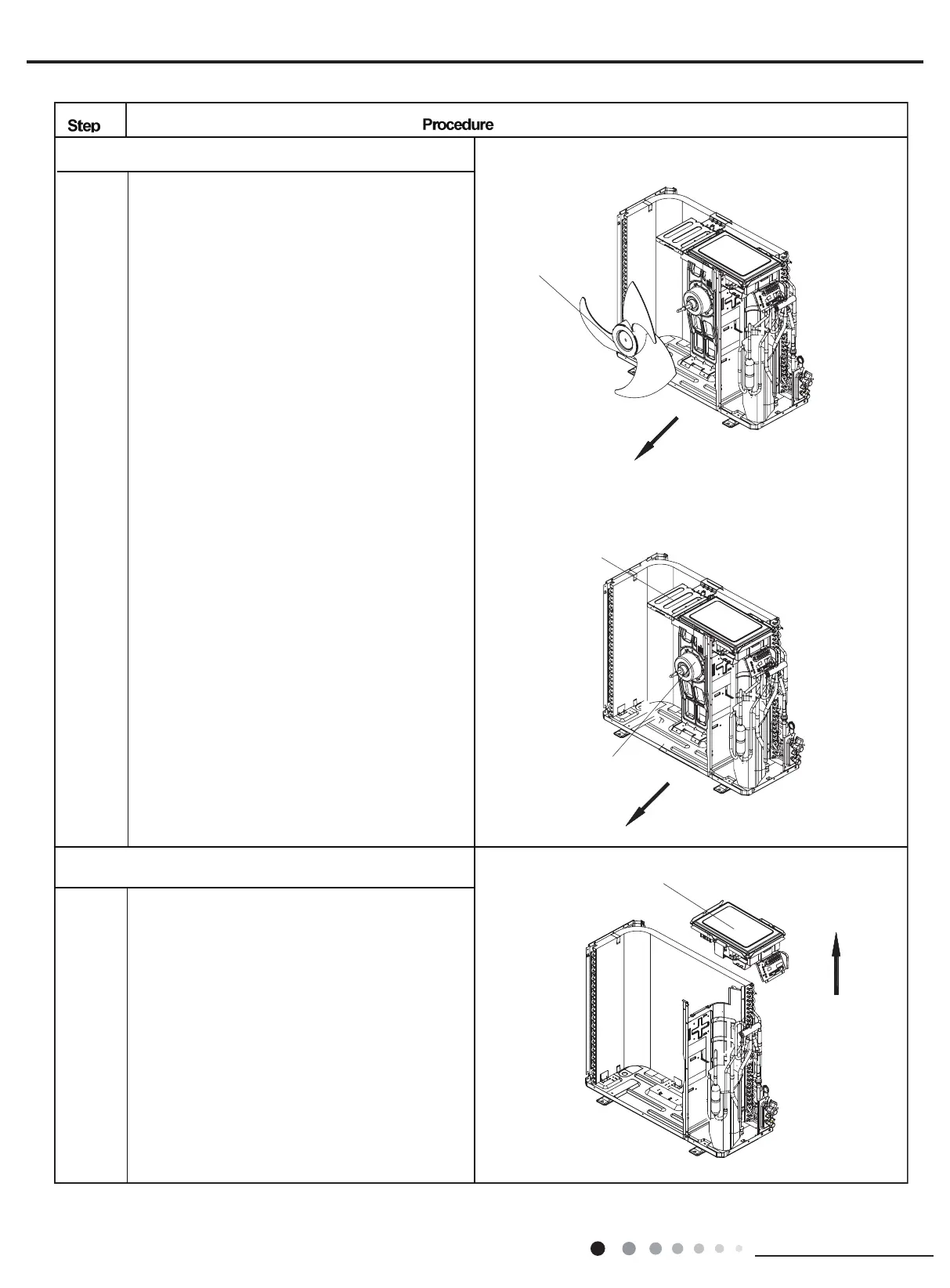

4. Remove fan motor
5. Remove electric box
Remove the screws fixing the electric box
sub-assy; loosen the wire bundle; pull out
the wiring terminals and then pull the
electric box upwards to remove it.
Remove the 4 tapping screws fixing the
motor; disconnect the leading wire insert of
the motor and then remove the motor.
Remove the 2 tapping screws fixing the
motor support and then pull the motor
support upwards to remove it.
Remove the nuts fixing the blade and then
remove the axial flow blade.
axial flow blade
electric box
fan motor
To Next Page
