108
Installation and Maintenance
Service Manual

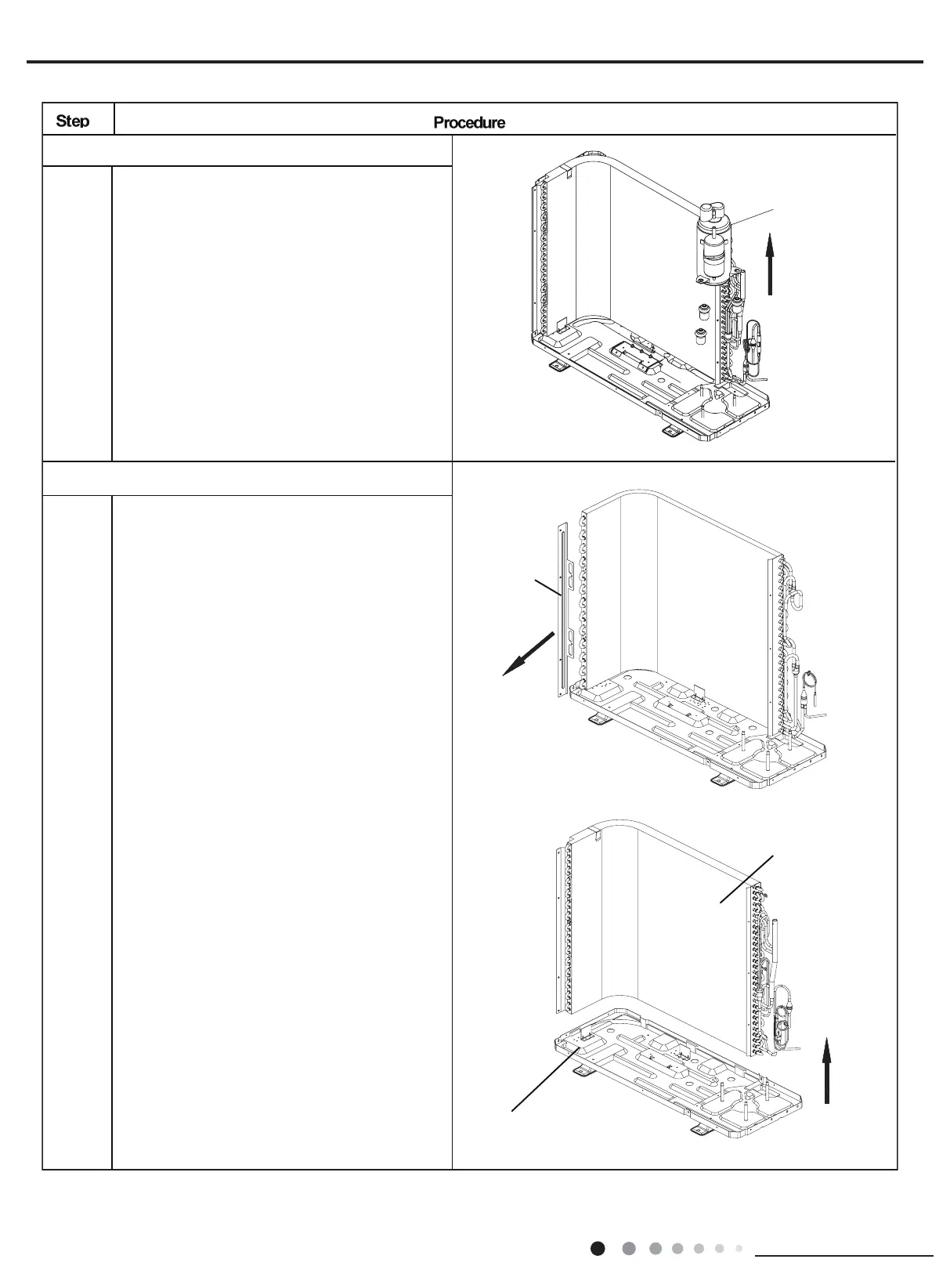

Remove the 3 foot nuts fixing the compressor
and then remove the compressor.
Remove the screws connecting the support
(condenser) and condenser assy,and then
remove the support(condenser).
9. Remove compressor
compressor
10.Remove condenser sub-assy
1
support
2
Dissemble the chassis sub-assy and condenser
sub-assy.
condenser sub-assy
chassis sub-assy
