16
Technical Information
Service Manual

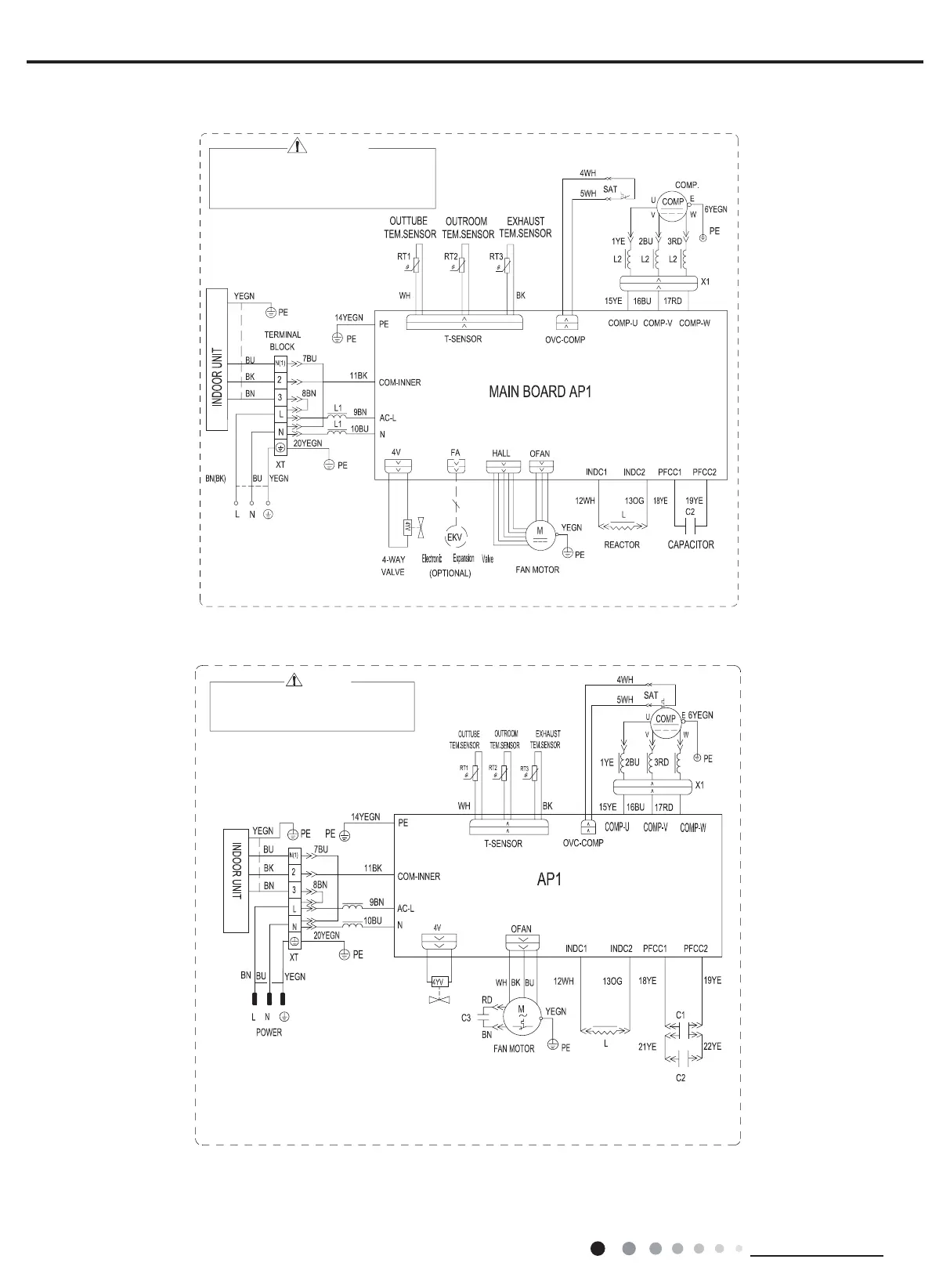

These wiring diagrams are subject to change without notice; please refer to the one supplied with the unit.
Model:LNINVC063
Models:LNINVC070 LNINVC080
Please don't touch any terminal when
N(DC-) at AP1 is higher than 30V to
prevent the risk of electrical shock!
the voltage of terminal P(DC+) and
WARNING
POWER
C3:CBB61
C1,C2:CBB65
OG:ORANGE
voltage of terminal P(DC+) and N(DC-) at
of electrical shock!
AP1 is higher than 30V to prevent the risk
Please don't touch any terminal when the
WARNING
BN:BROWN
BU:BLUE
BK:BLACK
RD:RED
YE:YELLOW
WH:WHITE
YEGN:YELLOW GREEN
