Technical Information
Service Manual

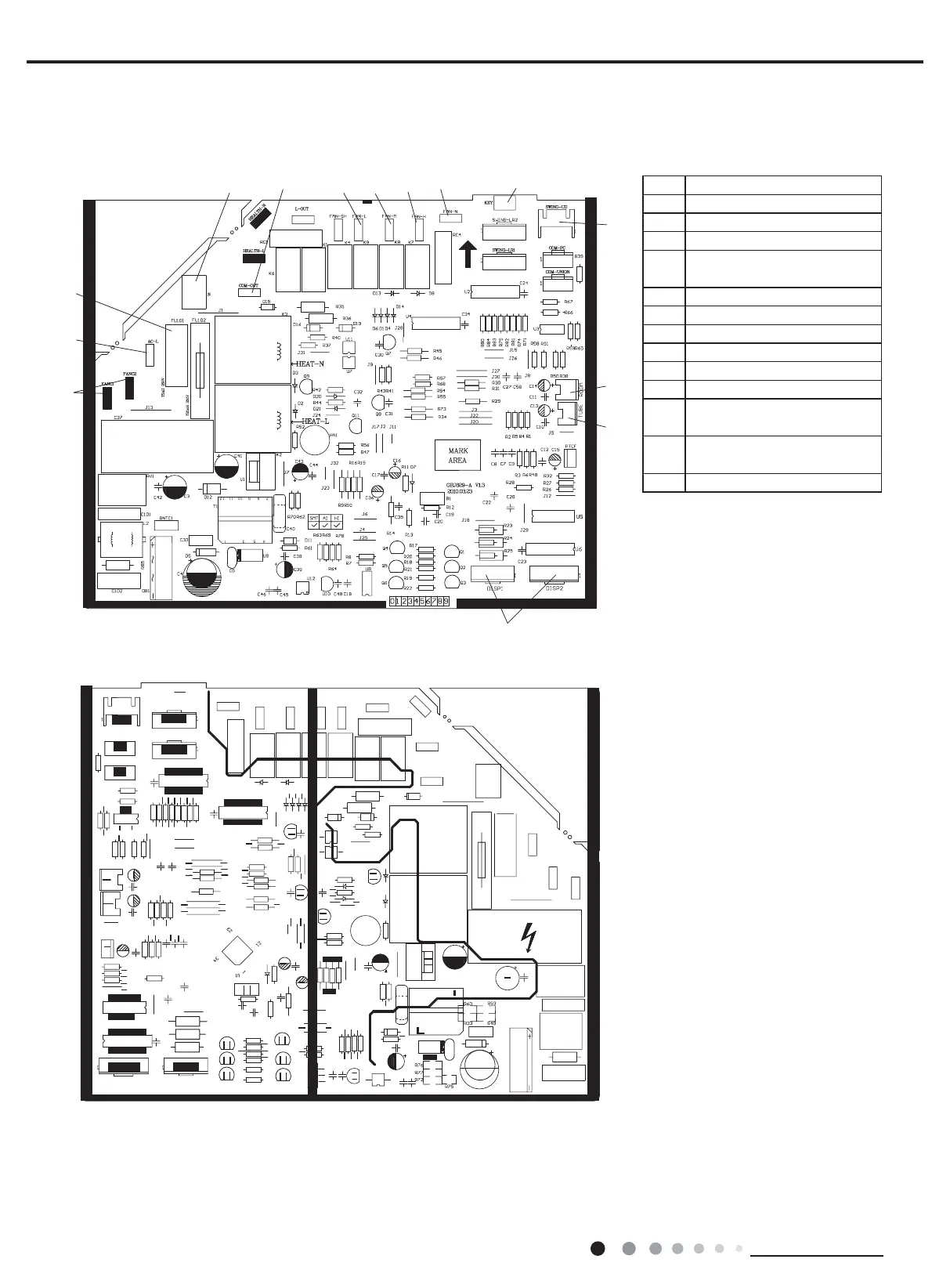

● Top view
● Bottom view
Models:LNINVE070 LNINVE080
1
2
3
5
6 7 8
9
10
4
11
12
13
14
1 Interface of fan capacitor
2 Input interface of live wire
3 Fuse
4 Input interface of neutral wire
5
Communication interface of
outdoor and indoor fan
6 Low fan
7 Medium fan
8 High fan
9 Interface of neutral wire for fan
10 Interface of auto button
11 Interface of up&down swing
12
Interface of ambient
temperature sensor
13
Interface of tube temperature
sensor
14 Interface of display panel
