Lennox MLA Series User Manual

16
4-WAY VALVE
OUTDOOR
FAN
CN 7
3
6
CN 31
PAN
HEATER
CN 15
CN 60
CRANKCASE
HEATER
CN 17
BLUE
BROWN
BLACK
3
2
L2
RED
BLUE
Y/G
1
Y/G
CN 21
Y/G
CN 1A
Y/G
Y/G
COMPRESSOR
Y/G
CN 50
3
U
V
W
BLUE
RED
BLACK
EXV
OUTDOOR
MAIN
PCB
OUTDOOR
TEMP. S ENS OR
COMP RES S OR
DISCHARGE T E MP. S E NS OR
O UTDOOR C OIL T E MP. S E NS O R
RED
BLACK WHTIE
T5
T4
T3

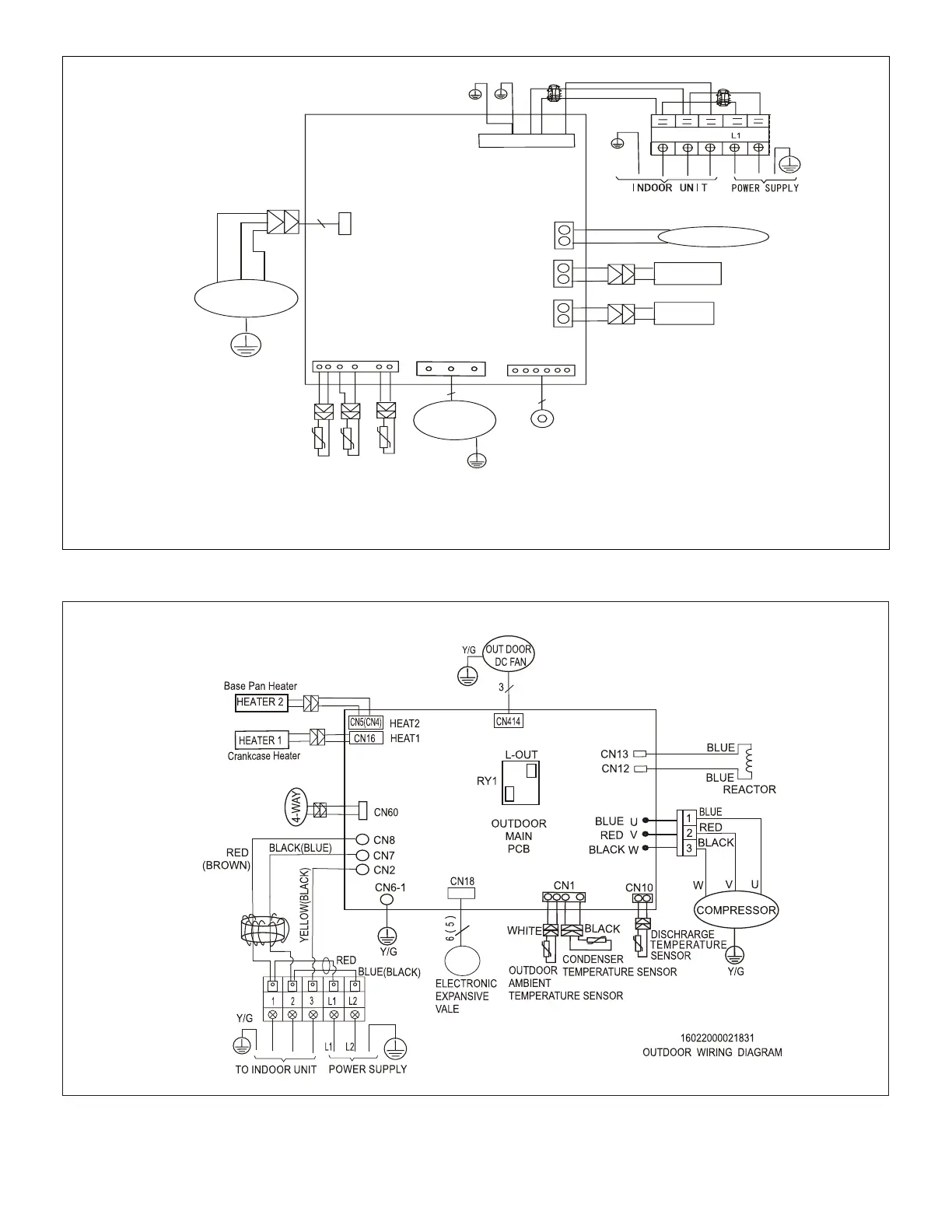

Figure 23. 208/230V MPB012S4S-*P Outdoor Unit Wiring Diagram
Figure 24. 208/230V MLA012S4S-*P Outdoor Unit Wiring Diagram
