Field Installed
Gas Valve

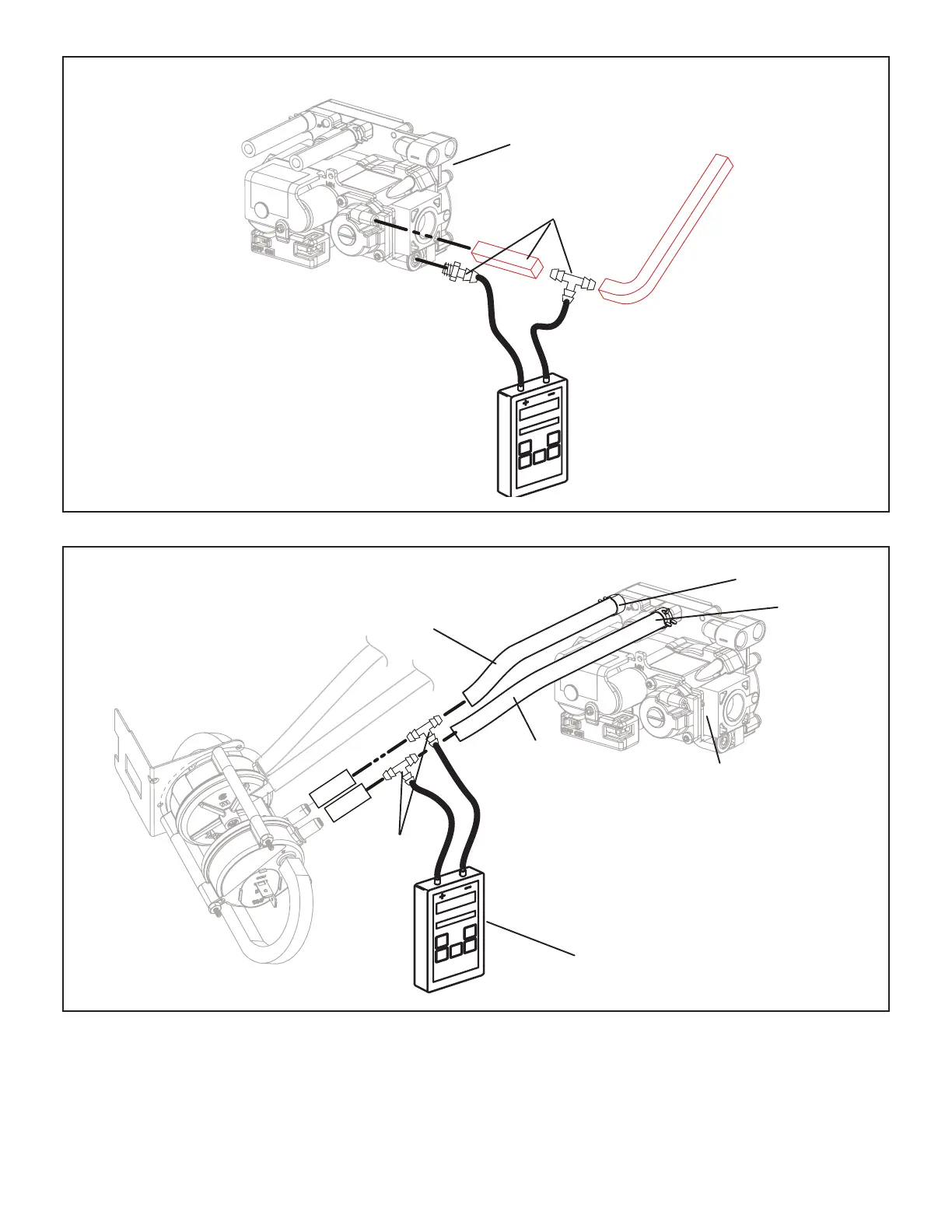

MANIFOLD PRESSURE MEASUREMENT
FIGURE 52
Negative Port
Positive Port
Gas Valve
Measuring Device
Field Installed
Operating Signal (Delta P) Measurement
Black Tubing +
Red and Black Tubing -
FIGURE 53
