Wired Controller VEWCL1E
5
3.2 Instruction for LCD of Wired Controller
Table 3.1
No. Name Instruction
1 Status
It is for displaying date, time and the activated functional
icon
2 Mode It is for displaying operating mode
3 Temperature It is for displaying the temperature
4 Swing It is for displaying the current swing status
5
Fan speed
It is for displaying the fan speed
6 Control mode It is for displaying the control mode of the ERV+DX Coil unit
4 Buttons
4.1 Silkscreen of Buttons

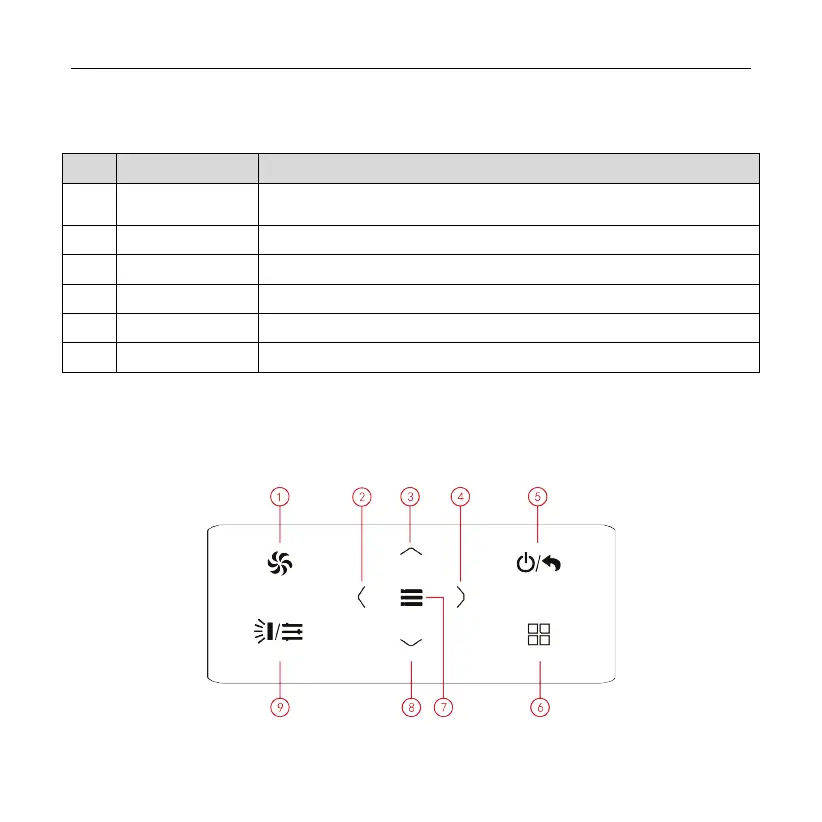

Fig. 4.1 Silkscreen of buttons
