When installing:
Ensure that the connector is attached firmly.

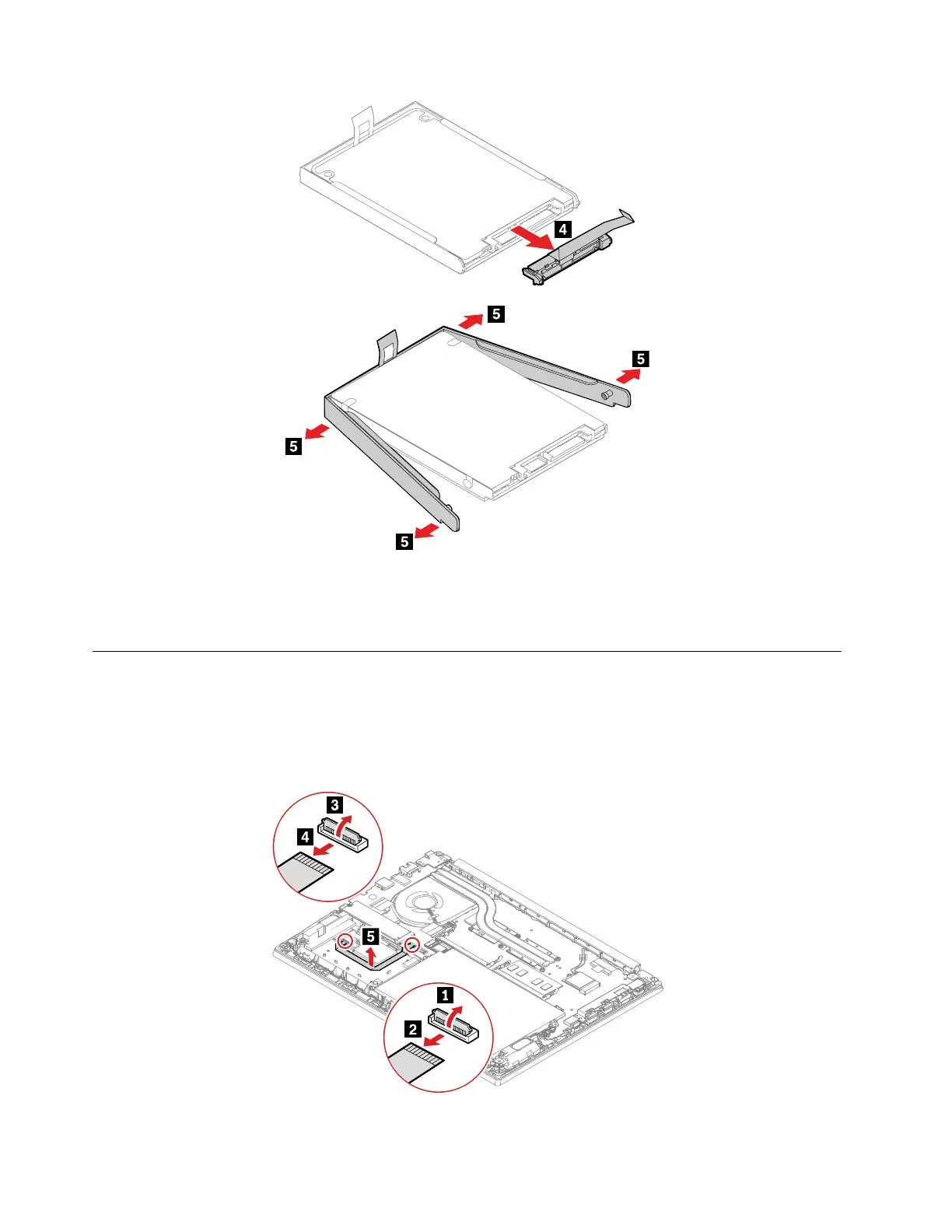

1040 Fingerprint reader card, cable, and bracket
For access, remove these FRUs:
• “1020 Base cover assembly” on page 65
• “1030 Hard disk drive, cable, and bracket” on page 67
Removal steps of the fingerprint reader card
68 E490 and R490 Hardware Maintenance Manual
