Removal steps of the LED and camera cable assembly
2060 Wireless LAN antennas assembly and LCD rear cover assembly
For access, remove these FRUs in order:
• “1020 Base cover assembly” on page 65
• “2010 LCD bezel assembly” on page 83
• “2020 LCD panel” on page 84
• “2030 Hinge kit” on page 85
• “2040 Integrated camera and microphone combo card” on page 88
Removal steps of the Wireless LAN antennas assembly and the LCD rear cover assembly

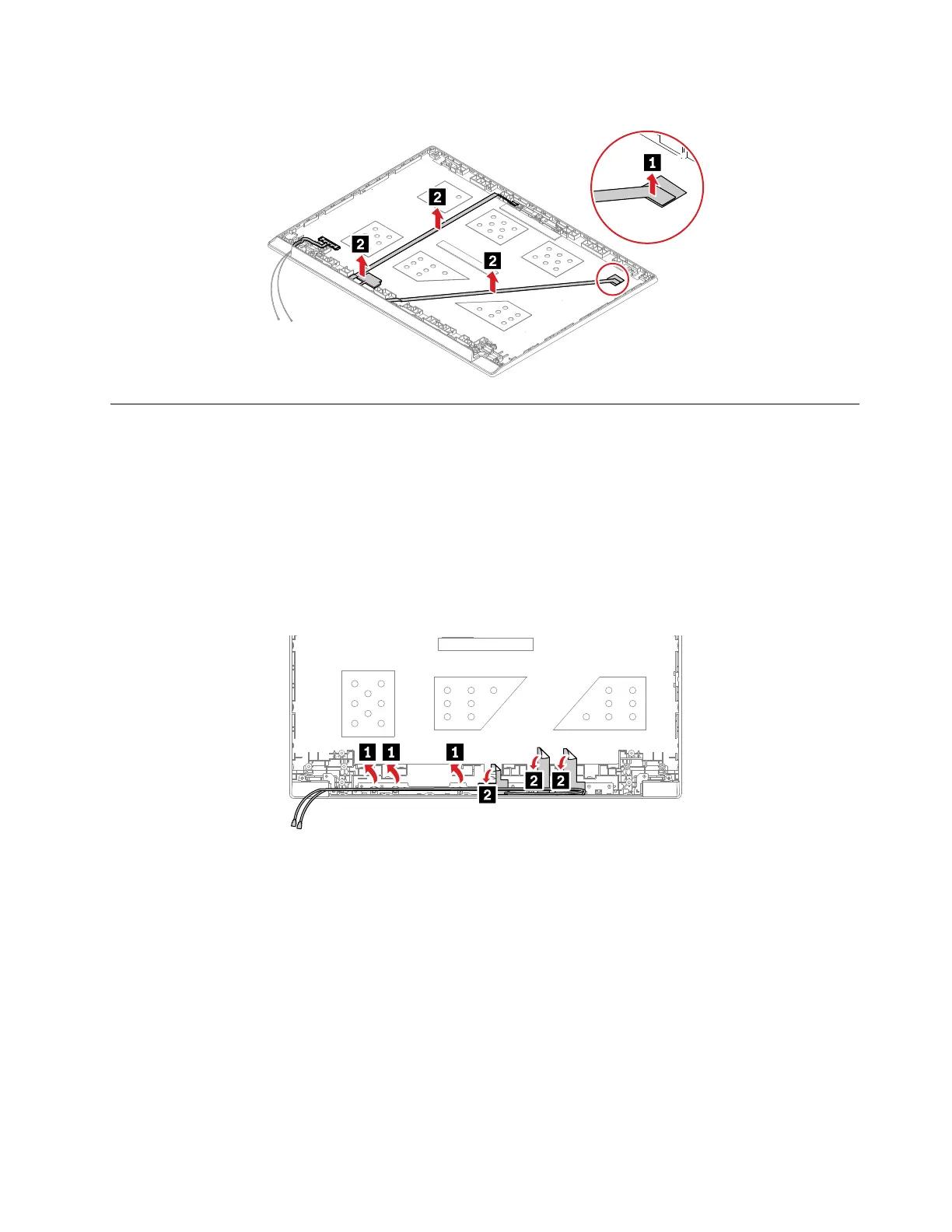

Release the wireless LAN antennas assembly from the tabs as shown.
Chapter 8. Removing or replacing a FRU 89
