2040 Integrated camera and microphone combo card
For access, remove these FRUs in order:
• “1160 LCD unit” on page 82
• “2010 LCD bezel assembly” on page 83
• “2020 LCD panel” on page 84
• “2030 Hinge kit” on page 85

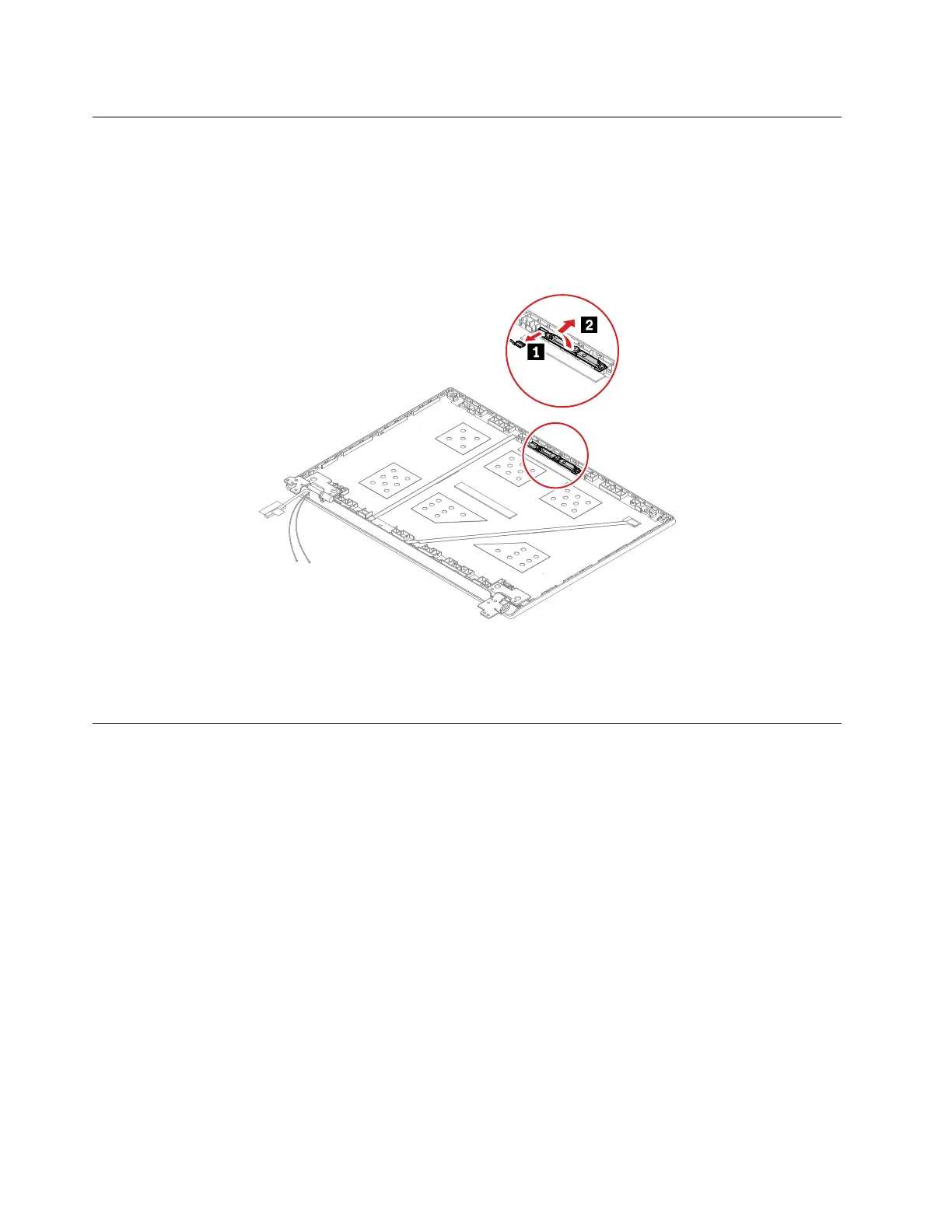

Removal steps of the integrated camera and microphone combo card
When installing:
Ensure that the connector is attached firmly.
2050 LED and camera cable assembly
For access, remove these FRUs in order:
• “1160 LCD unit” on page 82
• “2010 LCD bezel assembly” on page 83
• “2020 LCD panel” on page 84
• “2030 Hinge kit” on page 85
• “2040 Integrated camera and microphone combo card” on page 88
88
E490 and R490 Hardware Maintenance Manual
