When installing:
Ensure that all the latches are attached firmly.
2020 LCD panel
For access, remove this FRU in order:
• “2010 LCD bezel assembly” on page 83

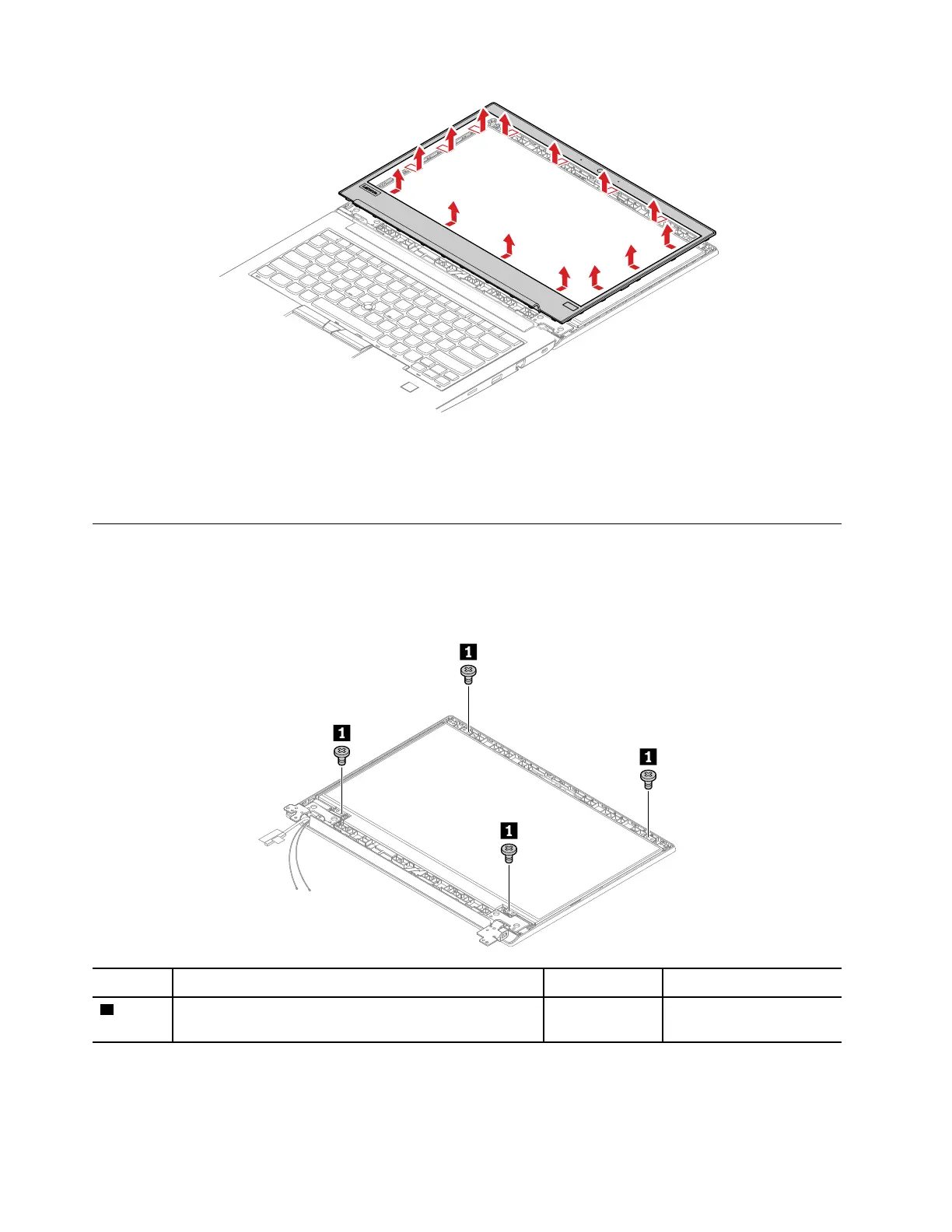

Removal steps of the LCD panel
Step Screw (quantity) Color
Torque
1
M2 × 2.5 mm, flat-head, nylon-coated (4) Silver
0.181 Nm
(1.85 kgf-cm)
84 E490 and R490 Hardware Maintenance Manual
