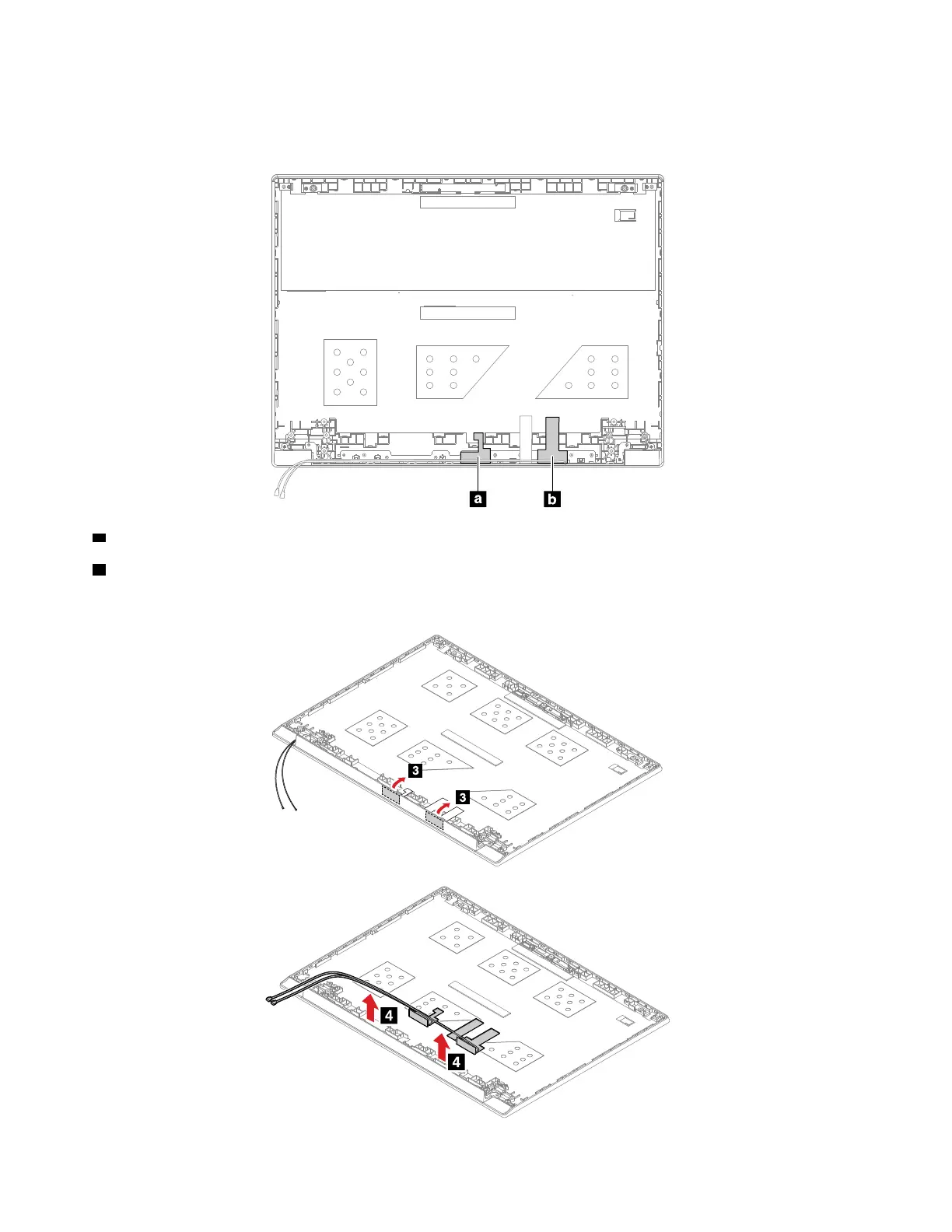

Remove the wireless LAN antennas assembly from the LCD rear cover assembly.
Antenna locations
a Wireless LAN main antenna (gray)
b Wireless LAN auxiliary antenna (black)
Peel off the stickers on the wireless LAN antennas assembly from the LCD rear cover assembly.
90 E490 and R490 Hardware Maintenance Manual
