Lenovo Phab Plus - 1040 Rear Camera

Lenovo PHAB Plus Hardware Maintenance Manual
42
1040 Rear camera
For access, remove the following FRU:
• “1010 Rear cover with speaker” on page 34
and
Detach the following FPC from the main board:
• Battery FPC (see Step 1 on page 37 in “1020 Battery pack”)
1. Detach the connector of the rear camera FPC from the main board.

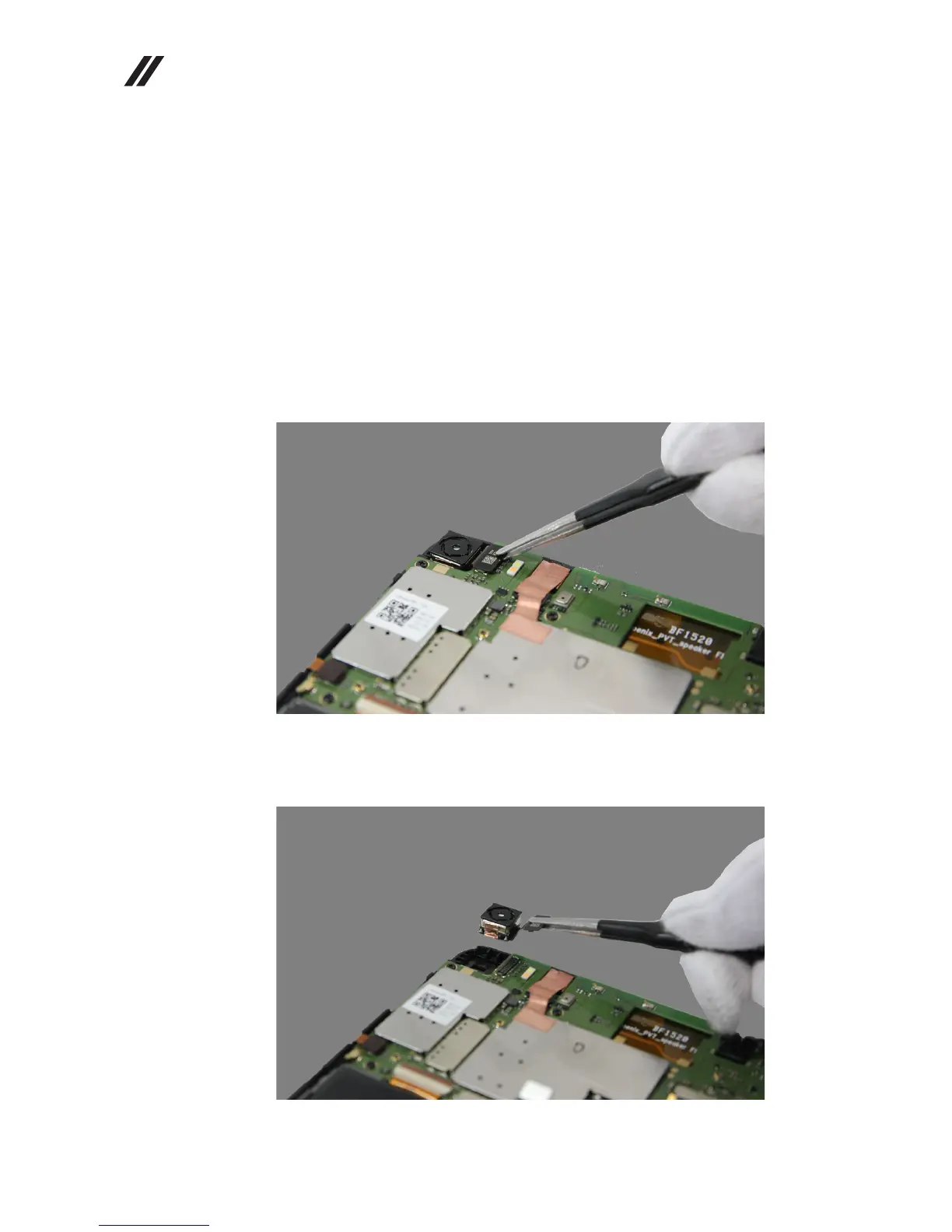

Figure 4-1. Detaching the connector of the rear camera FPC
2. Remove the rear camera from its seat as shown in the figure below.
Figure 4-2. Removing the rear camera
