Lenovo PHAB Plus Hardware Maintenance Manual
52
1080 Receiver
For access, remove the following FRUs in order:
• “1010 Rear cover with speaker” on page 34
• “1020 Battery pack” on page 37
• “1040 Rear camera” on page 42
• “1050 Front camera” on page 44
• “1070 Main board” on page 48
1. Remove the receiver using a pair of tweezers.

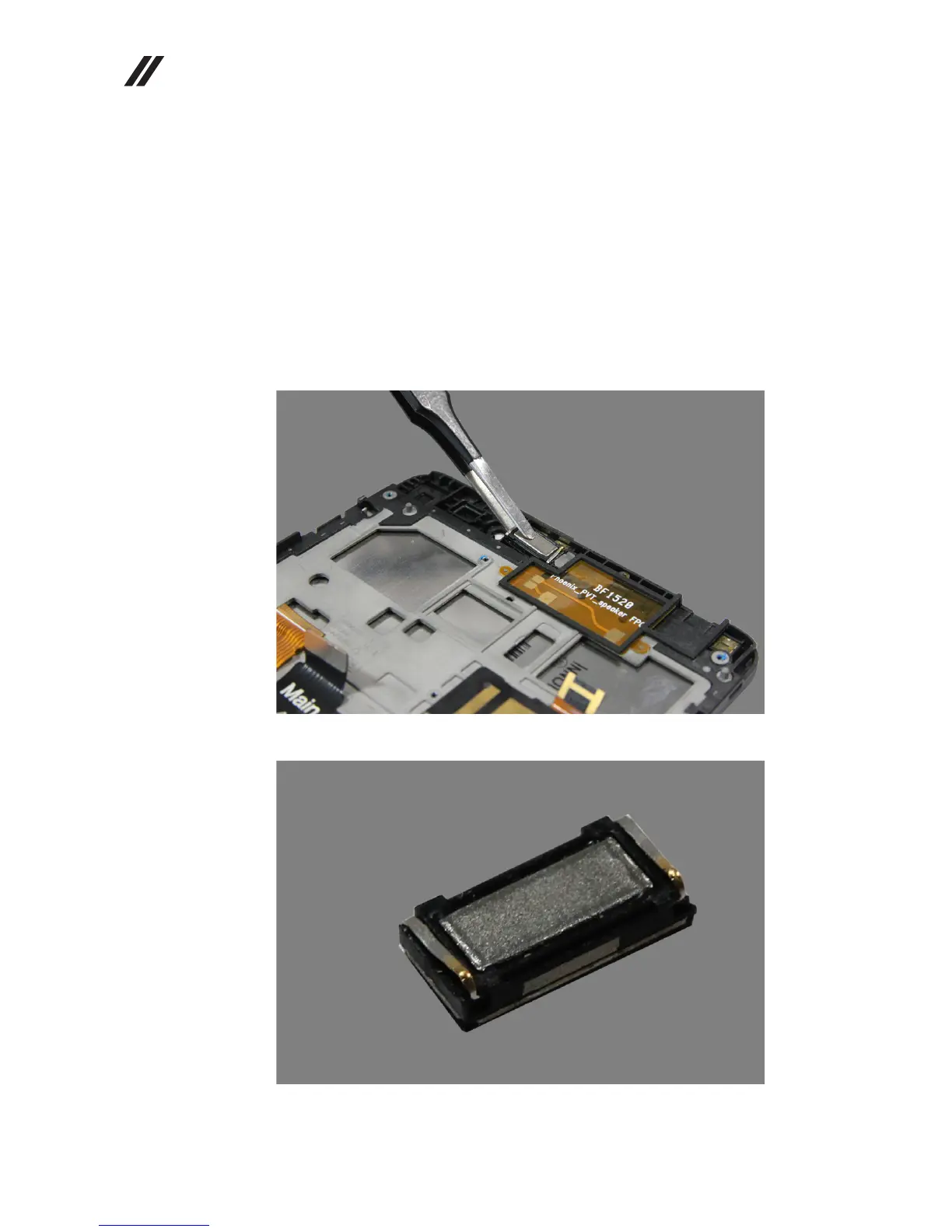

Figure 8-1. Detaching the receiver
Figure 8-2. The removed receiver
