1090 Vibrator motor
For access, remove the following FRU:
• “1010 Rear cover with speaker” on page 34
1. Disconnect the battery FPC from its connector on the main board using a pair
of tweezers.

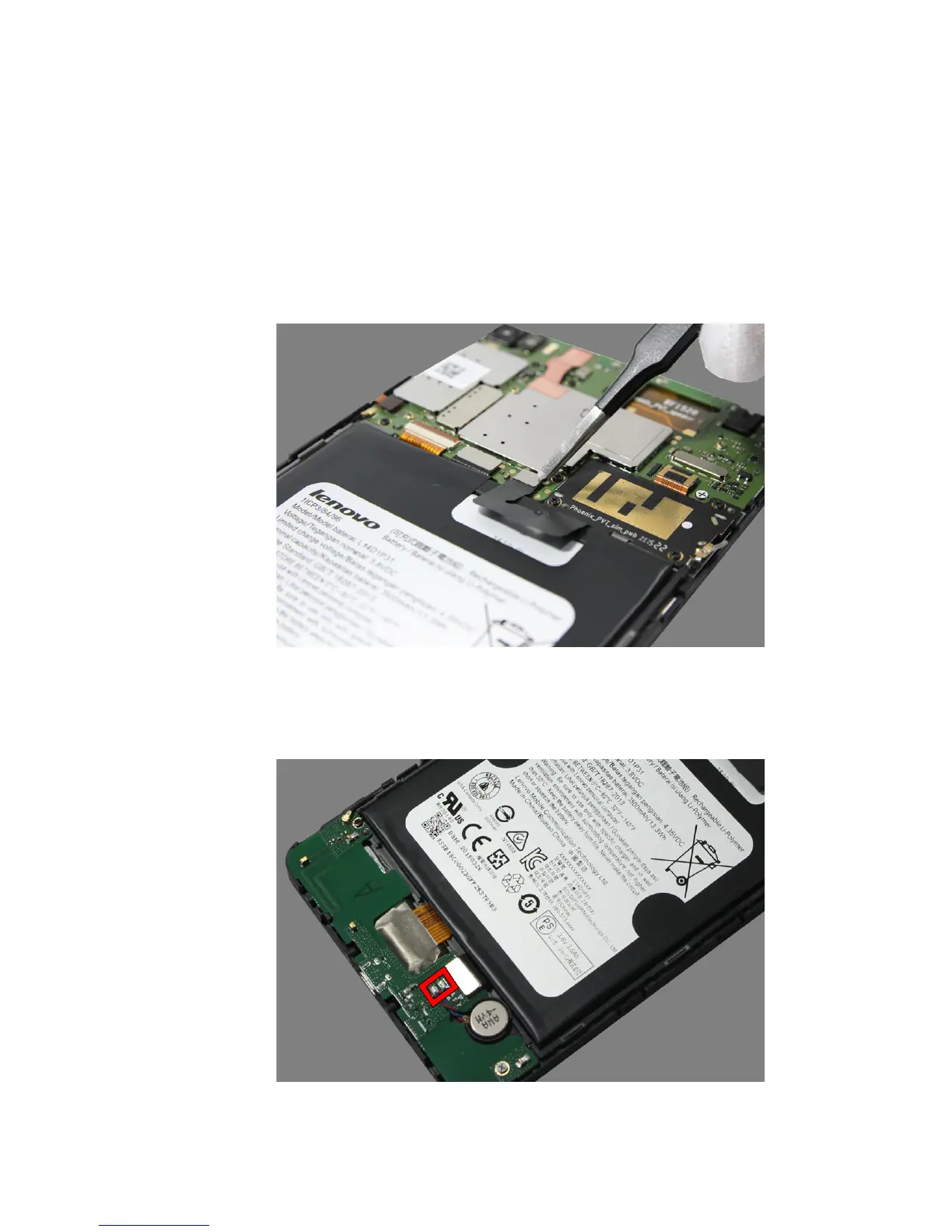

Figure 9-1. Disconnecting the battery FPC
2. Desolder the wires of the vibrator motor from the sub board at the positions
shown in the figure below.
Figure 9-2. Positions for desoldering the wires of the vibrator motor
