Lenovo Phab Plus - 1030 SIM Board

Lenovo PHAB Plus
39
1030 SIM Board
For access, remove the following FRU:
• “1010 Rear cover with speaker” on page 34
and
Detach the following FPC from the main board:
• Battery FPC (see Step 1 on page 37 in “1020 Battery pack”)
1. Detach the connector of the SIM board FPC from the main board.

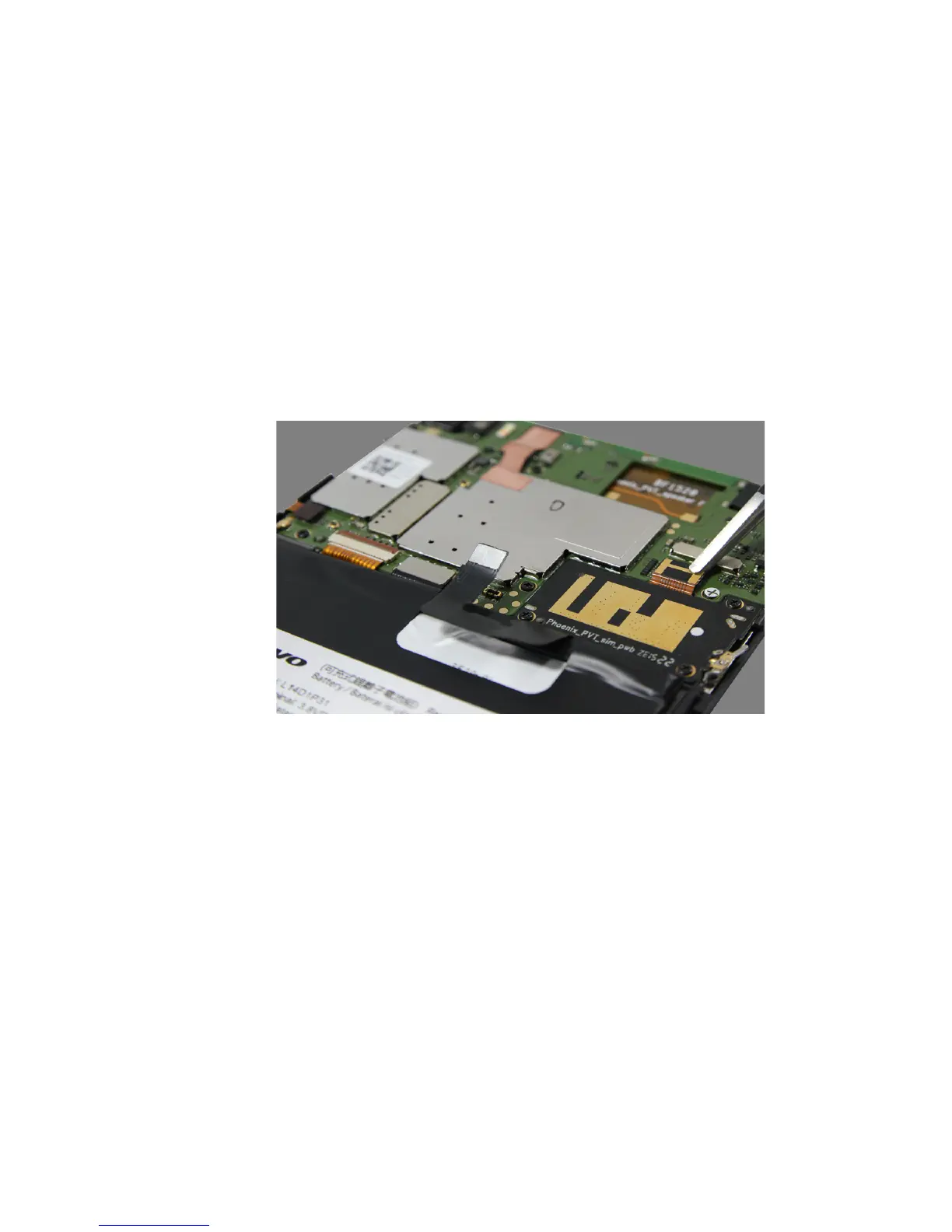

Figure 3-1. Detaching the connector of the SIM board FPC
