Lenovo Phab Plus - 1060 Power and Volume Key FPC

Lenovo PHAB Plus Hardware Maintenance Manual
46
1060 Power and volume key FPC
For access, remove the following FRUs:
• “1010 Rear cover with speaker” on page 34
and
Detach the following FPC from the main board:
• Battery FPC (see Step 1 on page 37 in “1020 Battery pack”)
1. Detach the connector of the power and volume key FPC from the main board.

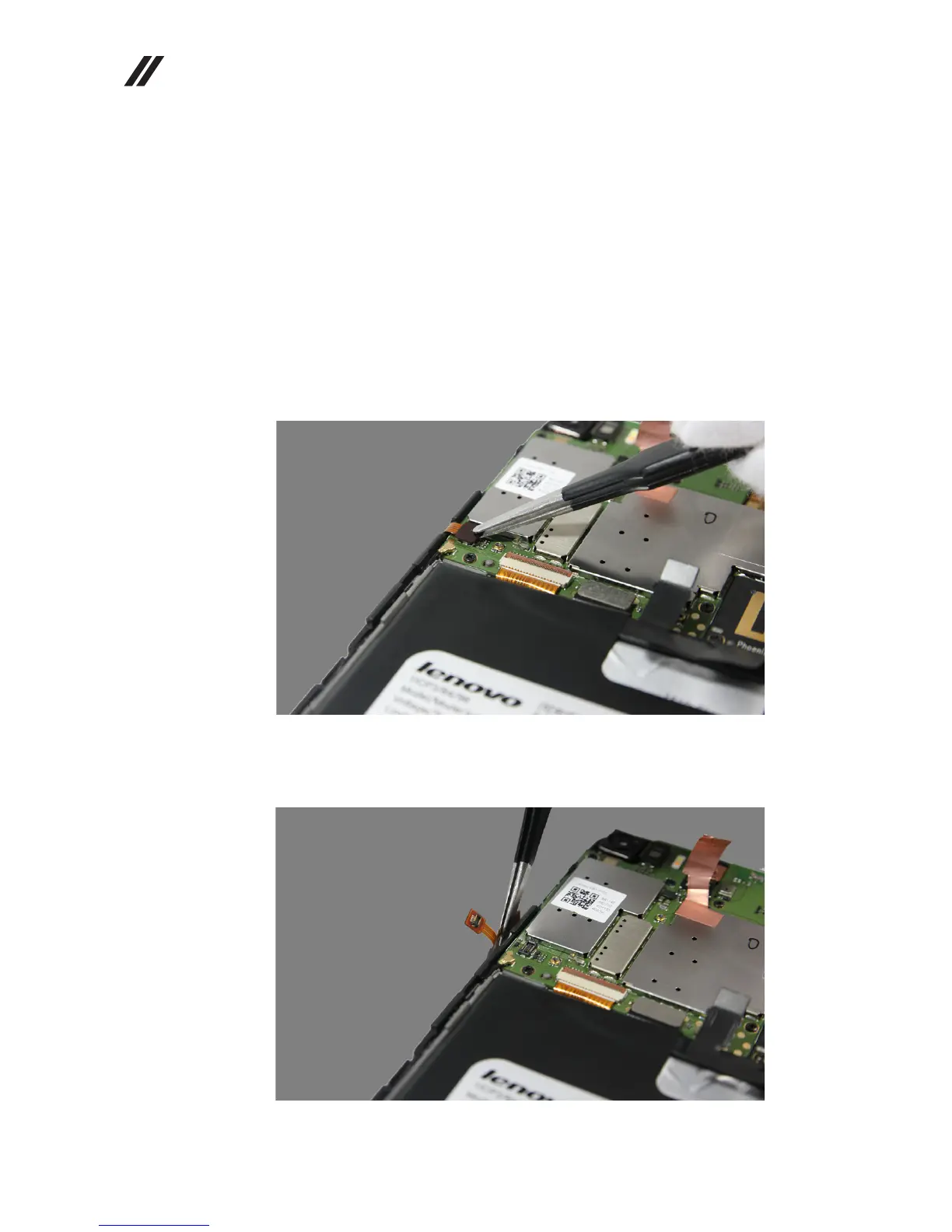

Figure 6-1. Detaching the connector of the power and volume key FPC
2. Remove the power and volume key FPC.
Figure 6-2. Removing the power and volume key FPC
