1120 Main FPC
For access, remove the following FRUs in order:
• “1010 Rear cover with speaker” on page 34
• “1020 Battery pack” on page 37
1. Detach the connector of the main FPC from the main board.

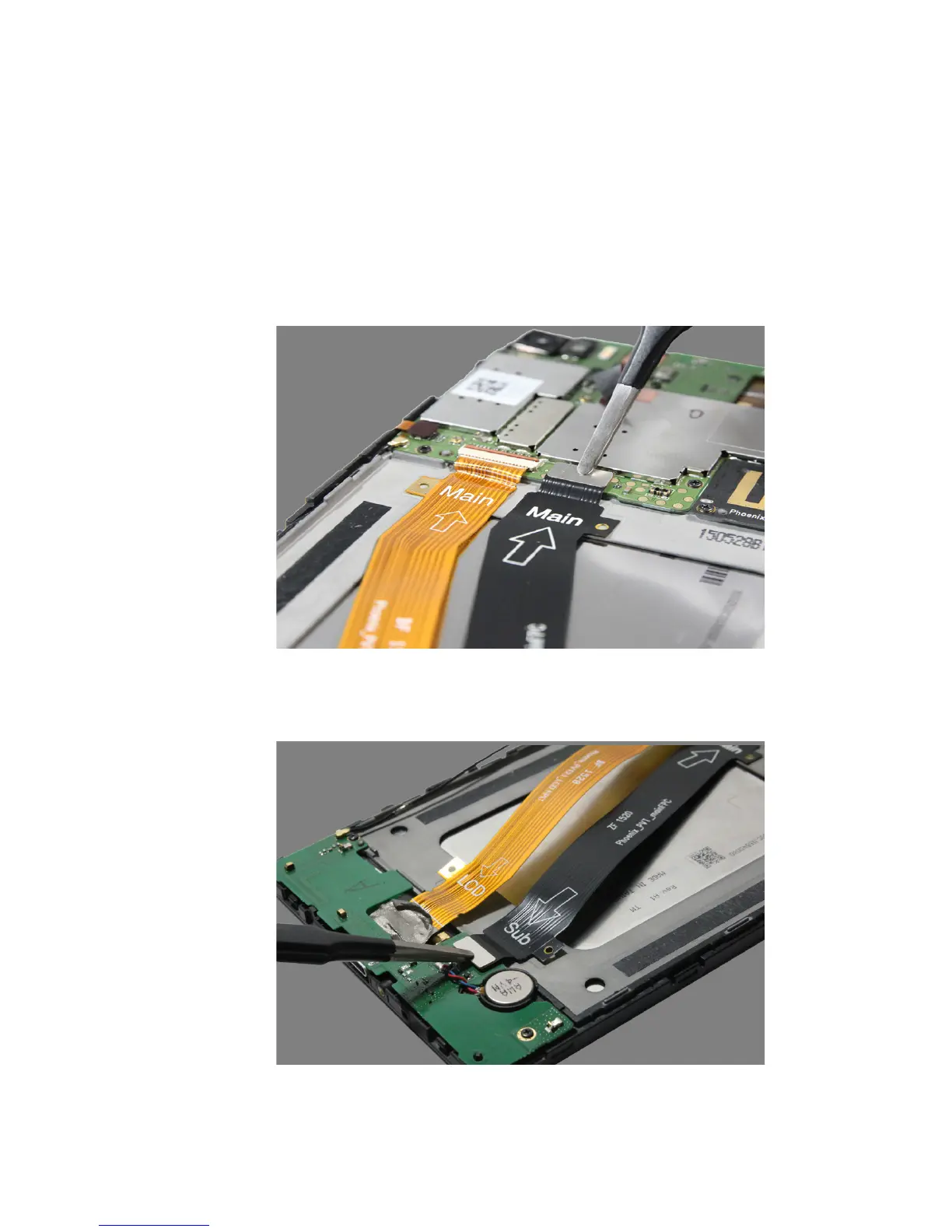

Figure 12-1. Detaching the main FPC (main board side)
2. Detach the connector of the main FPC from the sub board.
Figure 12-2. Detaching the main FPC (sub board side)
