1070 Main board
For access, remove the following FRUs:
• “1010 Rear cover with speaker” on page 34
• “1020 Battery pack” on page 37
• “1040 Rear camera” on page 42
• “1050 Front camera” on page 44
and
Detach the following FPC from the main board:
• Power and volume key FPC (see Step 1 on page 46 in “1060 Power and
volume key FPC”)
• SIM board FPC (see Step 1 on page 39 in “1030 SIM Board”
1. Detach the antenna cable from its connector on the main board.

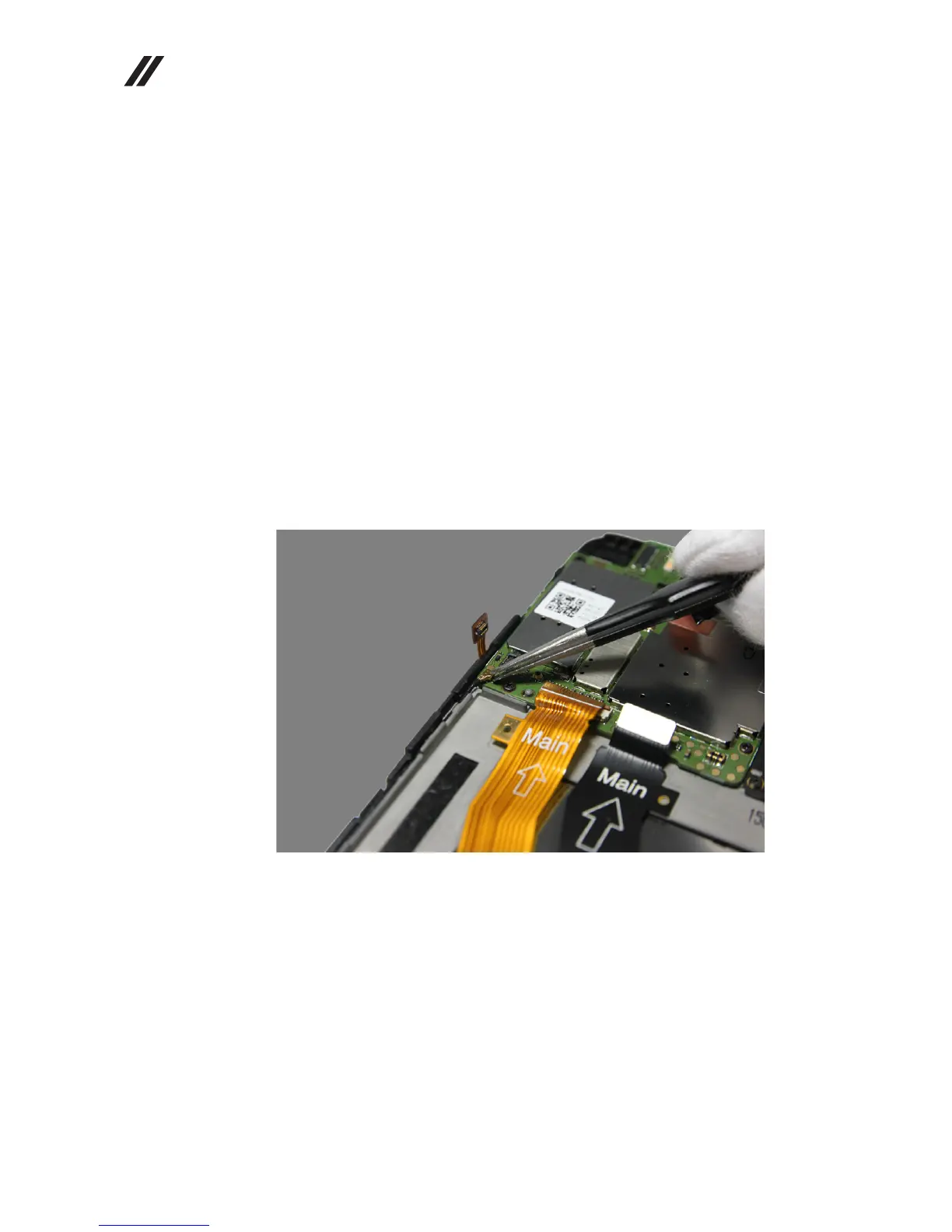

Figure 7-1. Detaching the antenna cable
