Lenovo PHAB Plus
51

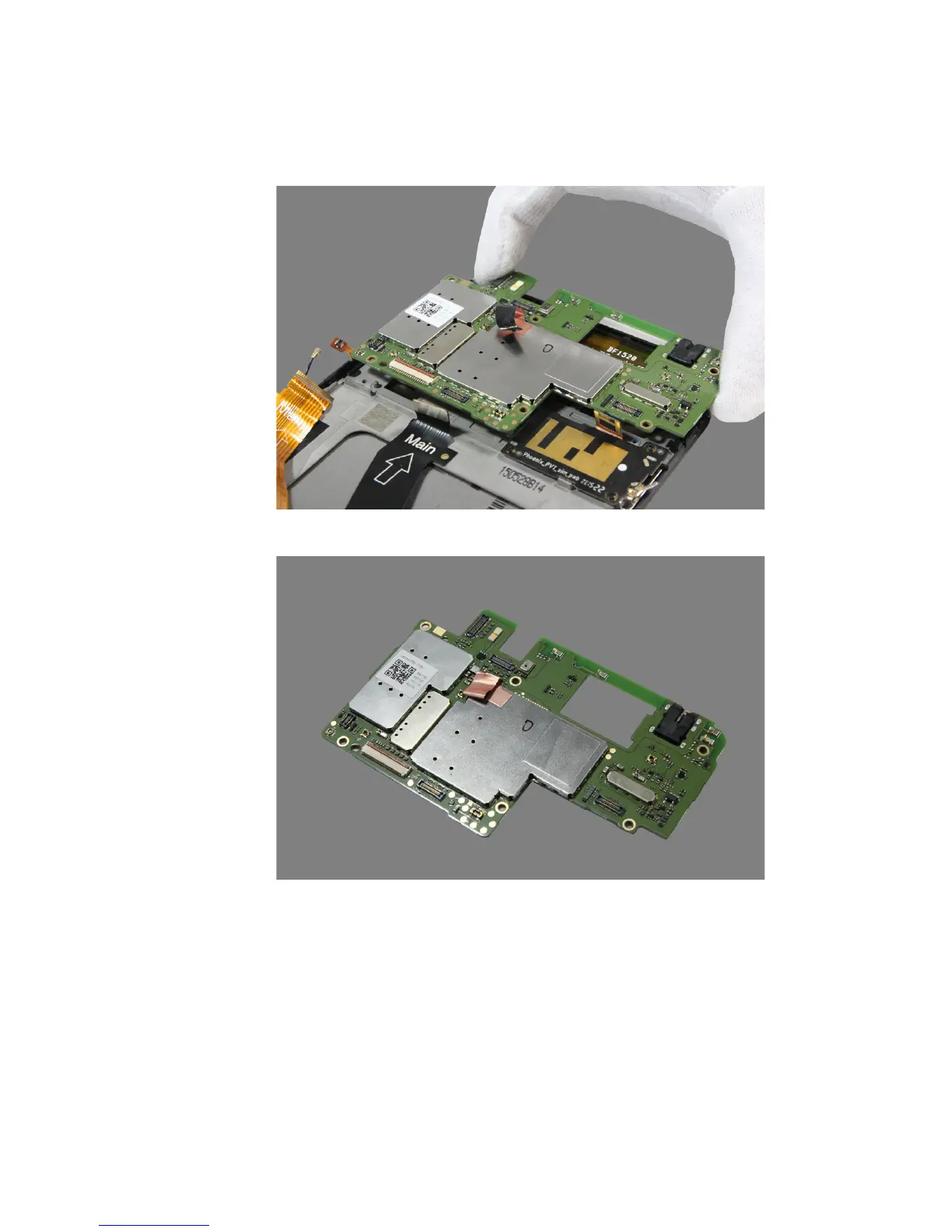

6. Lift up the main board assembly and remove it as shown in the figure below.
Figure 7-6. Removing the main board assembly
Figure 7-7. The removed the main board assembly
