Lenovo PHAB Plus
59

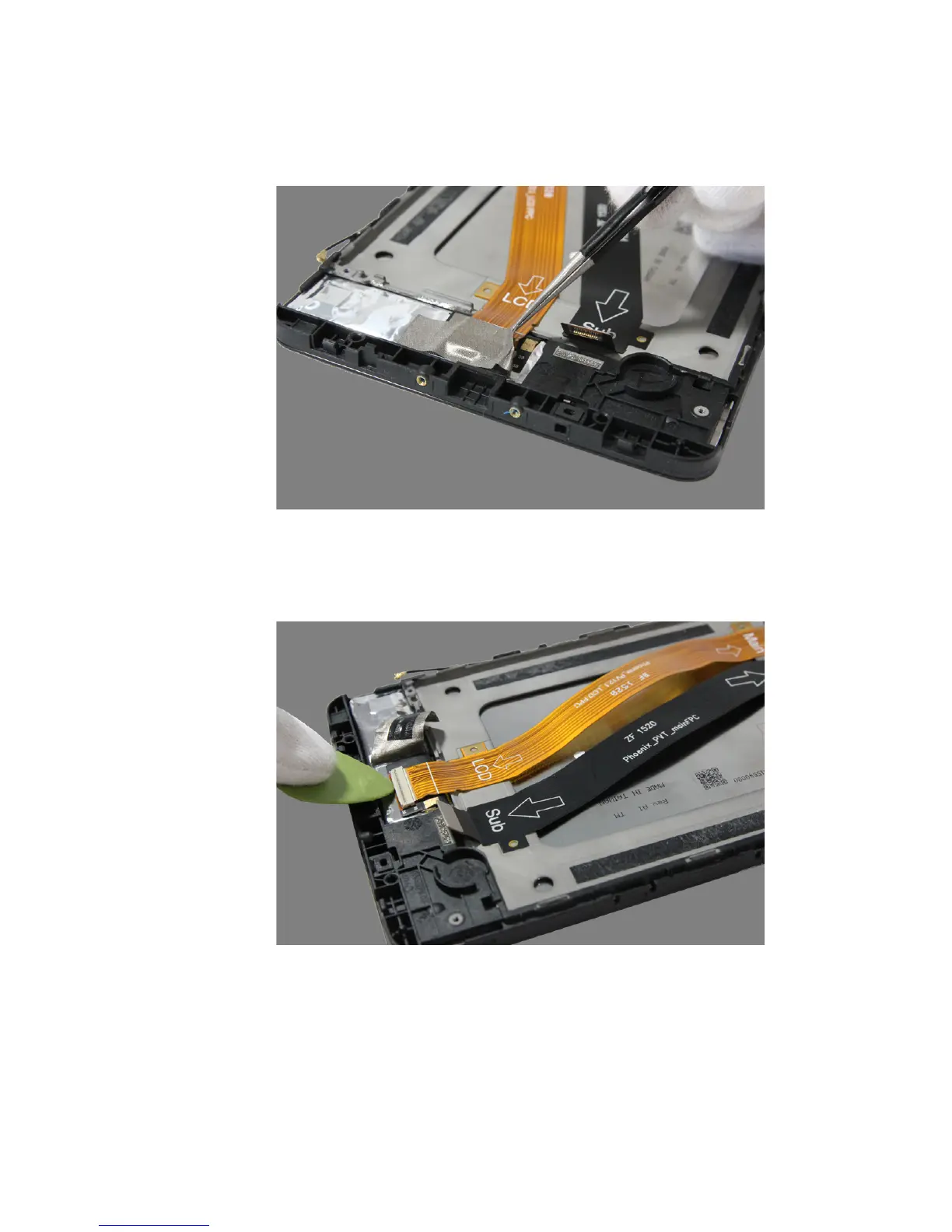

3. Remove the conductive fabric tape.
Figure 11-3. Removing the conductive fabric tape
4. Unlock the connector of the LCD FPC on the front module of the phone using
a triangle paddle.
Figure 11-4. Unlocking the connector of the LCD FPC on the front module (sub board side)
