Lenovo ThinkCentre Tiny-in-One 24 User Manual

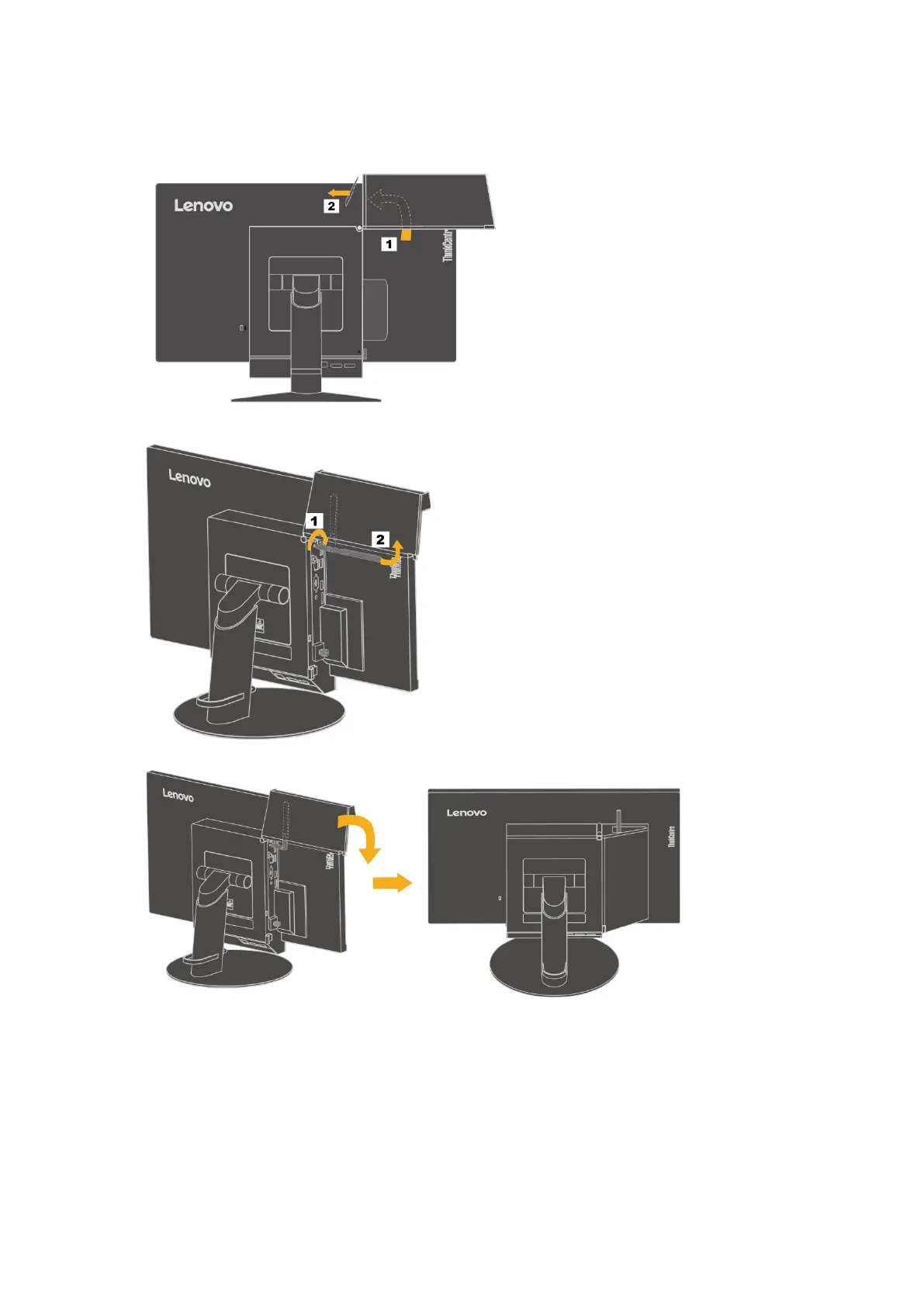

Part 3: Install the rear Wi-Fi antenna (optional).
1. Pivot the cable cover as shown to the open position. Then, press the decorative cover 2 from the inner side of the
cable cover to remove the decorative cover.
2. Screw the rear Wi-Fi antenna to the antenna connector on the rear of the computer. Then, adjust the angle of the
antenna to 90 degrees.
3.
Pivot the cable cover as shown to the closed position.
Chapter 1 Getting started 5

Lenovo ThinkCentre Tiny-in-One 24 Specifications

General

3D	No
Color gamut	72 %
Pixel pitch	0.2745 x 0.2745 mm
Screen shape	Flat
Display surface	Matt
Display diagonal	23.8 \
Native aspect ratio	16:9
Viewable size diagonal	604.7 mm
Viewable size, vertical	313 mm
Contrast ratio (typical)	1000:1
Display number of colors	-
Viewable size, horizontal	535 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 640 x 480 (VGA), 720 x 400, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1280 x 800, 1366 x 768, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
On/off switch	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	35 W
Power consumption (typical)	16.7 W
Certification	China RoHS, China Energy Efficiency Standard Tier 1, RoHS EU, RoHS (Turkey), EPEAT Gold, Energy Star 7.0, RoHS Ukraine
Product color	Black
Market positioning	Business
RMS rated power	1.5 W
Number of speakers	1
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	2
Tilt angle range	-5 - 35 °
Number of OSD languages	8
Panel mounting interface	100 x 100 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	8 - 80 %
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (with stand)	251.4 mm
Height (with stand)	385.08 mm
Weight (with stand)	5570 g
Depth (without stand)	68.2 mm
Width (without stand)	539.6 mm
Height (without stand)	346.45 mm
Weight (without stand)	- g
