Lenovo ThinkCentre Tiny-in-One 24 User Manual

Service information
Prod
uct numbers

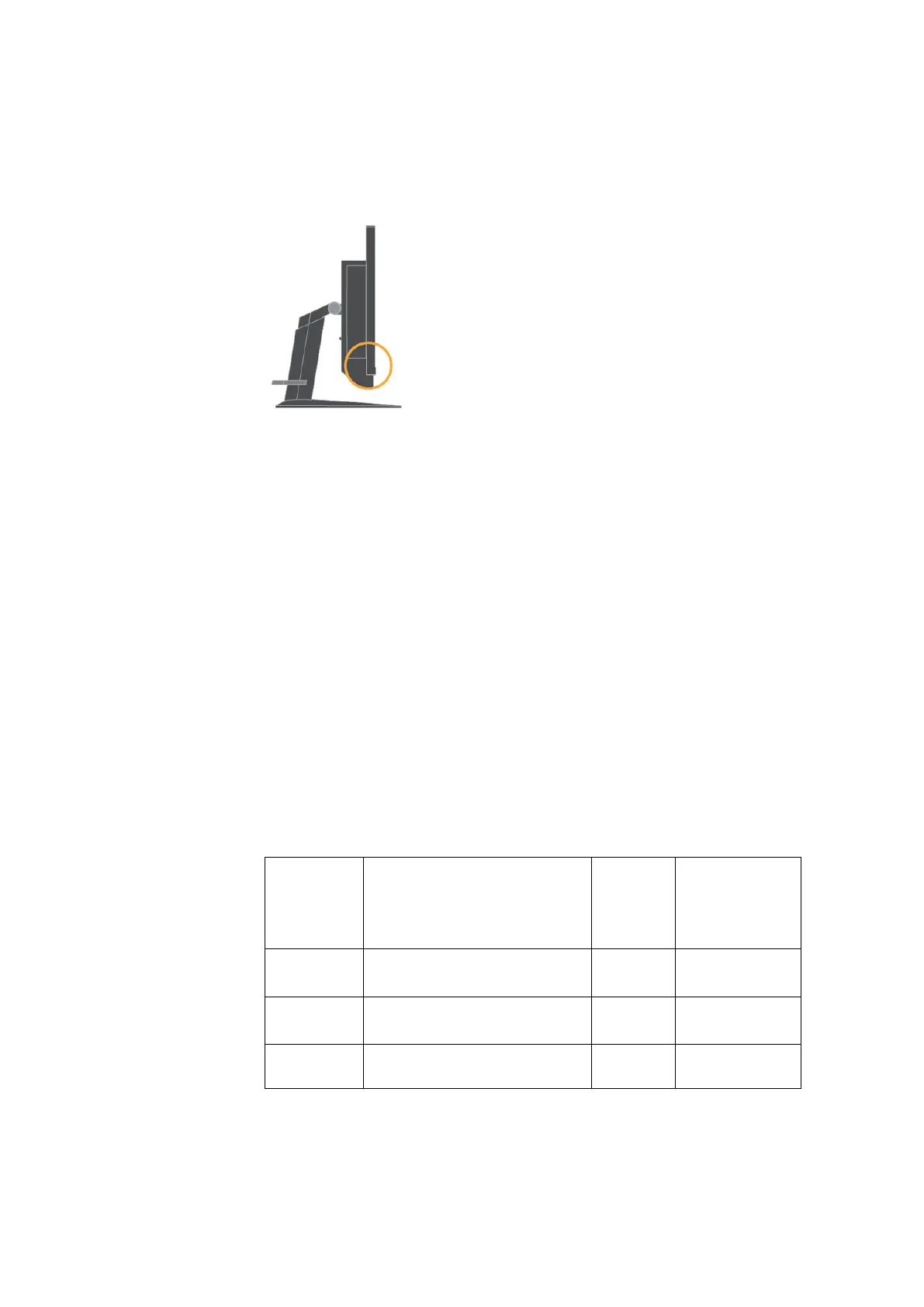

The product number for your monitor is located on the side of the display bezel as shown
below.
Customer responsibilities
The warranty does not apply to a product which has been damaged due to accident, misuse,
abuse, improper installation, usage not in accordance with product specifications and
instructions, natural or personal disaster, or unauthorized alterations, repairs or
modifications.
The following are examples of misuse or abuse and not covered by warranty:
● Images burned on to the screen of a CRT monitor. Burned image is preventable by
utilizing a moving screen saver or power management.
● Physical damage to covers, bezel, base and cables.
● Scratches or punctures on monitor screens.
● Pivot the monitor when working in AIO mode.
Getting further help
If you still can’t solve your problem, please contact the Customer Support Centre. For
more information on contacting the Customer Support Centre, please see “Service and
support,” on page
29.
Service parts
The following parts are for use by Lenovo service, or Lenovo authorized dealers to
support the customer warranty. Parts are for service use only. The table below
shows information for model 10LL-PAR6-WW.
Table 3-3. List of service parts
FRU (Field
Replaceable
Unit)
Part number
Description color
Machine Type
Model (MTM)
00PC117
Tiny-in-One 24 Monitor
(24inch Monitor, DP& 3in1 port)
Raven Black
10LL-PAR6-WW
54Y8966
90w Power Brick (DT&AIO
Common 90W with CMN)
00PC118
Tiny-in-One 24 Monitor - FRU
Stand and Base
Raven Black
10LL-PAR6-WW
28 ThinkCentre Tiny-in-One 24 User Guide

Lenovo ThinkCentre Tiny-in-One 24 Specifications

General

3D	No
Color gamut	72 %
Pixel pitch	0.2745 x 0.2745 mm
Screen shape	Flat
Display surface	Matt
Display diagonal	23.8 \
Native aspect ratio	16:9
Viewable size diagonal	604.7 mm
Viewable size, vertical	313 mm
Contrast ratio (typical)	1000:1
Display number of colors	-
Viewable size, horizontal	535 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 640 x 480 (VGA), 720 x 400, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1280 x 800, 1366 x 768, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
On/off switch	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	35 W
Power consumption (typical)	16.7 W
Certification	China RoHS, China Energy Efficiency Standard Tier 1, RoHS EU, RoHS (Turkey), EPEAT Gold, Energy Star 7.0, RoHS Ukraine
Product color	Black
Market positioning	Business
RMS rated power	1.5 W
Number of speakers	1
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	2
Tilt angle range	-5 - 35 °
Number of OSD languages	8
Panel mounting interface	100 x 100 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	8 - 80 %
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (with stand)	251.4 mm
Height (with stand)	385.08 mm
Weight (with stand)	5570 g
Depth (without stand)	68.2 mm
Width (without stand)	539.6 mm
Height (without stand)	346.45 mm
Weight (without stand)	- g
