6.TherearetwoPCIExpresscardslotsontherisercardassembly1andtheshorteroneisforinstalling
theexpandercard.Removetheslotbracketfortheshorterslotandstoreitintheeventthatyoulater
removetheexpandercardandneedthebrackettocovertheplace.
Note:EnsurethatyouinstalltheRAIDcardandconnecttwomini-SAStomini-SASsignalcablestothe
RAIDcardbeforeinstallingtheexpandercard.

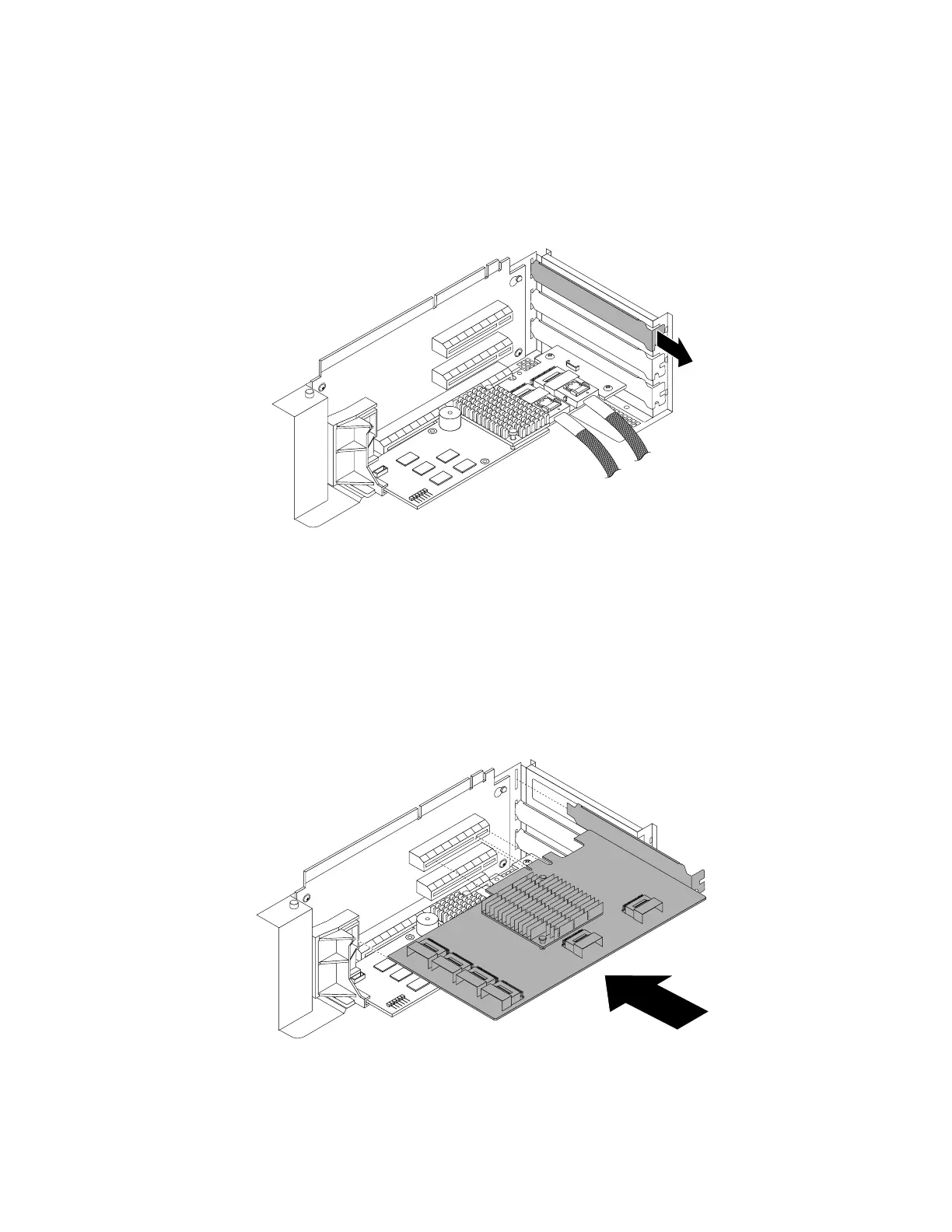

Figure62.RemovingaPCIExpresscardslotbracket
7.Touchthestatic-protectivepackagethatcontainstheexpandercardtoanyunpaintedsurfaceonthe
outsideoftheserver.Then,taketheexpandercardoutofthepackage.
Note:Carefullyhandletheexpandercardbyitsedges.
8.Notethedottedlinesinthefollowingillustrationtoproperlypositiontheexpandercardneartheshorter
PCIExpresscardslotontherisercardassembly1.Then,carefullypresstheexpandercardstraightinto
theslotuntilitissecurelyseatedanditsbracketalsoissecuredbytherisercardassembly1.
Figure63.Installingtheexpandercard
