6.TherearetwoPCIExpresscardslotsontherisercardassembly1andtheexpandercardisinstalledin
theshorterslot.Disconnectcablesfromtheexpandercard.Then,grasptheexpandercardbyitsedges
andcarefullypullitoutofthePCIExpresscardslot.
Note:TheexpandercardmightfittightlyintothePCIExpresscardslot.Ifnecessary,alternatemoving
eachsideoftheexpandercardasmallandequalamountuntilitisremovedfromtheslot.

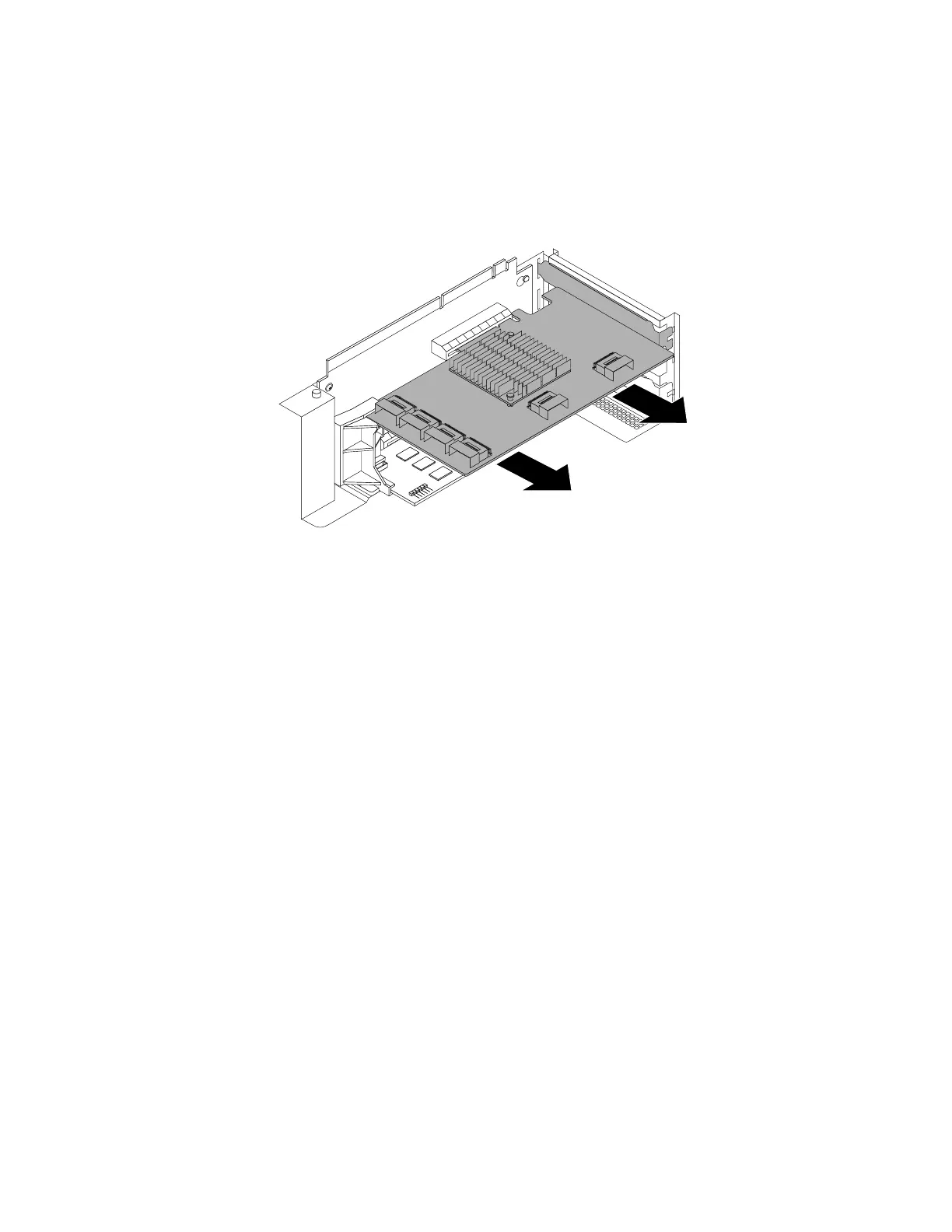

Figure64.Removingtheexpandercard
7.Dependingonyourneeds,dooneofthefollowing:
•Installanewexpandercardtoreplacetheoldoneandreconnectcables.See“Installingthe
expandercard”onpage103
.
•InstallaPCIExpresscardslotbrackettocovertheplaceandreconnectcables.See“Mini-SASto
mini-SASsignalcableconnections”onpage43.
8.Reinstalltherisercardassembly1.See“Replacingtherisercardassembly1”onpage155.
9.Ifyouareinstructedtoreturntheoldexpandercard,followallpackaginginstructionsanduseany
packagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage184.Then,you
mightneedtoreconfigureRAIDforyourserver.See“ConfiguringRAID”onpage70.
InstallingorremovingtheThinkServerManagementModulePremium
ThistopicprovidesinstructionsonhowtoinstallorremovetheThinkServerManagementModulePremium
(TMMPremium).
TheTMMPremiumoffersconvenient,remoteKVMaccessandcontrolthroughtheLANorInternet.You
canusetheTMMPremiumtogainlocation-independentremoteaccesstorespondtocriticalincidentsand
toundertakenecessarymaintenance.Therefore,workingasanintegratedsolutioninyourserver,the
TMMPremiumprovidesanincreasedlevelofmanageabilityoverthebasicservermanagementavailable.
YoucanpurchaseaTMMPremiumfromLenovo.
