7.Gentlypressthemicroprocessorretainerasshowntoopenit.Ensurethatthesmallhandlesandthe
microprocessorretainerareinthefullyopenposition.

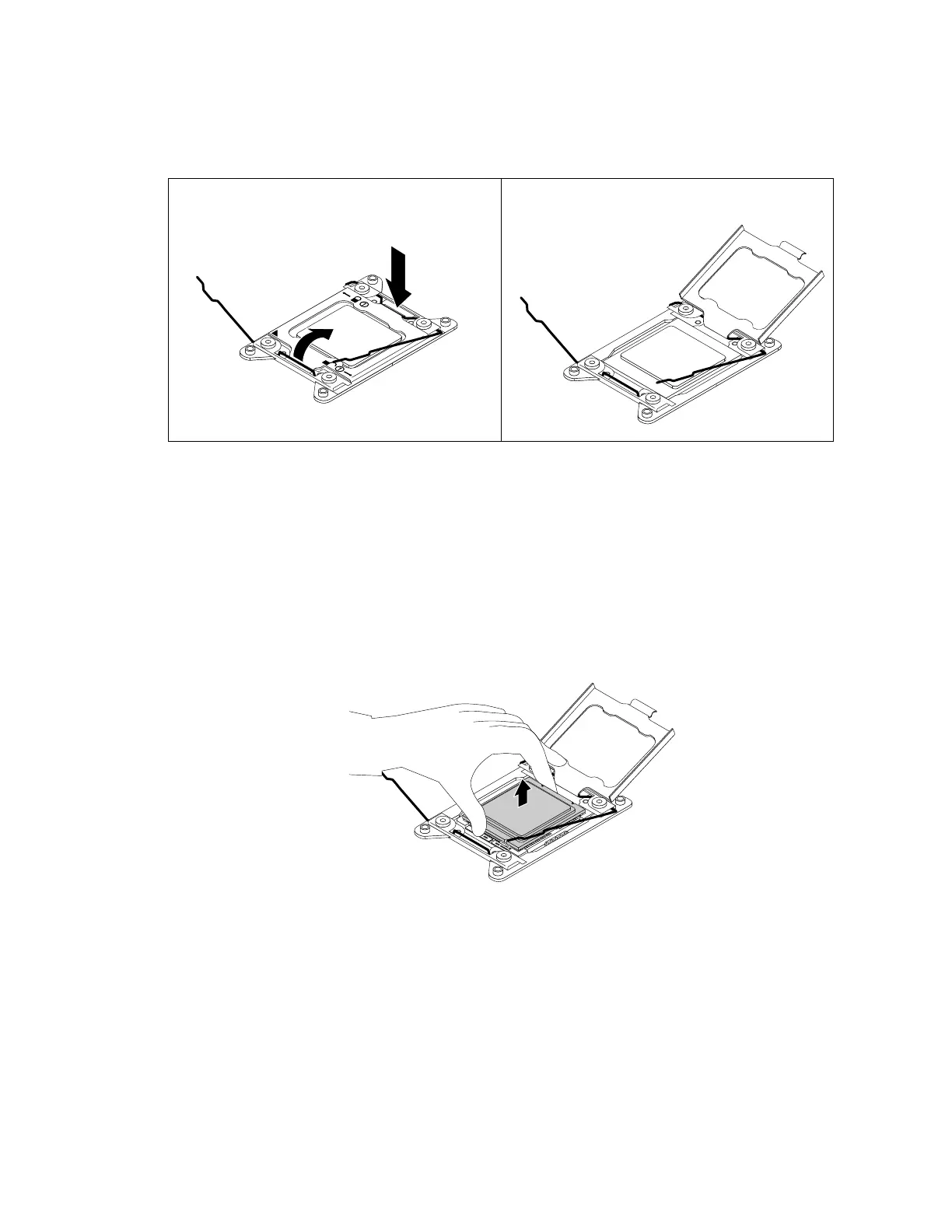

Figure81.Openingthemicroprocessorretainer
8.Touchonlytheedgesofthemicroprocessorandcarefullyliftitstraightupandoutofthemicroprocessor
socket.Placetheoldmicroprocessoronastatic-protectivesurface.
Notes:
•Donottouchthegoldcontactsonthebottomofthemicroprocessor.
•Donotdropanythingontothemicroprocessorsocketwhileitisexposed.Thesocketpinsmustbe
keptascleanaspossible.
Figure82.Removingthemicroprocessor
9.Touchthestatic-protectivepackagethatcontainsthenewmicroprocessortoanyunpaintedsurfaceon
theoutsideoftheserver.Then,removethenewmicroprocessorfromthepackage.
Chapter6.Installing,removing,orreplacinghardware125
