•Ifyouarereplacinganopticaldrive,disconnectthesignalcableandthepowercablefromtherearof
theopticaldrive.Presstherearoftheretainingbracket
1inthedirectionasshownandpushthe
opticaldrivefromtherearuntilitisprojectedfromthefrontofthechassis.Then,holdtheoptical
drivefromthefrontandcompletelyslideitoutofthechassis.

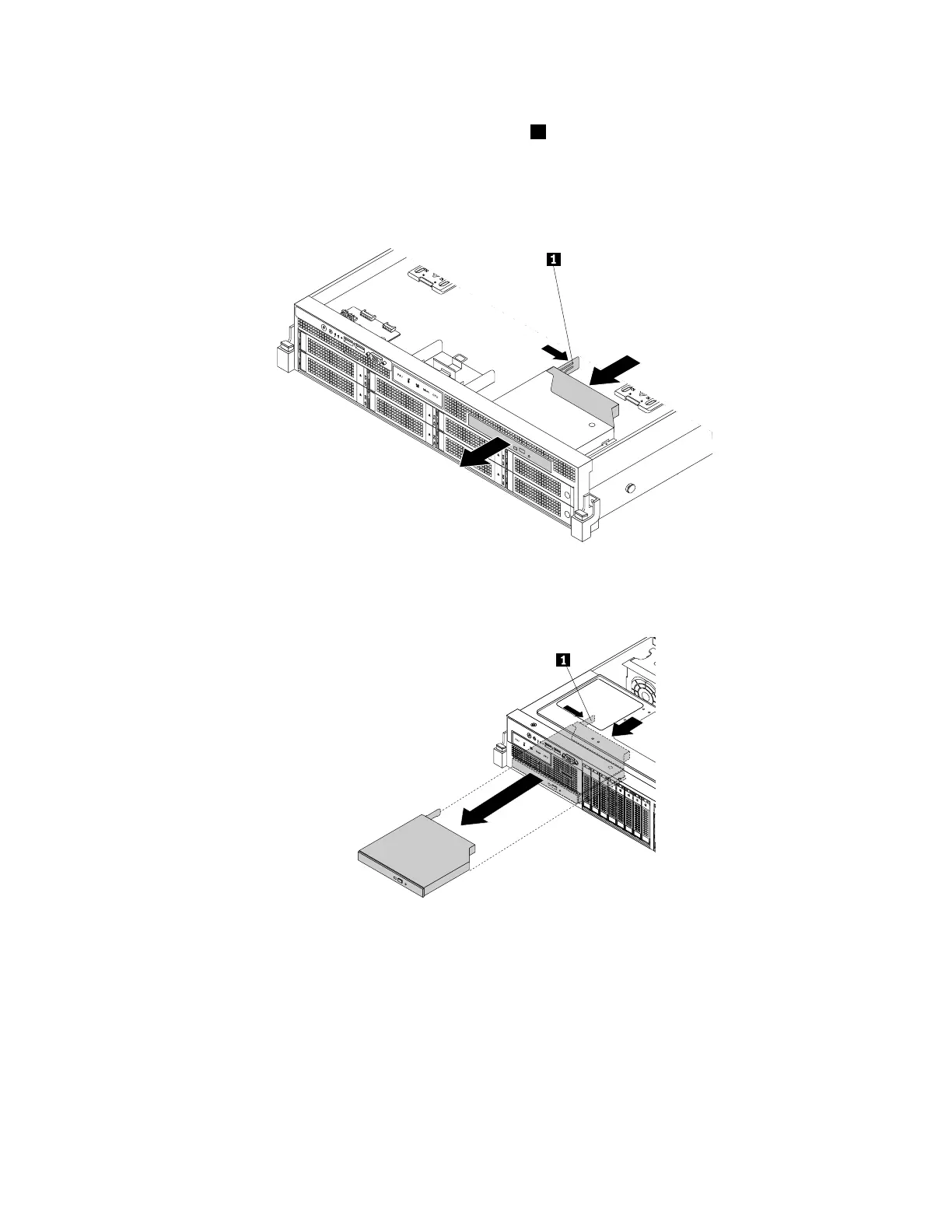

Figure97.Removingtheopticaldriveforservermodelswith3.5-inchharddiskdrives
Figure98.Removingtheopticaldriveforservermodelswith2.5-inchharddiskdrives
•Ifyouareinstallinganopticaldrive,removethedummyopticaldrivetray.Thewayofremovingthe
dummyopticaldrivetrayissimilartothewayofremovingtheopticaldrivethatisdescribedabove.
Storethedummyopticaldrivetrayintheeventthatyoulaterremovetheopticaldriveandneedthe
dummyopticaldrivetraytocovertheplace.
6.Touchthestatic-protectivepackagethatcontainsthenewopticaldrivetoanyunpaintedsurfaceonthe
outsideoftheserver.Then,takethenewopticaldriveoutofthepackage.
136ThinkServerRD640UserGuideandHardwareMaintenanceManual
