6.Removethetwoscrewsthatsecurethefrontpanelboardandthencarefullyremovethefrontpanel
boardfromthechassis.

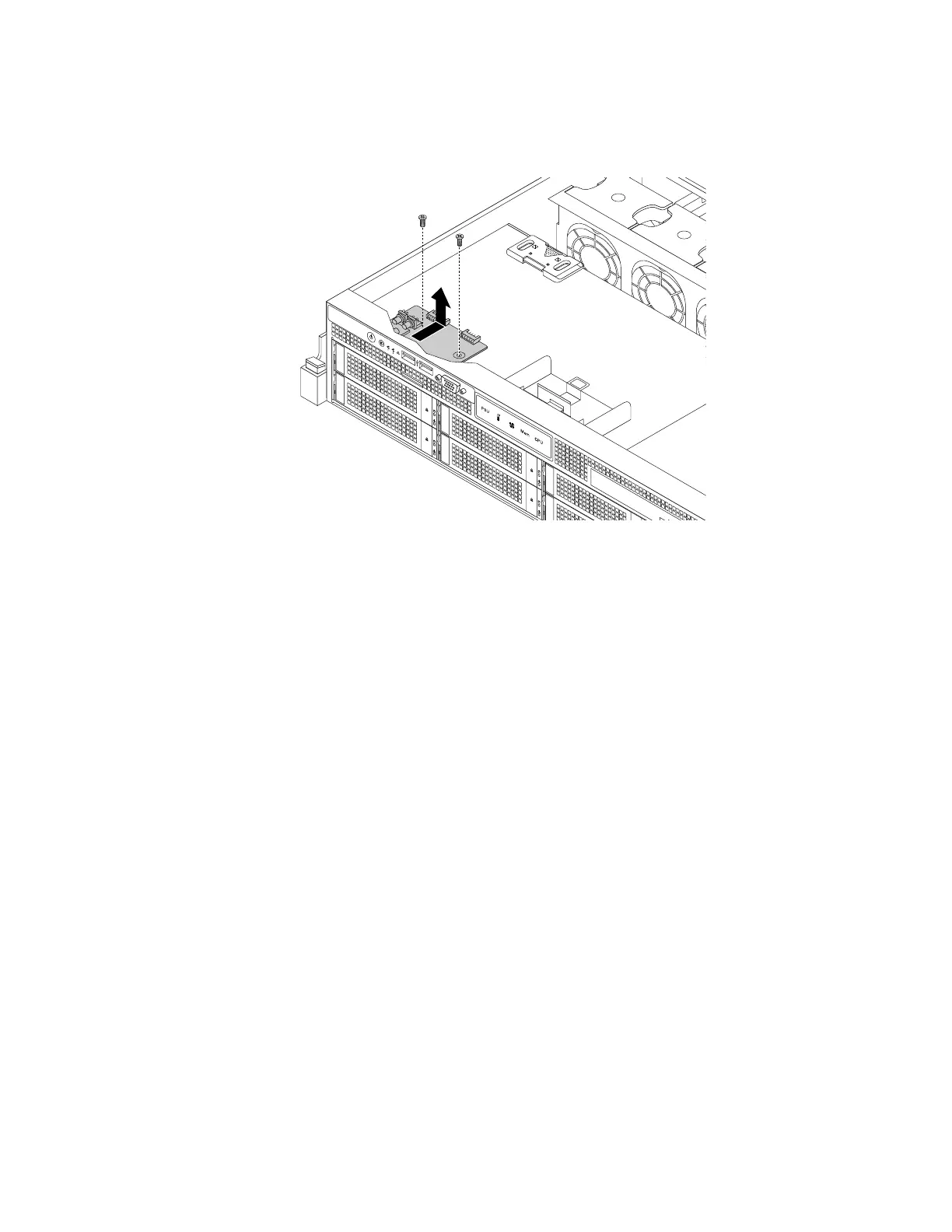

Figure136.Removingthefrontpanelboardforservermodelswith3.5-inchharddiskdrives
7.Touchthestatic-protectivepackagethatcontainsthenewfrontpanelboardtoanyunpaintedsurface
ontheoutsideoftheserver.Then,takethenewfrontpanelboardoutofthepackage.
Note:Carefullyhandlethefrontpanelboardbyitsedges.
166ThinkServerRD640UserGuideandHardwareMaintenanceManual
