5.Ensurethatthecoverlatchisintheopenposition.Placetheservercoverabovethechassissothat
thecoverlatchisalignedwiththecoverlatchslotinthechassis.Then,lowertheservercoveronto
thechassisuntilthecoverlatchisinsertedintoitsslotandbothsidesoftheservercoverengagethe
guidesonbothsidesofthechassis.

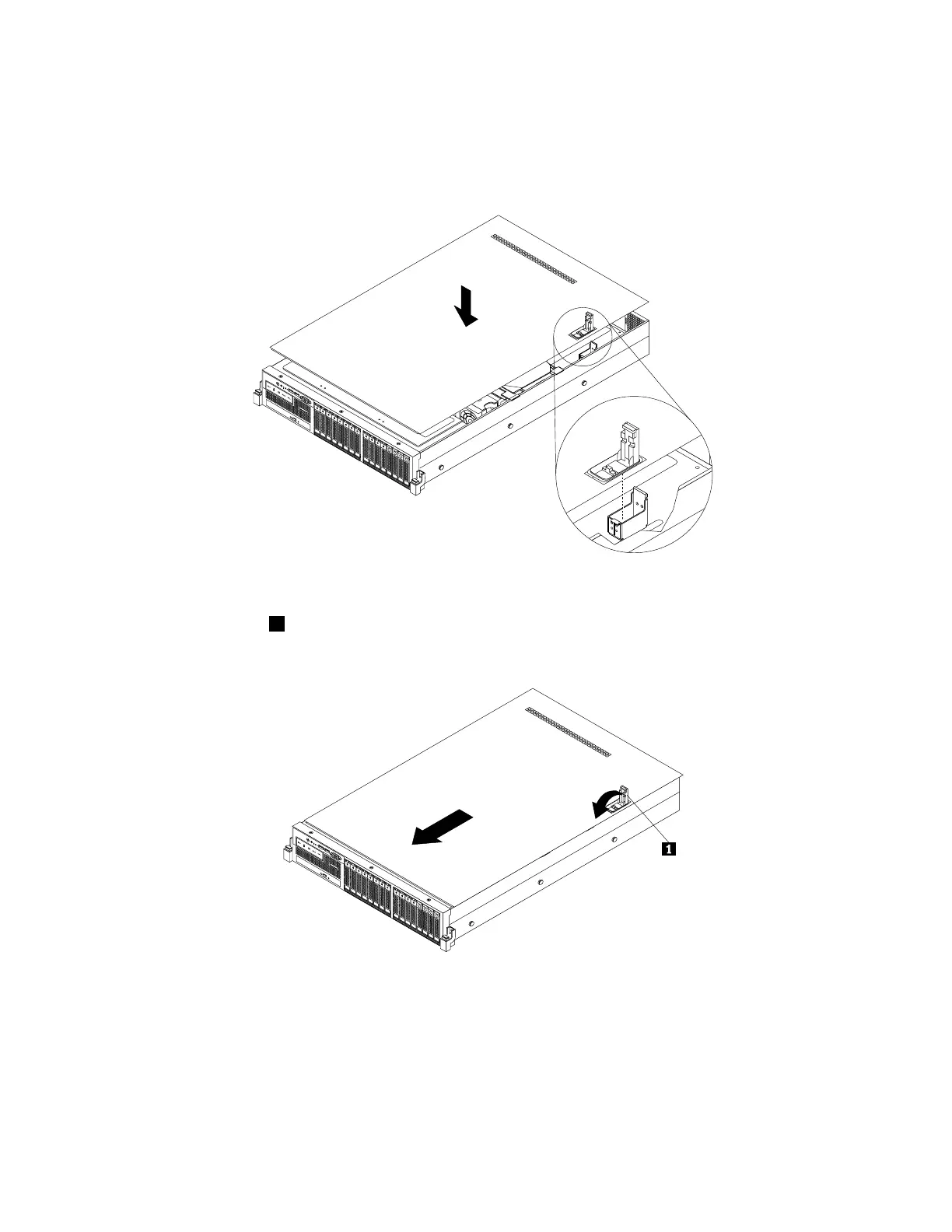

Figure159.Installingtheservercover
6.Pivotthecoverlatch1totheclosedpositionandslidetheservercovertothefrontofthechassisatthe
sametimeuntiltheservercoversnapsintopositionandthecoverlatchiscompletelyclosed.
Figure160.Closingtheservercovercompletely
7.Installtheserverintoarackcabinetusingtherailkitthatcomeswiththeserver.SeetheRackInstallation
Instructionsthatcomeswiththeserver.
8.Reconnectexternalcablesandpowercord(s)totheserver.See“Rearviewoftheserver”onpage27to
identifytheconnectorsontherearpaneloftheserver.
186ThinkServerRD640UserGuideandHardwareMaintenanceManual
