2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaflat,
clean,andstatic-protectivesurface.SeetheRackInstallationInstructionsthatcomeswiththeserver.
3.Removetheservercover.See“Removingtheservercover”onpage77.
4.Locatethecoolingshroudandliftitoutoftheserver.

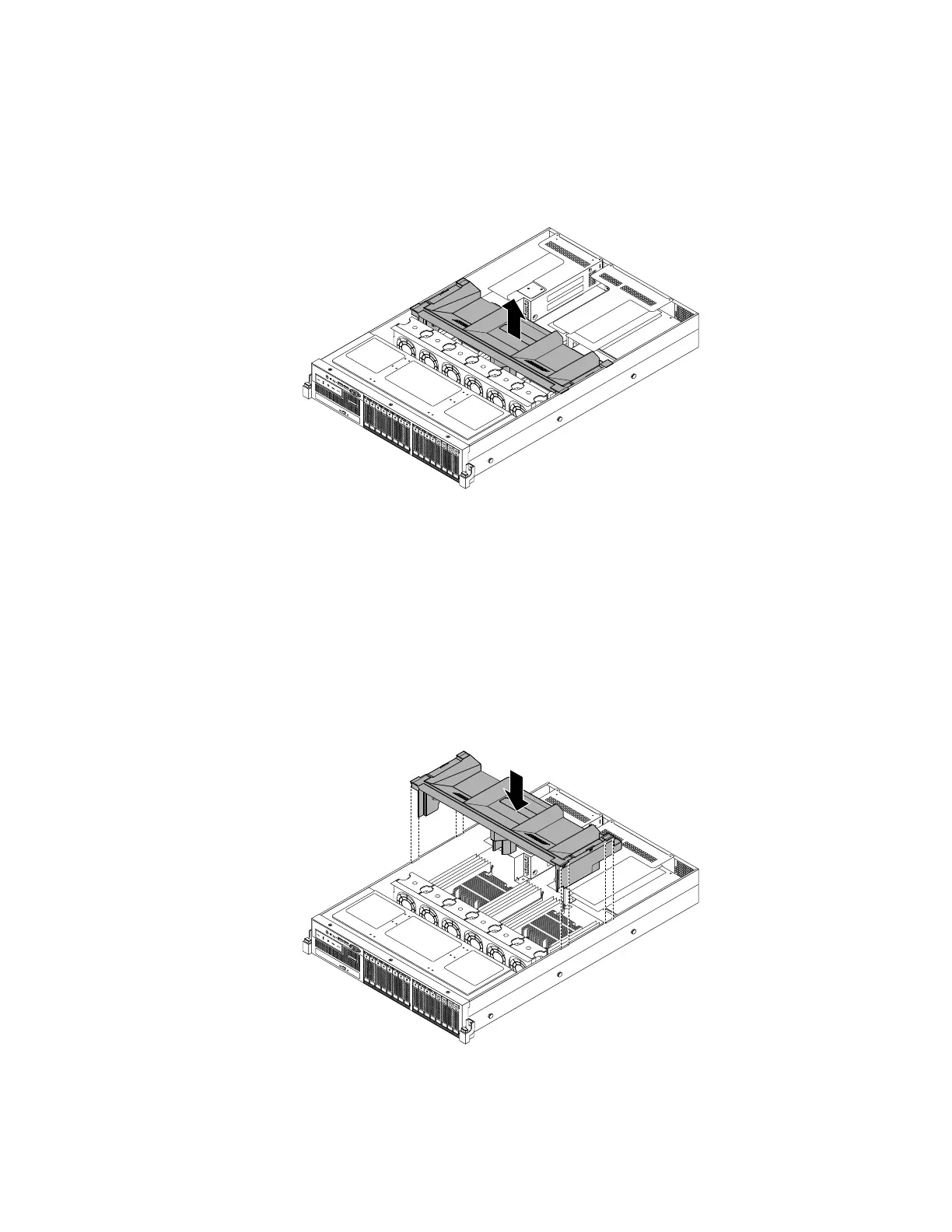

Figure42.Removingthecoolingshroud
5.Toreinstallthecoolingshroud,ensurethatallcomponentshavebeenreassembledcorrectlyandthat
notoolsorloosescrewsareleftinsideyourserver;andalsoensurethatallcablesinsidetheserver
havebeenproperlyroutedsothattheywillnotinterferewithinstallingthecoolingshroud.Notethe
orientationofthecoolingshroudandthenplaceitabovetheserversothatthetabsonbothsidesofthe
coolingshroudarealignedwiththecorrespondingholesorgapsinbothsidesofthechassis.Then,
lowerthecoolingshroudintothechassisuntilitsnapsintoposition.
Note:Ifnecessary,gentlypressthecoolingshroudonbothsidessothatthetabsonthecoolingshroud
completelyengagewithbothsidesofthechassis.
Figure43.Installingthecoolingshroud
6.Goto“Completingthepartsreplacement”onpage184.
Chapter6.Installing,removing,orreplacinghardware83
