8.Removethetwoscrewsthatsecuretheleftcageandthenslidetheleftcageoutofthefrontof
thechassis.

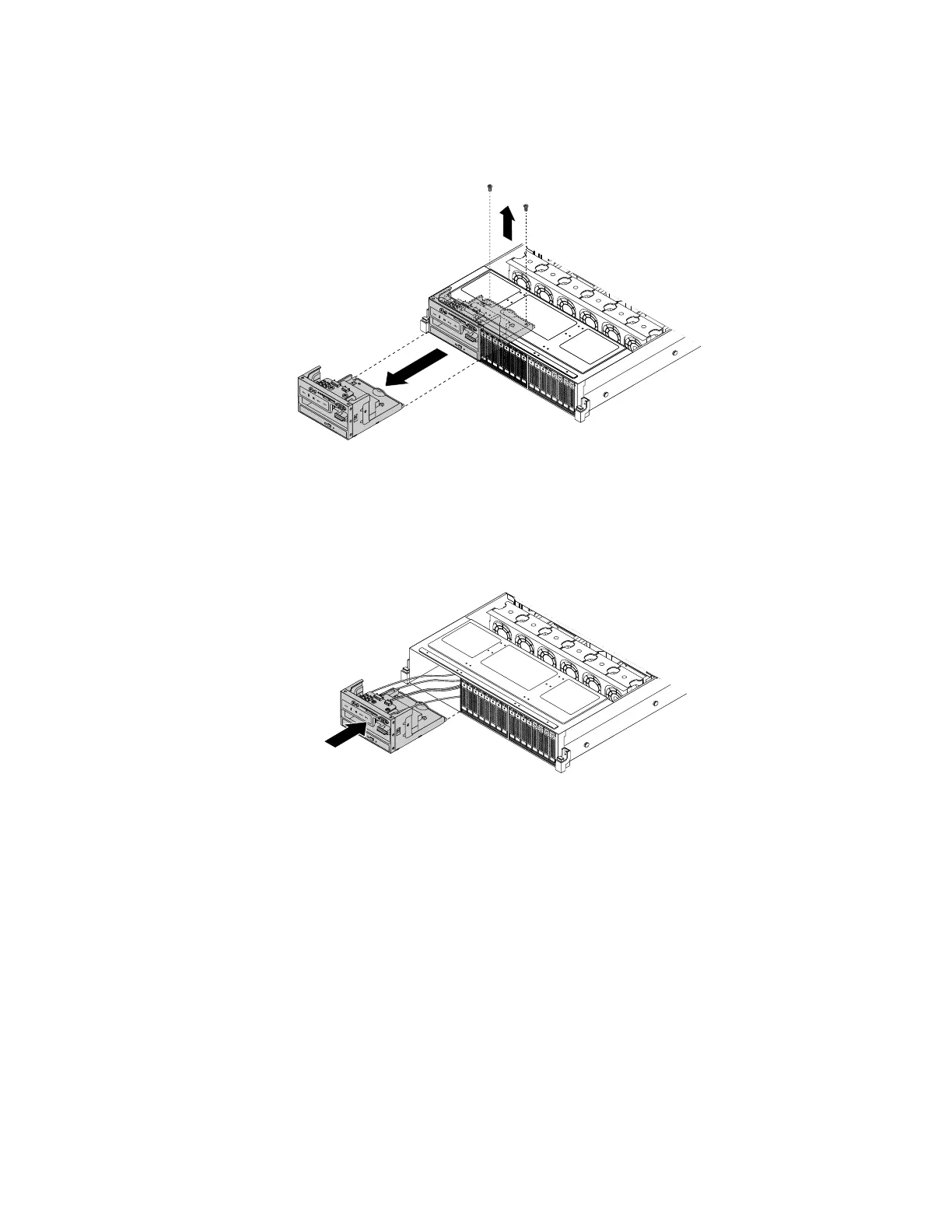

Figure44.Removingtheleftcage
9.Toreinstalltheleftcage,carefullyroutethecablesfromtheleftcagethroughtheleftcageholeinthe
frontandthenslidetheleftcageintothechassisuntilitsnapsintoposition.
Figure45.Slidingtheleftcageintothechassis
Chapter6.Installing,removing,orreplacinghardware85
