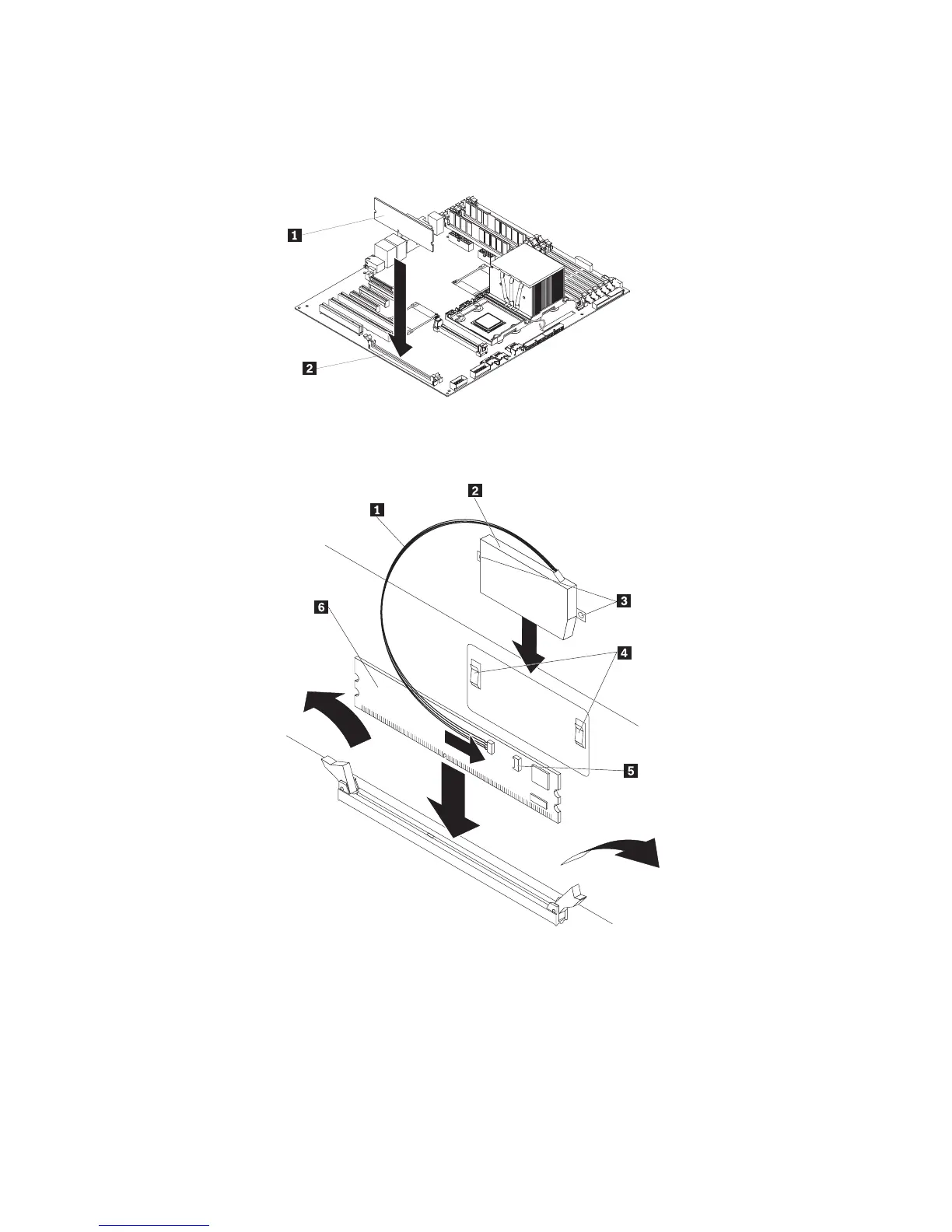

6. Turn the ServeRAID-8k adapter 1 so that the ServeRAID-8k adapter keys
align correctly with the connector2.
Attention: Incomplete insertion might cause damage to the system board or
the ServeRAID-8k adapter.
7. Press the ServeRAID-8k adapter firmly into the connector.
8. Slide the battery pack mounting tabs into the battery pack mounting clips on
the chassis wall.
1 Battery cable 4 Battery mounting clips
2 Battery 5 Battery cable connector
3 Battery mounting tabs 6 RAID controller
9. Plug the battery pack cable into the battery cable connector on the
ServeRAID-8k adapter.
52 ThinkServer TD100 and TD100x Types 4203, 4204, 4205, 4206, 6398, 6399, 6419, and 6429: User Guide
