10. If you are installing the ServeRAID-8k adapter into a simple-swap SATA model,
make the following cabling changes to enable RAID level-5 support:
a. Disconnect the signal cable from the Simple-swap SATA backplate
connector on the system board and connect it to the Hot-swap SAS/SATA
1 connector on the system board. See “System-board internal connectors”
on page 16 for the location of these connectors on the system board.

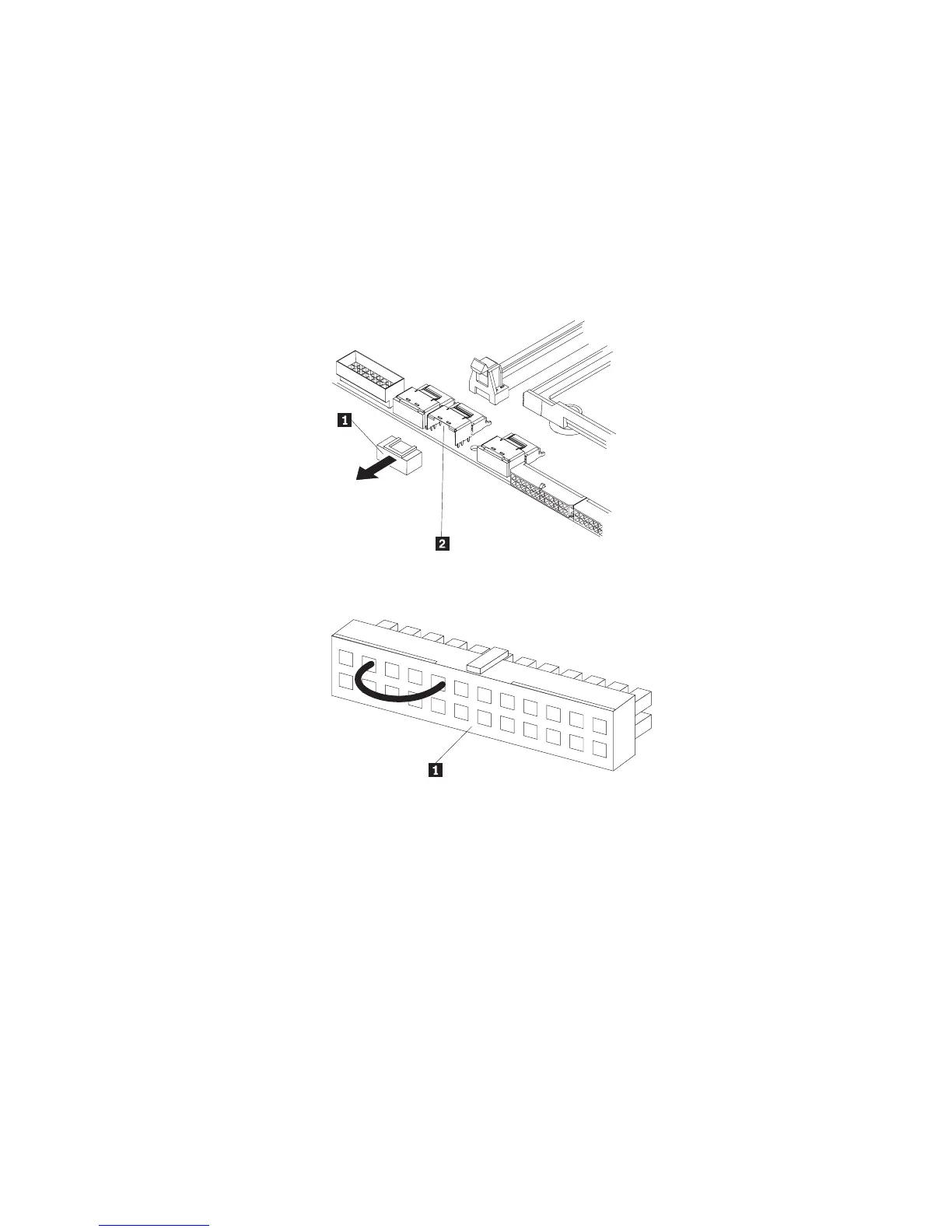

Note:
Remove the dust shield 1 (if one is present) from the Hot-swap
SAS/SATA 1 signal connector 2on the system board before installing the
signal cable. Carefully grasp the dust shield and pull it out of the signal
connector.
b. Connect the RAID level-5 enabler plug (that came with the system)1 to
the SAS/SATA backplane 1 connector on the system board.
1
12
13
24
Chapter 2. Installing optional devices 53
