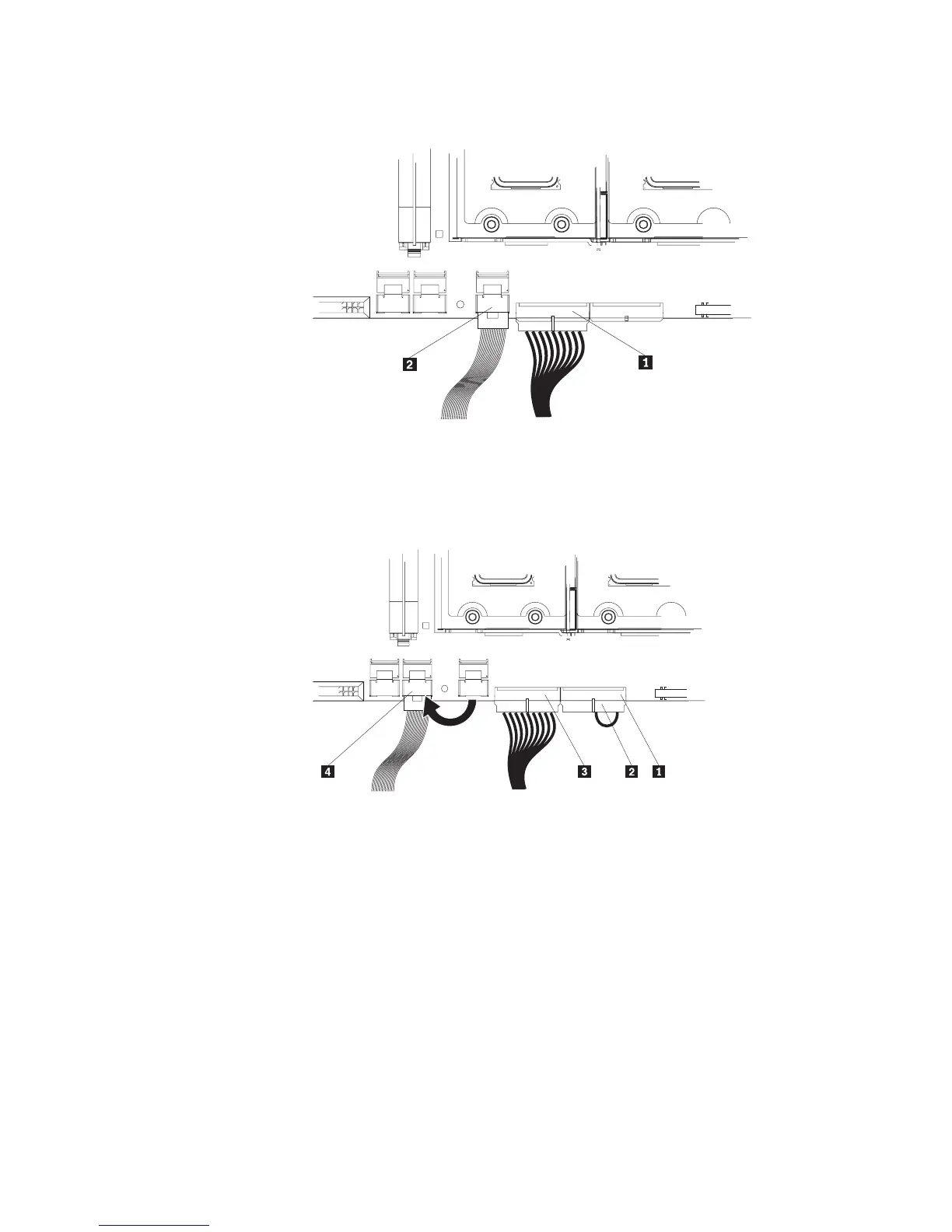

The following illustration shows how the simple-swap SATA model is cabled
when it is shipped.
1 SAS/SATA backplane 2
2 Simple-swap SATA backplate
The following illustration shows how the cables must be connected when
you install the ServeRAID-8k Controller into the simple-swap SATA model.
1 SAS/SATA backplane 1 connector
2 RAID level-5 enabler plug
3 SAS/SATA backplane 2 connector
4 Hot-swap SAS/SATA 1 cable
11. If you have other options to install or remove, do so now.
12. Replace the side cover (see “Reinstalling the side cover” on page 57). Go to
“Completing the installation” on page 55.
54 ThinkServer TD100 and TD100x Types 4203, 4204, 4205, 4206, 6398, 6399, 6419, and 6429: User Guide
