6. Place a clean soft cloth, and then lay down the device with the back cover facing up.
7. Remove the stand with base. See “Remove the stand with base” on page 16.
8. Remove the back cover. See “Remove the back cover” on page 20.
9. Remove the power lens. See “Remove the power lens” on page 21.
10. Remove the power button board. See “Remove the power button board” on page 22.
11. Remove the shielding bracket with cover. See “Remove the shielding bracket with cover” on page 23.
12. Remove the power button cable. See “Remove the power button cable” on page 25.
13. Remove the P sensor cable. See “Remove the P sensor cable” on page 27.
14. Remove the heat sink. See “Remove the heat sink” on page 18.
15. Remove the system board. See “Remove the system board” on page 30.

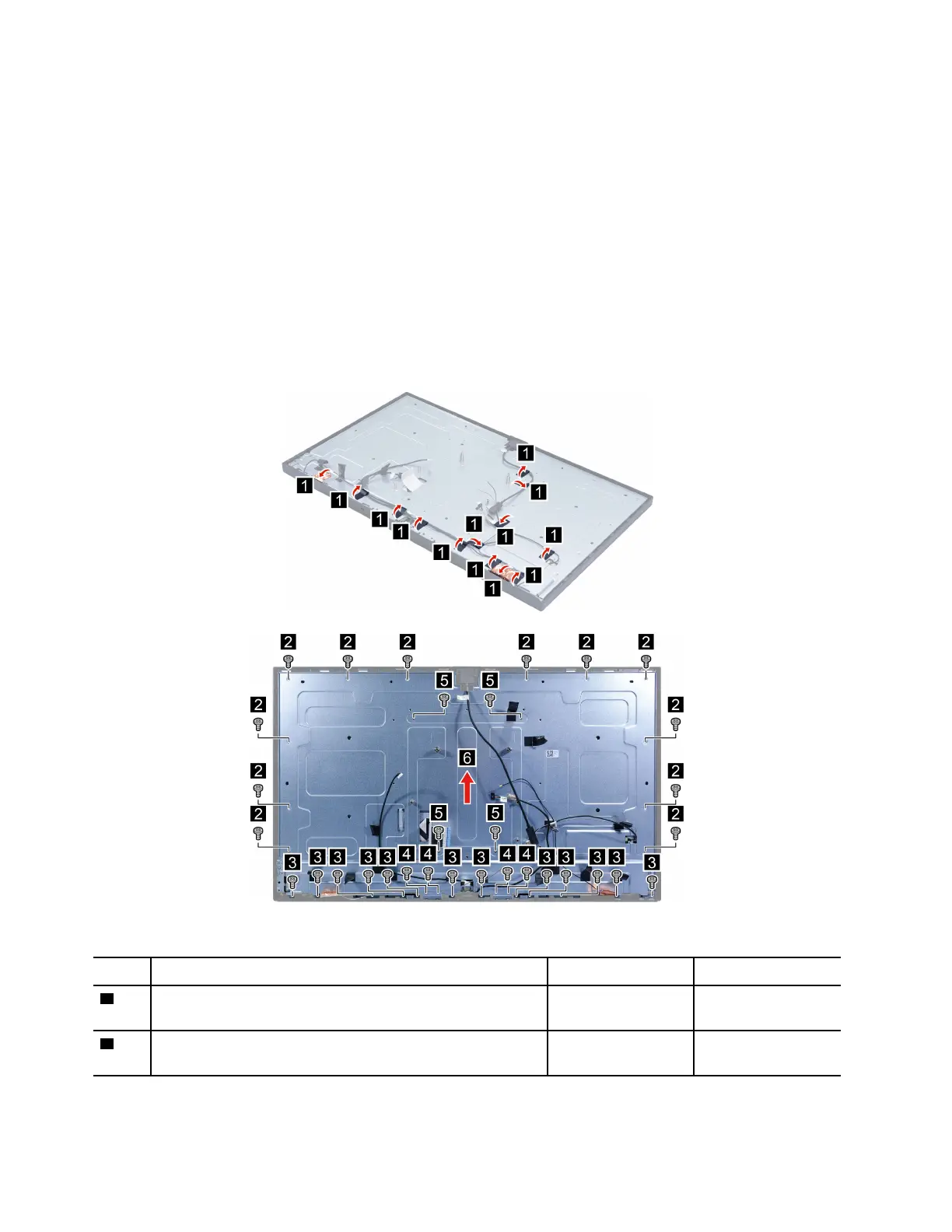

Removal steps
Attention: Use the screws provided by Lenovo to avoid any unpredictable damage to your device.
Step Screw (quantity)
Color
Torque
2
M3 × 4.5 mm, flat-head (12) Silver
0.18±0.05 Nm
(1.8±0.5 kgf-cm)
3
M2 × 4.5 mm, flat-head (12) Black 0.18±0.05 Nm
(1.8±0.5 kgf-cm)
32 ThinkSmart View Plus Hardware Maintenance Manual
