Lenovo ThinkSmart View Plus Hardware Maintenance Manual

Step Screw (quantity)
Color
Torque
4
M2 × 3 mm, flat-head (4) Silver
0.18±0.05 Nm
(1.8±0.5 kgf-cm)
5
M3 × 3.5 mm, flat-head (4) Black 0.18±0.05 Nm
(1.8±0.5 kgf-cm)

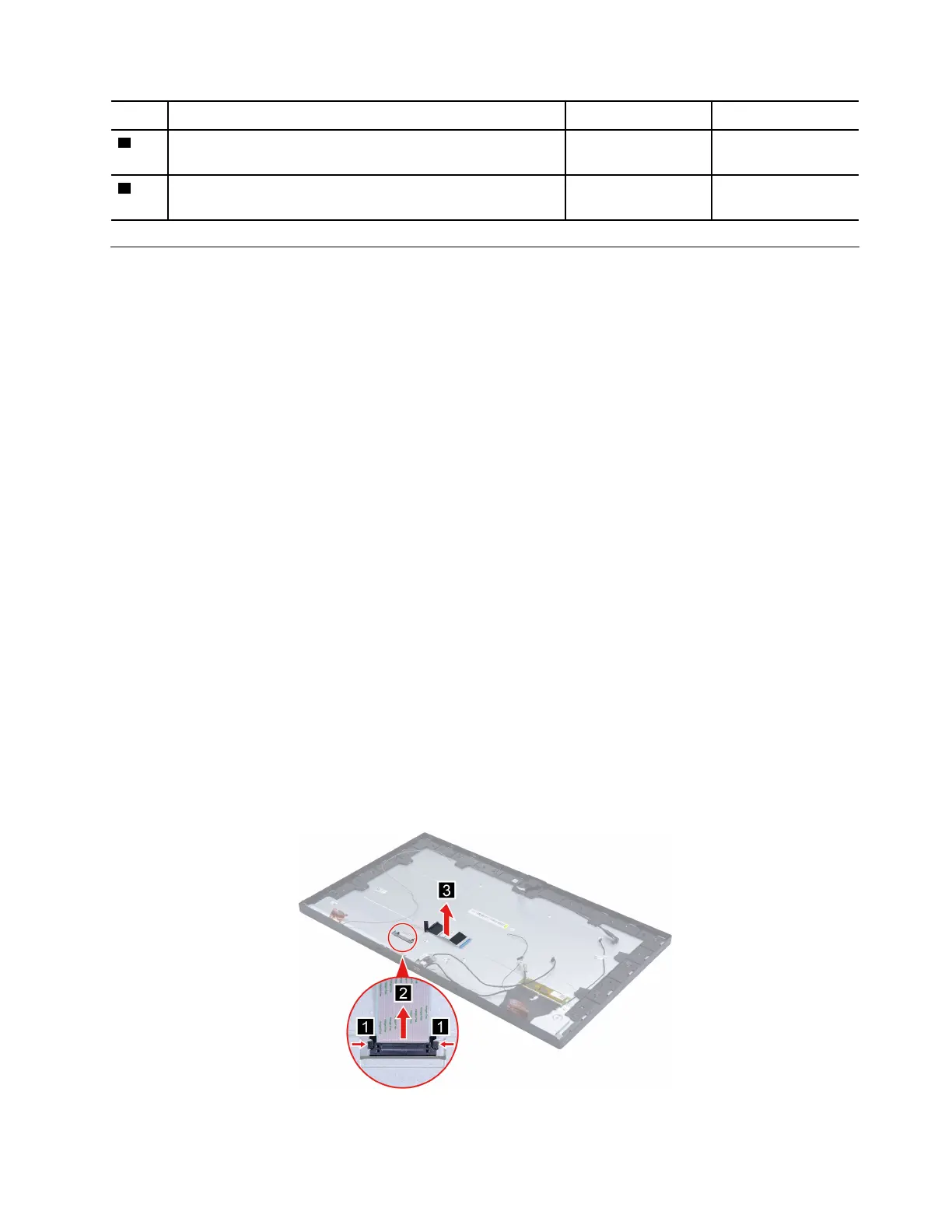

Remove the LVDS cable
Prerequisite
Turn off ThinkSmart View Plus and wait several minutes until it is cool.
For access, do the following:
1. Remove the cable tie. See “Remove the cable tie” on page 14.
2. Remove the camera module. See “Remove the camera module” on page 15.
3. Remove the Soundbar. See “Remove the Soundbar” on page 15.
4. Remove the Stylus Pen. See “Remove the Stylus Pen” on page 16.
5. Disconnect the power cord from electrical outlet and disconnect all the cables from the device.
6. Place a clean soft cloth, and then lay down the device with the back cover facing up.
7. Remove the stand with base. See “Remove the stand with base” on page 16.
8. Remove the back cover. See “Remove the back cover” on page 20.
9. Remove the power lens. See “Remove the power lens” on page 21.
10. Remove the power button board. See “Remove the power button board” on page 22.
11. Remove the shielding bracket with cover. See “Remove the shielding bracket with cover” on page 23.
12. Remove the power button cable. See “Remove the power button cable” on page 25.
13. Remove the P sensor cable. See “Remove the P sensor cable” on page 27.
14. Remove the heat sink. See “Remove the heat sink” on page 18.
15. Remove the system board. See “Remove the system board” on page 30.
16. Remove the back bracket. See “Remove the back bracket” on page 31.
Removal step
Chapter 3. Hardware removal and installation 33
