16i + 8i RAID adapter

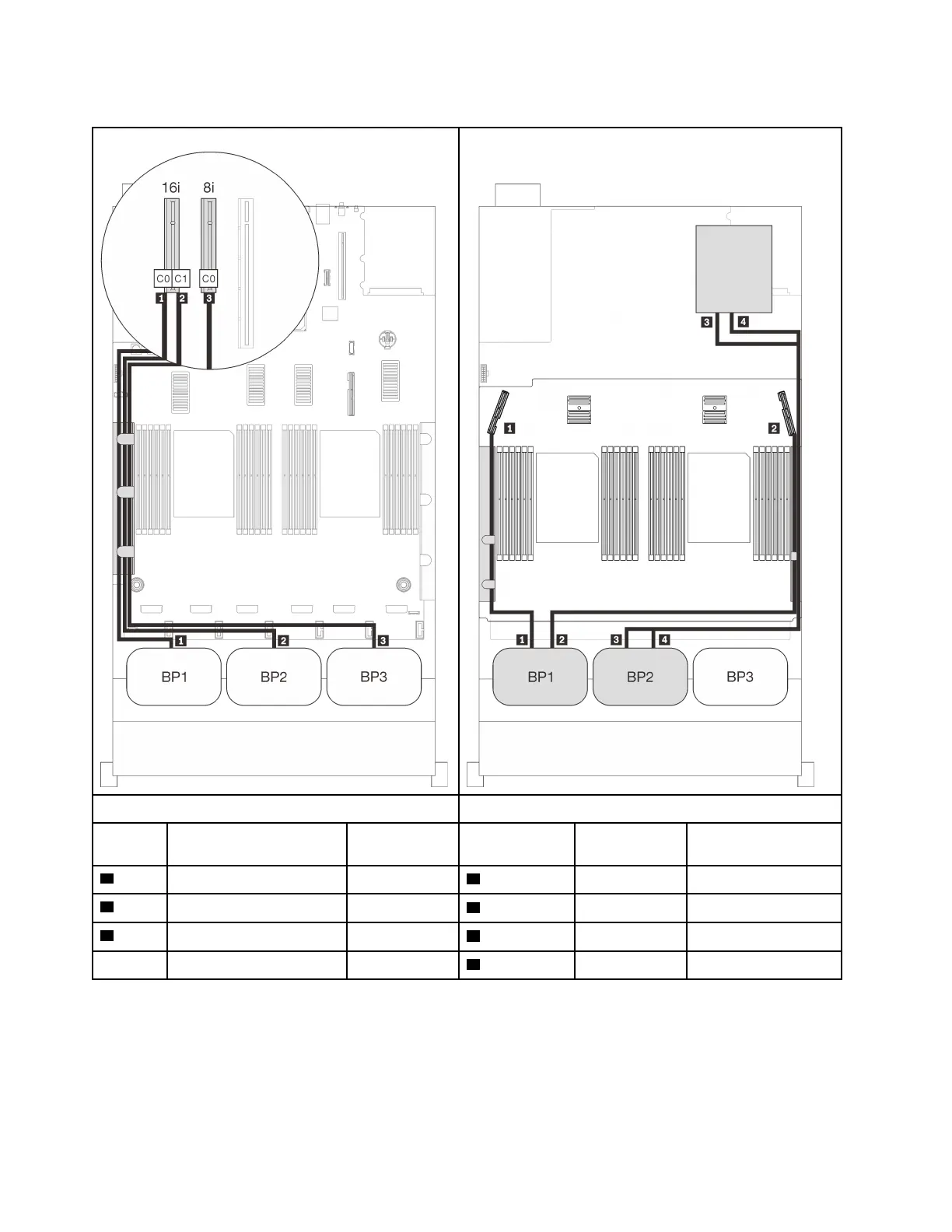

SAS/SATA cable routing PCIe cable routing
Length
To
NVMe
connector
Length
To
1
665 mm
C0 (16i)
1 0-1, 2-3 530 mm
PCIe 3 (tray)
2
860 mm
C1 (16i)
2 4-5, 6-7 670 mm
PCIe 6 (tray)
3
1000 mm
C0 (8i)
3 0-1, 2-3 1100 mm
C0, C1 (Slot 5)
4 4-5, 6-7 1100 mm
C0, C1 (Slot 6)
