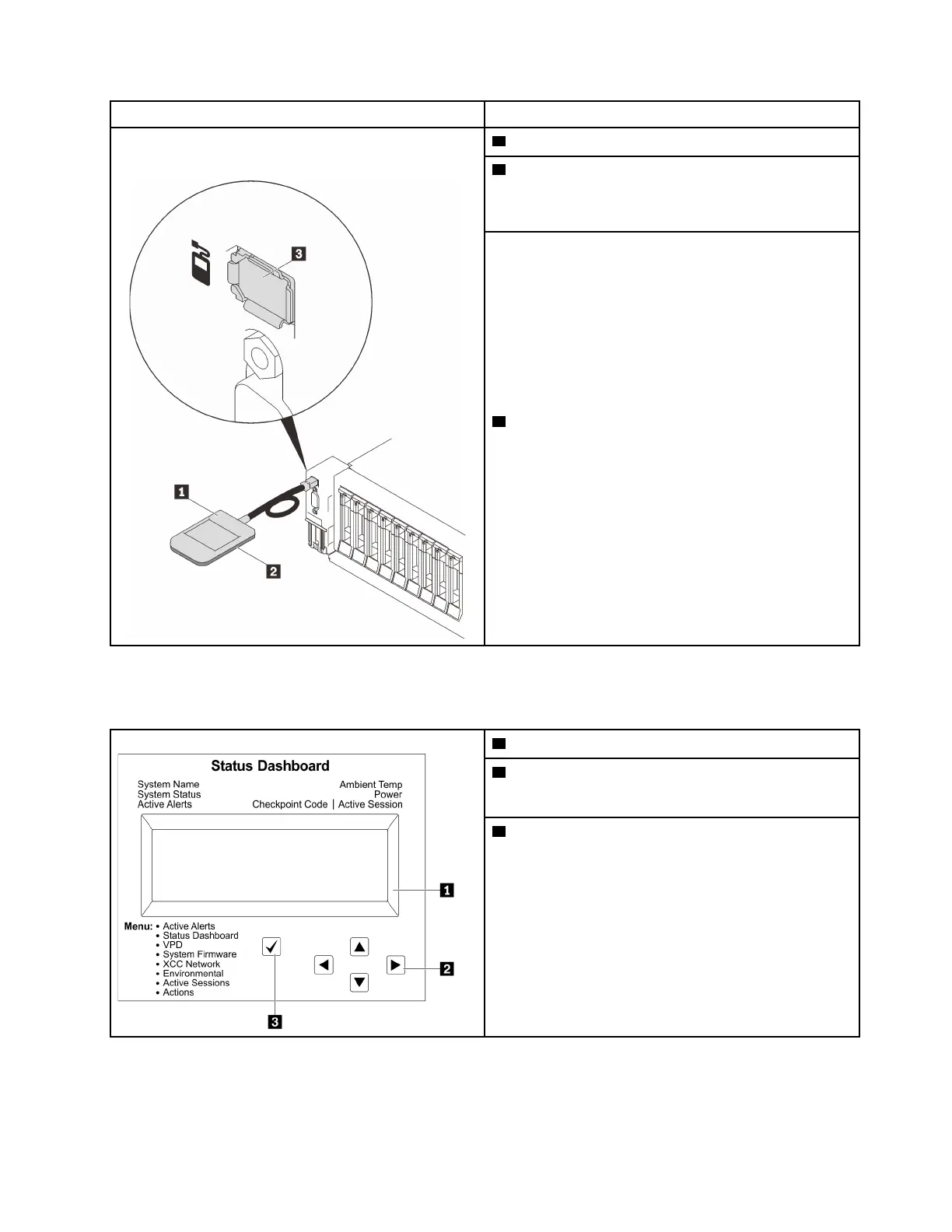

Location Callouts
The external LCD diagnostics handset is connected to the
server with an external cable.
1 External LCD diagnostics handset
2 Magnetic bottom
With this component, the diagnostic handset can be
attached to the top or side of the rack with hands spared
for service tasks.
3 External diagnostics connector
This connector is located on the front of the server, and is
used to connect an external LCD diagnostics handset.
Display panel overview
The diagnostics device consists of an LCD display and 5 navigation buttons.
1 LCD display
2 Scroll buttons (up/down/left/right)
Press the scroll buttons to locate and select system
information.
3 Select button
Press the select button to select from the options in the
menu.
Option flow diagram
Navigate through the options with the scroll keys.
Chapter 5. Problem determination 223
